Name: IDEC Ø22 TW Series Pushbutton Switch, Medium
Brand: IDEC
SKU: ABW301B
Price: 11.53 USD

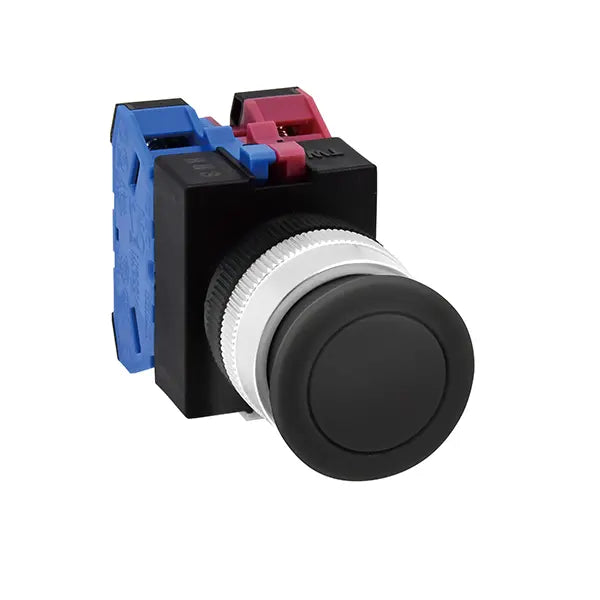

IDEC Ø22 TW Series Pushbutton Switch, Medium

VendorIDEC

Description

IDEC A — Ø22 TW Series Pushbutton Switch, Medium, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Type	Protection Rating	Contact Configuration	Button Shape	Terminal Type	Button Color	Operation	Terminal Screw	Storage Temperature (℃)	Operating Ambient Temperature (℃)	Mounting Hole Diameter (Ømm)	Operating Ambient Humidity
ABW301B	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW301G	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW301S	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW301W	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW301Y	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW302B	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW302G	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW302R	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW302S	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW302W	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW302Y	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW304R	Non-Illuminated	IP65	4b	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW304Y	Non-Illuminated	IP65	4b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW310S	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW310W	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW310Y	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW311B	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW311G	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW311S	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW311W	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW311Y	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW320B	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW320G	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW320R	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW320S	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW320W	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW320Y	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW322B	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW322G	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW322R	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW322S	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW322W	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW322Y	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW330B	Non-Illuminated	IP65	3a	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW331R	Non-Illuminated	IP65	3a1b	Mushroom (Medium)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW331Y	Non-Illuminated	IP65	3a1b	Mushroom (Medium)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
ABW340B	Non-Illuminated	IP65	4a	Mushroom (Medium)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW301B	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW301G	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW301R	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW301W	Non-Illuminated	IP65	1b	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW302B	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW302G	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW302R	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW302S	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW302W	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW302Y	Non-Illuminated	IP65	2b	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW310B	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW310G	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW310R	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW310S	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW310W	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW310Y	Non-Illuminated	IP65	1a	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW311B	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW311G	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW311R	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW311S	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW311W	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW311Y	Non-Illuminated	IP65	1a1b	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW320B	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW320G	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW320R	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW320S	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW320W	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW320Y	Non-Illuminated	IP65	2a	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW322B	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW322G	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW322R	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW322S	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW322W	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW322Y	Non-Illuminated	IP65	2a2b	Mushroom (Medium)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)
AOW340G	Non-Illuminated	IP65	4a	Mushroom (Medium)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~50 (no freezing)	22	45~85%RH (no condensation)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
