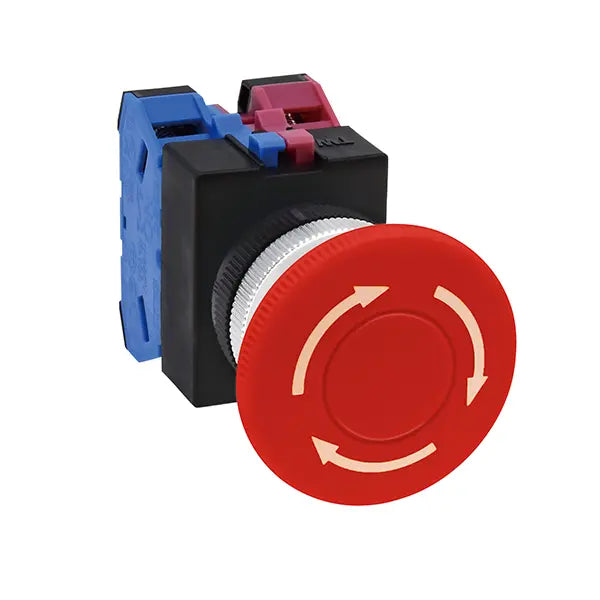

IDEC Ø22 TW Series Pushbutton Switch, Large, Push-Lock Turn-Reset, AVW4 - AVW401R-MAU

Description

IDEC AVW4 — Ø22 TW Series Pushbutton Switch, Large, Push-Lock Turn-Reset, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

  • Genuine IDEC control and signaling device
  • Select by mounting hole size, shape, color, contacts and LED voltage
  • Full range of guards, nameplates and replacement parts

Specifications

Part No. Type Protection Rating Contact Configuration Button Shape Terminal Type Button Color Operation Terminal Screw Storage Temperature (℃) Operating Ambient Temperature (℃) Mounting Hole Diameter (Ømm) Operating Ambient Humidity
AVW401R-MAU Non-Illuminated IP65 1b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW401Y Non-Illuminated IP65 1b Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW402R-MAU Non-Illuminated IP65 2b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW403R Non-Illuminated IP65 3b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW403Y Non-Illuminated IP65 3b Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW404R Non-Illuminated IP65 4b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW410Y Non-Illuminated IP65 1a Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW411R-MAU Non-Illuminated IP65 1a1b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW411Y Non-Illuminated IP65 1a1b Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW413R Non-Illuminated IP65 1a3b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW420R Non-Illuminated IP65 2a Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW420Y Non-Illuminated IP65 2a Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW421R Non-Illuminated IP65 2a1b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW422R Non-Illuminated IP65 2a2b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW422R-MAU Non-Illuminated IP65 2a2b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW422Y Non-Illuminated IP65 2a2b Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW430R Non-Illuminated IP65 3a Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW431R Non-Illuminated IP65 3a1b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
AVW440R Non-Illuminated IP65 4a Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

IDEC AVW4 — Ø22 TW Series Pushbutton Switch, Large, Push-Lock Turn-Reset, genuine IDEC product.OverviewIDEC control and signaling devices, including pushbuttons,... Read more

SKU: AVW401R-MAU

$31.53 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    IDEC AVW4 — Ø22 TW Series Pushbutton Switch, Large, Push-Lock Turn-Reset, genuine IDEC product.

    Overview

    IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

    Key Features

    • Genuine IDEC control and signaling device
    • Select by mounting hole size, shape, color, contacts and LED voltage
    • Full range of guards, nameplates and replacement parts

    Specifications

    Part No. Type Protection Rating Contact Configuration Button Shape Terminal Type Button Color Operation Terminal Screw Storage Temperature (℃) Operating Ambient Temperature (℃) Mounting Hole Diameter (Ømm) Operating Ambient Humidity
    AVW401R-MAU Non-Illuminated IP65 1b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW401Y Non-Illuminated IP65 1b Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW402R-MAU Non-Illuminated IP65 2b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW403R Non-Illuminated IP65 3b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW403Y Non-Illuminated IP65 3b Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW404R Non-Illuminated IP65 4b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW410Y Non-Illuminated IP65 1a Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW411R-MAU Non-Illuminated IP65 1a1b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW411Y Non-Illuminated IP65 1a1b Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW413R Non-Illuminated IP65 1a3b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW420R Non-Illuminated IP65 2a Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW420Y Non-Illuminated IP65 2a Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW421R Non-Illuminated IP65 2a1b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW422R Non-Illuminated IP65 2a2b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW422R-MAU Non-Illuminated IP65 2a2b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW422Y Non-Illuminated IP65 2a2b Mushroom (Large) Screw Terminal Yellow Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW430R Non-Illuminated IP65 3a Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW431R Non-Illuminated IP65 3a1b Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)
    AVW440R Non-Illuminated IP65 4a Mushroom (Large) Screw Terminal Red Push-Lock / Turn-Reset M3.5 -40~80 (no freezing) -25~50 (no freezing) 22 45~85%RH (no condensation)

    How to Order

    Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

    About IDEC

    IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

    Ordering & Shipping

    • Genuine IDEC product sourced through Korean distribution
    • Lead time varies by model; most items ship within 2-3 weeks
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
