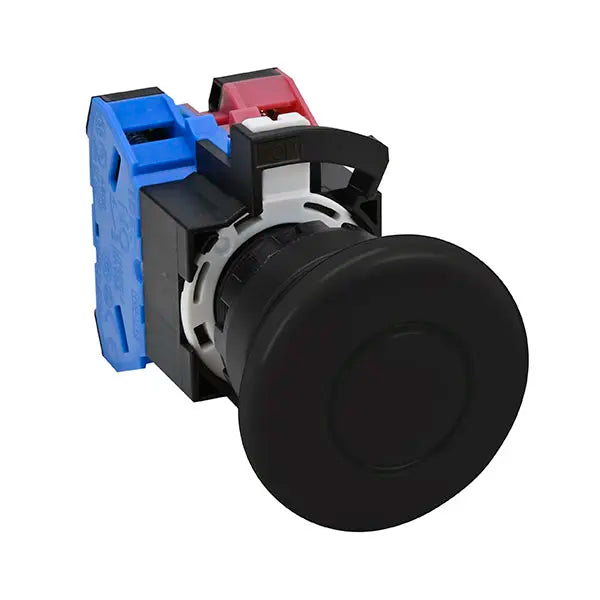

Name: IDEC Ø22 HW Series Pushbutton Switch, Large, HW1B - HW1B-A401B
Brand: IDEC
SKU: HW1B-A401B
Price: 19.99 USD

IDEC Ø22 HW Series Pushbutton Switch, Large, HW1B - HW1B-A401B

VendorIDEC

Description

IDEC HW1B — Ø22 HW Series Pushbutton Switch, Large, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Type	Protection Rating	Contact Configuration	Button Shape	Terminal Type	Button Color	Operation	Terminal Screw	Storage Temperature (℃)	Operating Ambient Temperature (℃)	Mounting Hole Diameter (Ømm)	Operating Ambient Humidity
HW1B-A401B	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A401G	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A401R	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A401S	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A401W	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A401Y	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A402B	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A402G	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A402R	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A402S	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A402W	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A402Y	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A403R	Non-Illuminated	IP65	3b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A410B	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A410G	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A410R	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A410S	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A410W	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A410Y	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A411B	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A411G	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A411R	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A411S	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A411W	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A411Y	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A420B	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A420G	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A420R	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A420S	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A420W	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A420Y	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A422B	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A422G	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A422R	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A422S	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A422W	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A422Y	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M401B	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M401S	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M401W	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M401Y	Non-Illuminated	IP65	1b	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M402B	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M402G	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M402R	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M402S	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M402W	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M402Y	Non-Illuminated	IP65	2b	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M410B	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M410S	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M410W	Non-Illuminated	IP65	1a	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M411B	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M411R	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M411S	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M411W	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M411Y	Non-Illuminated	IP65	1a1b	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M420B	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M420G	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M420R	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M420R-MAU	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M420S	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M420W	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M420Y	Non-Illuminated	IP65	2a	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M422B	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M422G	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M422R	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M422S	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M422W	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M422Y	Non-Illuminated	IP65	2a2b	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M440Y	Non-Illuminated	IP65	4a	Mushroom (Large)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request

Product form

IDEC HW1B — Ø22 HW Series Pushbutton Switch, Large, genuine IDEC product.OverviewIDEC control and signaling devices, including pushbuttons, illuminated pushbuttons,... Read more
