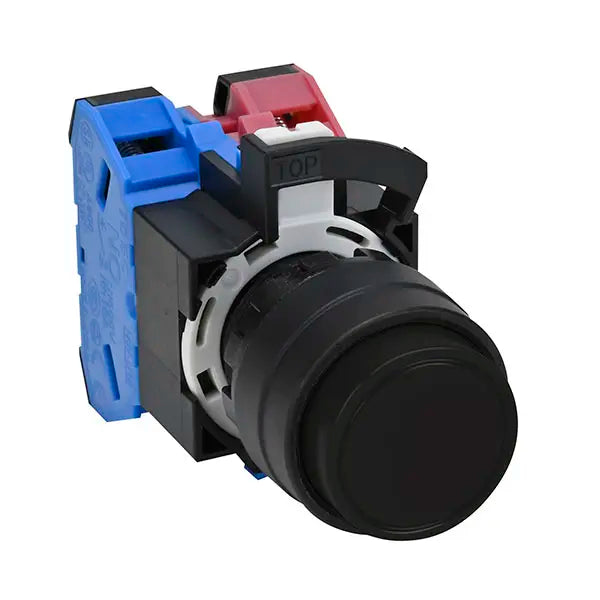

Name: IDEC Ø22 HW Series Pushbutton Switch, Extended, HW1B - HW1B-A201B
Brand: IDEC
SKU: HW1B-A201B
Price: 16.15 USD

IDEC Ø22 HW Series Pushbutton Switch, Extended, HW1B - HW1B-A201B

VendorIDEC

Description

IDEC HW1B — Ø22 HW Series Pushbutton Switch, Extended, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Type	Protection Rating	Contact Configuration	Button Shape	Terminal Type	Button Color	Operation	Terminal Screw	Storage Temperature (℃)	Operating Ambient Temperature (℃)	Mounting Hole Diameter (Ømm)	Operating Ambient Humidity
HW1B-A201B	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A201G	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A201R	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A201W	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A201Y	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A202B	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A202G	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A202R	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A202S	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A202W	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A202Y	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A203R	Non-Illuminated	IP65	3b	Round (Extended)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A210B	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A210G	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A210R	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A210S	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A210W	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A210Y	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A211B	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A211G	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A211R	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A211S	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A211W	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A211Y	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A220B	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A220G	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A220R	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A220S	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A220W	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A220Y	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A222B	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Black	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A222G	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Green	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A222R	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Red	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A222S	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Blue	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A222W	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	White	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-A222Y	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Yellow	Maintained	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M201B	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M201G	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M201R	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M201S	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M201W	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M201Y	Non-Illuminated	IP65	1b	Round (Extended)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M202B	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M202G	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M202R	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M202S	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M202W	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M202Y	Non-Illuminated	IP65	2b	Round (Extended)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M210G	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M210S	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M210W	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M210Y	Non-Illuminated	IP65	1a	Round (Extended)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M211B	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M211S	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M211W	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M211Y	Non-Illuminated	IP65	1a1b	Round (Extended)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M212B	Non-Illuminated	IP65	1a2b	Round (Extended)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M212R	Non-Illuminated	IP65	1a2b	Round (Extended)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M212S	Non-Illuminated	IP65	1a2b	Round (Extended)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M220B	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M220G	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M220R	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M220S	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M220W	Non-Illuminated	IP65	2a	Round (Extended)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M221B	Non-Illuminated	IP65	2a1b	Round (Extended)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M221G	Non-Illuminated	IP65	2a1b	Round (Extended)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M222B	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M222G	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Green	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M222R	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M222S	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Blue	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M222W	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	White	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M222Y	Non-Illuminated	IP65	2a2b	Round (Extended)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M230B	Non-Illuminated	IP65	3a	Round (Extended)	Screw Terminal	Black	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M240R	Non-Illuminated	IP65	4a	Round (Extended)	Screw Terminal	Red	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)
HW1B-M240Y	Non-Illuminated	IP65	4a	Round (Extended)	Screw Terminal	Yellow	Momentary	M3.5	-40~80 (no freezing)	-25~60 (no freezing)	22	45~85%RH (no condensation)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
