IDEC HS5L Solenoid Interlock Safety Switch

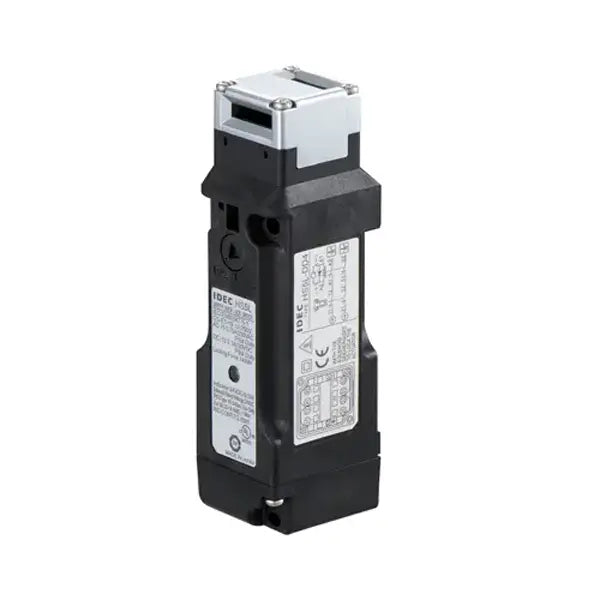

  • IDEC HS5L-DD44LM-G Photo on request Genuine IDEC part

Description

IDEC HS5L — HS5L Solenoid Interlock Safety Switch, genuine IDEC product.

Overview

IDEC safety components, including interlock switches, solenoid-locking safety switches, safety relay modules and intrinsically safe relay barriers for machine guarding.

Key Features

  • Genuine IDEC safety product
  • Designed for machine safety applications
  • Select by actuator, contacts, solenoid voltage and cable/connector type

Specifications

Part No. Weight (g) Type Protection Rating Insulation Voltage (V) With/Without Pilot Light Function Operating Force Relative Humidity Operating Ambient Temperature (℃)
HS5L-DD44LM-G Approx. 300 4-contact, redundant safety, with rear lock-release pushbutton IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-DD44M-G Approx. 300 4-contact, redundant safety type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VA44LM-G Approx. 300 4-contact, with rear lock-release pushbutton IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VA44M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VA7Y4M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VB44LM-G Approx. 300 4-contact, with rear lock-release pushbutton IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VB44M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VB7Y4M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VC44LM-G Approx. 300 4-contact, with rear lock-release pushbutton IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VC44M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VC7Y4M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VD44LM-G Approx. 300 4-contact, with rear lock-release pushbutton IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VD44M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VD7Y4M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VF44M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VF7Y4M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VG44M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-VG7Y4M-G Approx. 300 4-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-XD44M-G Approx. 300 2-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-XD7Y4M-G Approx. 300 2-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-XF7Y4M-G Approx. 300 2-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-XG7Y4M-G Approx. 300 2-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-XH44M-G Approx. 300 2-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)
HS5L-XH7Y4M-G Approx. 300 2-contact type IP67(IEC60529)Type 4X Indoor Use Only 250 (LED, solenoid-ground: 30) Yes (Green) With Solenoid, With Manual Unlock Key Direct Opening: 120N min. 20~95%RH (no condensation) -20~55 (no freezing)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

IDEC HS5L — HS5L Solenoid Interlock Safety Switch, genuine IDEC product.OverviewIDEC safety components, including interlock switches, solenoid-locking safety switches, safety... Read more

SKU: HS5L-DD44LM-G

$246.92 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
