Description

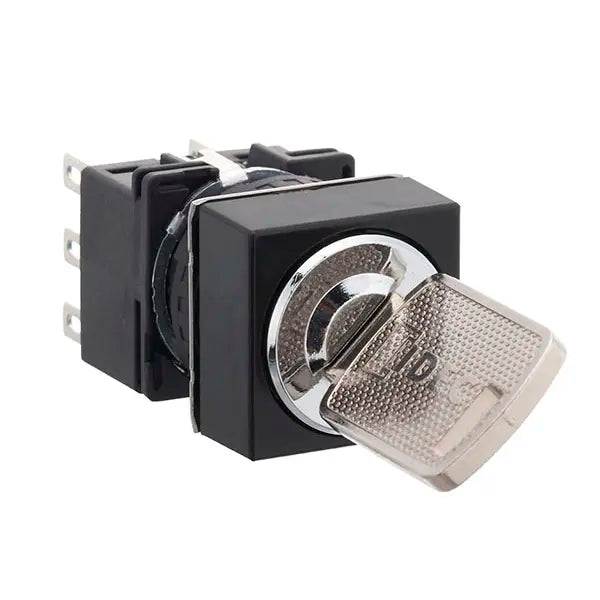

IDEC LB — Ø16 LB Series Key Selector Switch, genuine IDEC product.
Overview
IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.
Key Features
- Genuine IDEC control and signaling device
- Select by mounting hole size, shape, color, contacts and LED voltage
- Full range of guards, nameplates and replacement parts
Specifications
| Part No. |
Protection Rating |
Contact Configuration |
Terminal Type |
Notch Angle (°) |
Number of Notches |
Operation |
Body Shape |
Mounting Hole Diameter (Ømm) |
Contact Material |
Key Position Fixed Type |
Operator Shape |
Operation |
| LB1K-2ST1A-1H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
All Excluded |
Key Operated |
Selector Switch |
| LB1K-2ST6B-1H |
IP65 |
2c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB1K-2ST6B-2H |
IP65 |
2c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB1K-2ST6B-3H |
IP65 |
2c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB1K-2ST7B-1H |
IP65 |
3c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB1K-2ST7B-5H |
IP65 |
3c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB1K-2ST7B-6H |
IP65 |
3c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB2K-2ST1A-2H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
All Excluded |
Key Operated |
Selector Switch |
| LB2K-3ST2A-1H |
IP65 |
1c |
Solder/Tab Terminal Type |
45 |
3 |
Maintained |
Separate Type |
16 |
Gold Contact |
All Excluded |
Key Operated |
Selector Switch |
| LB3K-2ST1B-1H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-2ST1B-2H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-2ST1B-3H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-2ST1B-4H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-2ST1B-5H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-2ST1B-6H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-2ST1C-1H |
IP65 |
1c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Right |
Key Operated |
Selector Switch |
| LB3K-2ST2C-2H |
IP65 |
2c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Right |
Key Operated |
Selector Switch |
| LB3K-2ST6B-1H |
IP65 |
2c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-2ST6B-2H |
IP65 |
2c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-2ST6B-3H |
IP65 |
2c |
Solder/Tab Terminal Type |
90 |
2 |
Maintained |
Separate Type |
16 |
Silver Contact |
Key Removable: Left |
Key Operated |
Selector Switch |
| LB3K-3ST2A-1H |
IP65 |
2c |
Solder/Tab Terminal Type |
45 |
3 |
Maintained |
Separate Type |
16 |
Gold Contact |
All Excluded |
Key Operated |
Selector Switch |
| LB3K-3ST2D-5H |
IP65 |
2c |
Solder/Tab Terminal Type |
45 |
3 |
Maintained |
Separate Type |
16 |
Gold Contact |
Center |
Key Operated |
Selector Switch |
| LB3K-3ST2E-5H |
IP65 |
2c |
Solder/Tab Terminal Type |
45 |
3 |
Maintained |
Separate Type |
16 |
Gold Contact |
Key Removable: Left, Right |
Key Operated |
Selector Switch |
How to Order
Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About IDEC
IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.
Ordering & Shipping
- Genuine IDEC product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
