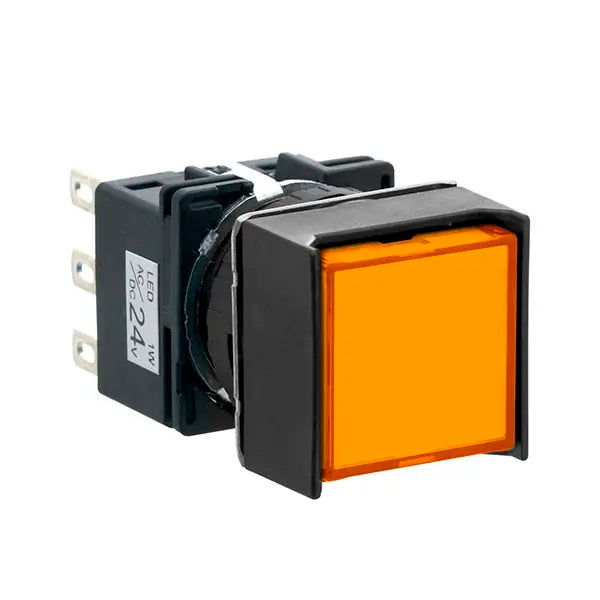

Name: IDEC Ø16 LB Series Illuminated Pushbutton, Square, LB2L (Part 1)
Brand: IDEC
SKU: LB2L-A1T11VWA
Price: 20.76 USD

IDEC Ø16 LB Series Illuminated Pushbutton, Square, LB2L (Part 1)

VendorIDEC

Description

IDEC LB2L — Ø16 LB Series Illuminated Pushbutton, Square, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Type	Type	Protection Rating	Contact Configuration	Button Shape	Terminal Type	Operation	Illumination Type	Body Shape	Mounting Hole Diameter (Ømm)	Contact Material	Rated Operational Voltage (V)
LB2L-A1T11VWA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T11VWG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T11VWR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T11VWS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T11WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T11WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T11WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T11WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T13VWA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T13VWG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T13VWR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T13VWS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T13WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T13WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T13WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T13WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T14VWA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T14VWG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T14VWR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T14VWS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T14WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T14WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T14WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T14WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T21VWA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T21VWG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T21VWR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T21VWS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T21WA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T21WG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T21WR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T21WS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-A1T23VWA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T23VWG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T23VWR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T23VWS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T23WA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T23WG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T23WR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T23WS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-A1T24VWA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T24VWG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T24VWR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T24VWS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T24WA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T24WG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T24WR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T24WS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-A1T51WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	DC5
LB2L-A1T51WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	DC5
LB2L-A1T51WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	DC5
LB2L-A1T51WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	DC5
LB2L-A1T53WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC12
LB2L-A1T53WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC12
LB2L-A1T53WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC12
LB2L-A1T53WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC12
LB2L-A1T54WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC24
LB2L-A1T54WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC24
LB2L-A1T54WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC24
LB2L-A1T54WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC24
LB2L-A1T61WA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	DC5
LB2L-A1T61WG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	DC5
LB2L-A1T61WR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	DC5
LB2L-A1T61WS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	DC5
LB2L-A1T63WA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC12
LB2L-A1T63WG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC12
LB2L-A1T63WR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC12
LB2L-A1T63WS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC12
LB2L-A1T64WA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC24
LB2L-A1T64WG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC24
LB2L-A1T64WR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC24
LB2L-A1T64WS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	Solder Terminal/Tab Terminal	Maintained	LED	Separate Type	16.2	Silver Contact	AC/DC24
LB2L-M1T11VWA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T11VWG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T11VWR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T11VWS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T11WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T11WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T11WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T11WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T13VWA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-M1T13VWG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-M1T13VWR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-M1T13VWS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-M1T13WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-M1T13WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-M1T13WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-M1T13WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC12
LB2L-M1T14VWA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-M1T14VWG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-M1T14VWR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-M1T14VWS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-M1T14WA	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-M1T14WG	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-M1T14WR	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-M1T14WS	Illuminated Pushbutton	Illuminated	IP65	1c	Square	Solder Terminal/Tab Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	AC/DC24
LB2L-M1T21VWA	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T21VWG	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T21VWR	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5
LB2L-M1T21VWS	Illuminated Pushbutton	Illuminated	IP65	2c	Square	PCB Terminal	Momentary	LED	Separate Type	16.2	Gold Contact	DC5

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
