IDEC safety components, including interlock switches, solenoid-locking safety switches, safety relay modules and intrinsically safe relay barriers for machine guarding.
| Part No. |
Weight (g) |
Protection Rating |
Contact Configuration |
Insulation Voltage (V) |
With/Without Pilot Light |
Operating Force |
Relative Humidity |
Operating Ambient Temperature (℃) |
| HS5LDD44LSMG |
Approx. 300 |
IP67(IEC60529)Type 4X Indoor Use Only |
Main Circuit: 1NC+1NC, 1NC+1NC |
250 (LED, solenoid-ground: 30) |
Yes (Green) |
Direct Opening: 120N min. |
20~95%RH (no condensation) |
-25~55 (no freezing) |
| HS5LDD44SMG |
Approx. 300 |
IP67(IEC60529)Type 4X Indoor Use Only |
Main Circuit: 1NC+1NC, 1NC+1NC |
250 (LED, solenoid-ground: 30) |
Yes (Green) |
Direct Opening: 120N min. |
20~95%RH (no condensation) |
-25~55 (no freezing) |
| HS5LVD44LSMG |
Approx. 300 |
IP67(IEC60529)Type 4X Indoor Use Only |
Door Monitor: 2NC, Lock Monitor: 2NC |
250 (LED, solenoid-ground: 30) |
Yes (Green) |
Direct Opening: 120N min. |
20~95%RH (no condensation) |
-25~55 (no freezing) |
| HS5LVD44SMG |
Approx. 300 |
IP67(IEC60529)Type 4X Indoor Use Only |
Door Monitor: 2NC, Lock Monitor: 2NC |
250 (LED, solenoid-ground: 30) |
Yes (Green) |
Direct Opening: 120N min. |
20~95%RH (no condensation) |
-25~55 (no freezing) |
| HS5LVD7Y4SMG |
Approx. 300 |
IP67(IEC60529)Type 4X Indoor Use Only |
Door Monitor: 2NC, Lock Monitor: 2NC |
250 (LED, solenoid-ground: 30) |
Yes (Green) |
Direct Opening: 120N min. |
20~95%RH (no condensation) |
-25~55 (no freezing) |

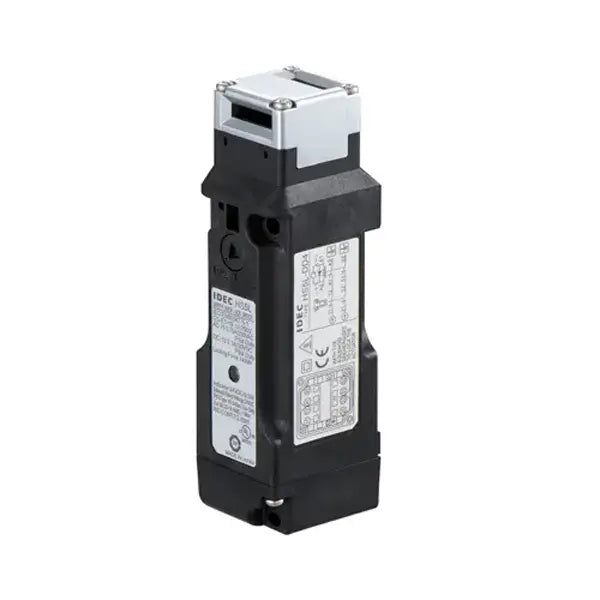

| HS5LVJ44MG |
Approx. 300 |
IP67(IEC60529)Type 4X Indoor Use Only |
Door Monitor: 1NC, Lock Monitor: 2NC, 1NO |
250 (LED, solenoid-ground: 30) |
Yes (Green) |
Direct Opening: 120N min. |
20~95%RH (no condensation) |
-25~55 (no freezing) |
| HS5LVJ7Y4MG |
Approx. 300 |
IP67(IEC60529)Type 4X Indoor Use Only |
Door Monitor: 1NC, Lock Monitor: 2NC, 1NO |
250 (LED, solenoid-ground: 30) |
Yes (Green) |
Direct Opening: 120N min. |
20~95%RH (no condensation) |
-25~55 (no freezing) |
Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.
