IDEC Q Series LED Pilot Light

Description

IDEC Q — Q Series LED Pilot Light, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

  • Genuine IDEC control and signaling device
  • Select by mounting hole size, shape, color, contacts and LED voltage
  • Full range of guards, nameplates and replacement parts

Specifications

Part No. Voltage Material (Body) Voltage (V) Protection Rating Illumination Method Storage Temperature (℃) LED Color Operating Ambient Temperature (℃) Mounting Hole Diameter (Ømm) Packing Material Lead Wire Terminal
Q10F5SXXHG12E DC12V Stainless Steel 316L or Anodized Aluminum DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 10 - UL1061(AWG24) Epoxy Resin Lead Wire
Q10F5SXXHG24AE DC24V Stainless Steel 316L or Anodized Aluminum AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 10 - UL1061(AWG24) Epoxy Resin Lead Wire
Q10F5SXXHO12E DC12V Stainless Steel 316L or Anodized Aluminum DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 10 - UL1061(AWG24) Epoxy Resin Lead Wire
Q10F5SXXHO24AE DC24V Stainless Steel 316L or Anodized Aluminum AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 10 - UL1061(AWG24) Epoxy Resin Lead Wire
Q10F5SXXHR12E DC12V Stainless Steel 316L or Anodized Aluminum DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 10 - UL1061(AWG24) Epoxy Resin Lead Wire
Q10F5SXXHR24AE DC24V Stainless Steel 316L or Anodized Aluminum AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 10 - UL1061(AWG24) Epoxy Resin Lead Wire
Q10F5SXXHY12E DC12V Stainless Steel 316L or Anodized Aluminum DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 10 - UL1061(AWG24) Epoxy Resin Lead Wire
Q10F5SXXHY24AE DC24V Stainless Steel 316L or Anodized Aluminum AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 10 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12F1CXXHG24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Green -30~65 (no condensation) 12 - UL1061(AWG24) Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q12F1CXXHO24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Orange -30~65 (no condensation) 12 - UL1061(AWG24) Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q12F1CXXHR24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Red -30~65 (no condensation) 12 - UL1061(AWG24) Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q12F1CXXHY24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Yellow -30~65 (no condensation) 12 - UL1061(AWG24) Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q12F5CXXHG12E DC12V Polycarbonate DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12F5CXXHG24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12F5CXXHO12E DC12V Polycarbonate DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12F5CXXHO24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12F5CXXHR12E DC12V Polycarbonate DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12F5CXXHR24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12F5CXXHY12E DC12V Polycarbonate DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12F5CXXHY24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12P5CXXHG12E DC12V Polycarbonate DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12P5CXXHG24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12P5CXXHO12E DC12V Polycarbonate DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12P5CXXHO24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12P5CXXHR12E DC12V Polycarbonate DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12P5CXXHR24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12P5CXXHY12E DC12V Polycarbonate DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q12P5CXXHY24AE DC24V Polycarbonate AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 12 - UL1061(AWG24) Epoxy Resin Lead Wire
Q16F1CXXHG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Green -30~65 (no condensation) 16 - AWG22 Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q16F1CXXHO24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Orange -30~65 (no condensation) 16 - AWG22 Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q16F1CXXHR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Red -30~65 (no condensation) 16 - AWG22 Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q16F1CXXHY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Yellow -30~65 (no condensation) 16 - AWG22 Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q16F5CXXHG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 16 - AWG22 Epoxy Resin Lead Wire
Q16F5CXXHO24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 16 - AWG22 Epoxy Resin Lead Wire
Q16F5CXXHR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 16 - AWG22 Epoxy Resin Lead Wire
Q16F5CXXHY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 16 - AWG22 Epoxy Resin Lead Wire
Q16P5CXXHG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 16 - AWG22 Epoxy Resin Lead Wire
Q16P5CXXHO24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 16 - AWG22 Epoxy Resin Lead Wire
Q16P5CXXHR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 16 - AWG22 Epoxy Resin Lead Wire
Q16P5CXXHY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 16 - AWG22 Epoxy Resin Lead Wire
Q22F1CXXSR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Red -30~65 (no condensation) 22 - AWG22 Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q22F1CXXSY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -30~65 (no condensation) High-Brightness Yellow -30~65 (no condensation) 22 - AWG22 Solder Terminal/Faston Terminal (W2.8 × 0.8t)
Q22F5CXXSG110E AC110V Polycarbonate Resin AC110 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q22F5CXXSG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q22F5CXXSR110E AC110V Polycarbonate Resin AC110 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q22F5CXXSR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q22F5CXXSY110E AC110V Polycarbonate Resin AC110 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q22F5CXXSY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q22P5CXXSG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q22P5CXXSR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q22P5CXXSY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 22 - AWG22 Epoxy Resin Lead Wire
Q6F5CXXHG12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6F5CXXHG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6F5CXXHO12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6F5CXXHO24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6F5CXXHR12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6F5CXXHR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6F5CXXHY12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6F5CXXHY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6P5CXXHG12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6P5CXXHG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6P5CXXHO12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6P5CXXHO24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6P5CXXHR12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6P5CXXHR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6P5CXXHY12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q6P5CXXHY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 6 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8F5CXXHG12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8F5CXXHG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8F5CXXHO12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8F5CXXHO24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8F5CXXHR12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8F5CXXHR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8F5CXXHY12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8F5CXXHY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8P5CXXHG12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8P5CXXHG24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Green -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8P5CXXHO12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8P5CXXHO24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Orange -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8P5CXXHR12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8P5CXXHR24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Red -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8P5CXXHY12E DC12V Polycarbonate Resin DC12 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire
Q8P5CXXHY24AE DC24V Polycarbonate Resin AC/DC24 IP67 Illuminated Type -40~85 (no condensation) High-Brightness Yellow -40~85 (no condensation) 8 Nitrile Rubber UL1061(AWG24) Epoxy Resin Lead Wire

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

IDEC Q — Q Series LED Pilot Light, genuine IDEC product.OverviewIDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector... Read more

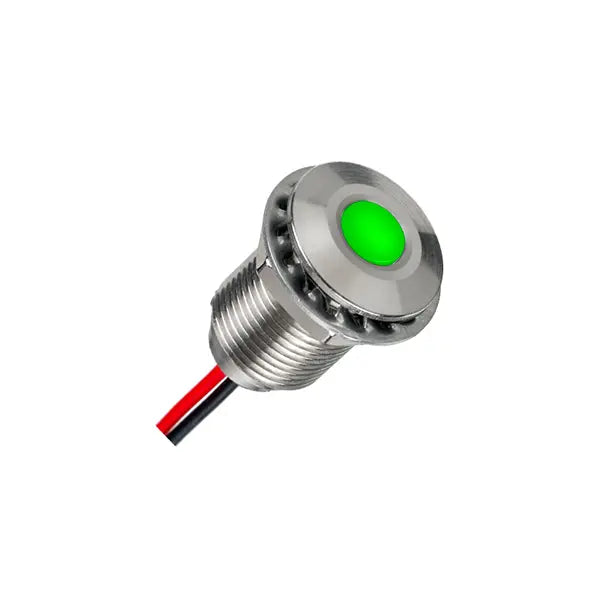

SKU: Q10F5SXXHG12E

$38.45 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
