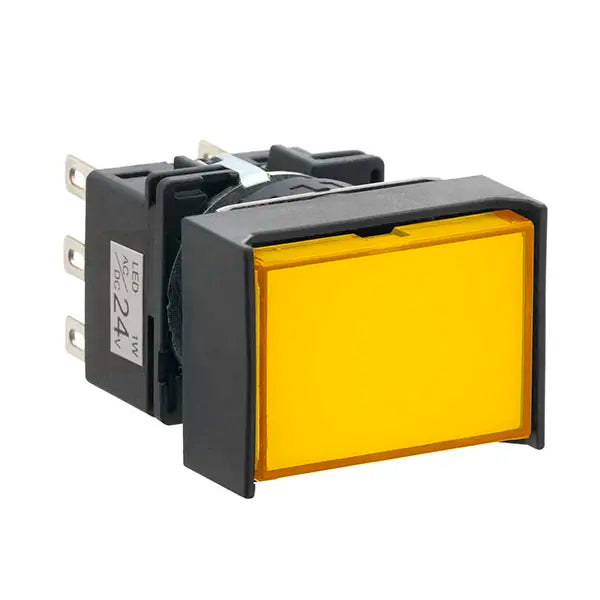

IDEC Ø16 LB Series Illuminated Pushbutton (Rectangular), LB3L (Part 2)

  • IDEC LB3L-A1T64Y Photo on request Genuine IDEC part

Description

IDEC LB3L — Ø16 LB Series Illuminated Pushbutton (Rectangular), genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

  • Genuine IDEC control and signaling device
  • Select by mounting hole size, shape, color, contacts and LED voltage
  • Full range of guards, nameplates and replacement parts

Specifications

Part No. Type Protection Rating Contact Configuration Button Shape Terminal Type Operation Mounting Hole Diameter (Ømm) Contact Material Rated Thermal Current (A) Applicable Panel Thickness (mm) Rated Operational Voltage (V) Illumination Color
LB3L-A1T64Y Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Maintained 16.2 Silver Contact 5 0.5～3.2 AC/DC24 Yellow
LB3L-M1T11A Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Amber
LB3L-M1T11G Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Green
LB3L-M1T11PW Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Pure White
LB3L-M1T11R Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Red
LB3L-M1T11S Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Blue
LB3L-M1T11VA Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Amber
LB3L-M1T11VG Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Green
LB3L-M1T11VPW Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Pure White
LB3L-M1T11VR Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Red
LB3L-M1T11VS Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Blue
LB3L-M1T11VY Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Yellow
LB3L-M1T11Y Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Yellow
LB3L-M1T13A Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Amber
LB3L-M1T13G Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Green
LB3L-M1T13PW Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Pure White
LB3L-M1T13R Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Red
LB3L-M1T13S Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Blue
LB3L-M1T13VA Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Amber
LB3L-M1T13VG Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Green
LB3L-M1T13VPW Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Pure White
LB3L-M1T13VR Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Red
LB3L-M1T13VS Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Blue
LB3L-M1T13VY Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Yellow
LB3L-M1T13Y Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Yellow
LB3L-M1T14A Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Amber
LB3L-M1T14G Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Green
LB3L-M1T14PW Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Pure White
LB3L-M1T14R Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Red
LB3L-M1T14S Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Blue
LB3L-M1T14VA Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Amber
LB3L-M1T14VG Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Green
LB3L-M1T14VPW Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Pure White
LB3L-M1T14VR Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Red
LB3L-M1T14VS Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Blue
LB3L-M1T14VY Illuminated IP65 1c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Yellow
LB3L-M1T21A Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Amber
LB3L-M1T21G Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Green
LB3L-M1T21PW Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Pure White
LB3L-M1T21R Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Red
LB3L-M1T21S Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Blue
LB3L-M1T21VA Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Amber
LB3L-M1T21VG Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Green
LB3L-M1T21VPW Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Pure White
LB3L-M1T21VR Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Red
LB3L-M1T21VS Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Blue
LB3L-M1T21VY Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Yellow
LB3L-M1T21Y Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 DC5 Yellow
LB3L-M1T23A Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Amber
LB3L-M1T23G Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Green
LB3L-M1T23PW Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Pure White
LB3L-M1T23R Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Red
LB3L-M1T23S Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Blue
LB3L-M1T23VG Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Green
LB3L-M1T23VPW Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Pure White
LB3L-M1T23VR Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Red
LB3L-M1T23VS Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Blue
LB3L-M1T23VY Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Yellow
LB3L-M1T23Y Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC12 Yellow
LB3L-M1T24A Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Amber
LB3L-M1T24PW Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Pure White
LB3L-M1T24S Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Blue
LB3L-M1T24VA Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Amber
LB3L-M1T24VG Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Green
LB3L-M1T24VPW Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Pure White
LB3L-M1T24VR Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Red
LB3L-M1T24VS Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Blue
LB3L-M1T24VY Illuminated IP65 2c Rectangular PCB Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Yellow
LB3L-M1T24Y Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Gold Contact 3 0.5～3.2 AC/DC24 Yellow
LB3L-M1T51A Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Amber
LB3L-M1T51G Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Green
LB3L-M1T51PW Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Pure White
LB3L-M1T51R Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Red
LB3L-M1T51S Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Blue
LB3L-M1T51Y Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Yellow
LB3L-M1T53A Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Amber
LB3L-M1T53G Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Green
LB3L-M1T53PW Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Pure White
LB3L-M1T53R Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Red
LB3L-M1T53Y Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Yellow
LB3L-M1T54A Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC24 Amber
LB3L-M1T54G Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 0.5～3.2 AC/DC24 Green
LB3L-M1T54PW Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC24 Pure White
LB3L-M1T54R Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 0.5～3.2 AC/DC24 Red
LB3L-M1T54S Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC24 Blue
LB3L-M1T54Y Illuminated IP65 1c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC24 Yellow
LB3L-M1T61A Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Amber
LB3L-M1T61G Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Green
LB3L-M1T61PW Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Pure White
LB3L-M1T61R Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Red
LB3L-M1T61S Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Blue
LB3L-M1T61Y Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 DC5 Yellow
LB3L-M1T63A Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Amber
LB3L-M1T63G Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Green
LB3L-M1T63PW Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Pure White
LB3L-M1T63R Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Red
LB3L-M1T63S Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Blue
LB3L-M1T63Y Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC12 Yellow
LB3L-M1T64A Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC24 Amber
LB3L-M1T64G Illuminated IP65 2c Rectangular Solder Terminal/Tab Terminal Momentary 16.2 Silver Contact 5 0.5～3.2 AC/DC24 Green

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

IDEC LB3L — Ø16 LB Series Illuminated Pushbutton (Rectangular), genuine IDEC product.OverviewIDEC control and signaling devices, including pushbuttons, illuminated pushbuttons,... Read more

SKU: LB3L-A1T64Y

$23.07 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
