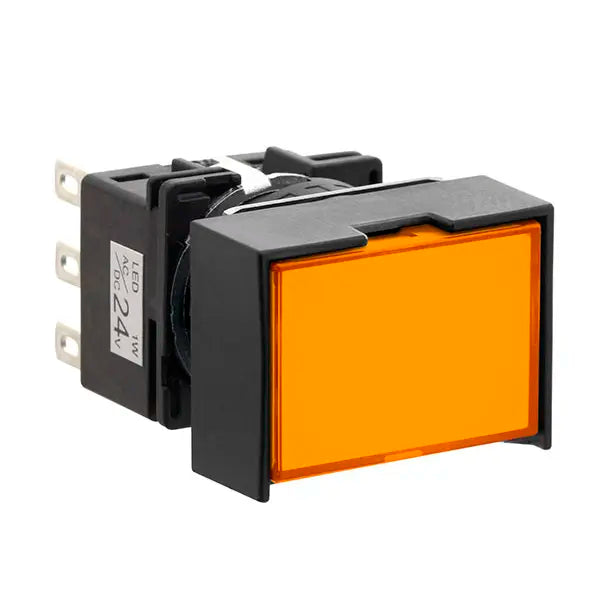

Name: IDEC Ø16 LB Series Illuminated Pushbutton (Rectangular, with 3-Side Barrier), LB4L (Part 1)
Brand: IDEC
SKU: LB4L-A1T11A
Price: 20.76 USD

IDEC Ø16 LB Series Illuminated Pushbutton (Rectangular, with 3-Side Barrier), LB4L (Part 1)

VendorIDEC

Description

IDEC LB4L — Ø16 LB Series Illuminated Pushbutton (Rectangular, with 3-Side Barrier), genuine IDEC product.

Overview

IDEC safety components, including interlock switches, solenoid-locking safety switches, safety relay modules and intrinsically safe relay barriers for machine guarding.

Key Features

Genuine IDEC safety product
Designed for machine safety applications
Select by actuator, contacts, solenoid voltage and cable/connector type

Specifications

Part No.	Type	Protection Rating	Contact Configuration	Button Shape	Terminal Type	Operation	Mounting Hole Diameter (Ømm)	Contact Material	Applicable Panel Thickness (mm)	Rated Operational Voltage (V)	Illumination Color
LB4L-A1T11A	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Amber
LB4L-A1T11G	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Green
LB4L-A1T11PW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Pure White
LB4L-A1T11R	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Red
LB4L-A1T11S	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Blue
LB4L-A1T11VA	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Amber
LB4L-A1T11VG	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Green
LB4L-A1T11VPW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Pure White
LB4L-A1T11VR	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Red
LB4L-A1T11VS	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Blue
LB4L-A1T11VY	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Yellow
LB4L-A1T11Y	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Yellow
LB4L-A1T13A	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Amber
LB4L-A1T13G	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Green
LB4L-A1T13PW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Pure White
LB4L-A1T13R	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Red
LB4L-A1T13S	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Blue
LB4L-A1T13VA	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Amber
LB4L-A1T13VG	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Green
LB4L-A1T13VPW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Pure White
LB4L-A1T13VR	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Red
LB4L-A1T13VS	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Blue
LB4L-A1T13VY	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Yellow
LB4L-A1T14A	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Amber
LB4L-A1T14G	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Green
LB4L-A1T14PW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Pure White
LB4L-A1T14R	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Red
LB4L-A1T14S	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Blue
LB4L-A1T14VA	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Amber
LB4L-A1T14VPW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Pure White
LB4L-A1T14VS	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Blue
LB4L-A1T14VY	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Yellow
LB4L-A1T14Y	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Yellow
LB4L-A1T21A	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Amber
LB4L-A1T21G	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Green
LB4L-A1T21PW	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Pure White
LB4L-A1T21R	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Red
LB4L-A1T21S	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Blue
LB4L-A1T21VA	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Amber
LB4L-A1T21VG	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Green
LB4L-A1T21VPW	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Pure White
LB4L-A1T21VR	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Red
LB4L-A1T21VS	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Blue
LB4L-A1T21VY	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Yellow
LB4L-A1T21Y	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	DC5	Yellow
LB4L-A1T23A	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Amber
LB4L-A1T23G	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Green
LB4L-A1T23PW	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Pure White
LB4L-A1T23R	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Red
LB4L-A1T23S	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Blue
LB4L-A1T23VA	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Amber
LB4L-A1T23VG	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Green
LB4L-A1T23VPW	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Pure White
LB4L-A1T23VR	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Red
LB4L-A1T23VS	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Blue
LB4L-A1T23VY	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Yellow
LB4L-A1T23Y	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC12	Yellow
LB4L-A1T24A	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Amber
LB4L-A1T24G	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Green
LB4L-A1T24PW	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Pure White
LB4L-A1T24R	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Red
LB4L-A1T24S	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Blue
LB4L-A1T24VA	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Amber
LB4L-A1T24VG	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Green
LB4L-A1T24VPW	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Pure White
LB4L-A1T24VR	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Red
LB4L-A1T24VS	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Blue
LB4L-A1T24VY	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	PCB Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Yellow
LB4L-A1T24Y	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Gold Contact	0.5～3.2	AC/DC24	Yellow
LB4L-A1T51A	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Amber
LB4L-A1T51G	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Green
LB4L-A1T51PW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Pure White
LB4L-A1T51R	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Red
LB4L-A1T51S	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Blue
LB4L-A1T51Y	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Yellow
LB4L-A1T53A	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Amber
LB4L-A1T53G	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Green
LB4L-A1T53PW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Pure White
LB4L-A1T53R	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Red
LB4L-A1T53S	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Blue
LB4L-A1T53Y	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Yellow
LB4L-A1T54A	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC24	Amber
LB4L-A1T54G	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC24	Green
LB4L-A1T54PW	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC24	Pure White
LB4L-A1T54R	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC24	Red
LB4L-A1T54S	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC24	Blue
LB4L-A1T54Y	Illuminated	IP65	1c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC24	Yellow
LB4L-A1T61A	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Amber
LB4L-A1T61G	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Green
LB4L-A1T61PW	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Pure White
LB4L-A1T61R	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Red
LB4L-A1T61S	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Blue
LB4L-A1T61Y	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	DC5	Yellow
LB4L-A1T63A	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Amber
LB4L-A1T63G	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Green
LB4L-A1T63PW	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Pure White
LB4L-A1T63R	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Red
LB4L-A1T63S	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Blue
LB4L-A1T63Y	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC12	Yellow
LB4L-A1T64A	Illuminated	IP65	2c	Rectangular (3-Side Barrier)	Solder Terminal/Tab Terminal	Maintained	16.2	Silver Contact	0.5～3.2	AC/DC24	Amber

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
