Description

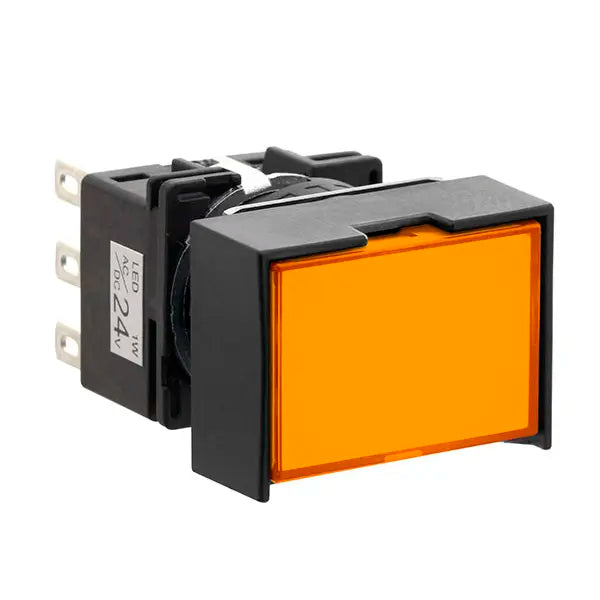

IDEC LB4L — Ø16 LB Series Illuminated Pushbutton (Rectangular, with 3-Side Barrier), genuine IDEC product.
Overview
IDEC safety components, including interlock switches, solenoid-locking safety switches, safety relay modules and intrinsically safe relay barriers for machine guarding.
Key Features
- Genuine IDEC safety product
- Designed for machine safety applications
- Select by actuator, contacts, solenoid voltage and cable/connector type
Specifications
| Part No. |
Type |
Protection Rating |
Contact Configuration |
Button Shape |
Terminal Type |
Operation |
Mounting Hole Diameter (Ømm) |
Contact Material |
Applicable Panel Thickness (mm) |
Rated Operational Voltage (V) |
Illumination Color |
| LB4L-M1T63A |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC12 |
Amber |
| LB4L-M1T63G |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC12 |
Green |
| LB4L-M1T63PW |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC12 |
Pure White |
| LB4L-M1T63R |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC12 |
Red |
| LB4L-M1T63S |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC12 |
Blue |
| LB4L-M1T63Y |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC12 |
Yellow |
| LB4L-M1T64A |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC24 |
Amber |
| LB4L-M1T64G |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC24 |
Green |
| LB4L-M1T64PW |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC24 |
Pure White |
| LB4L-M1T64R |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC24 |
Red |
| LB4L-M1T64S |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC24 |
Blue |
| LB4L-M1T64Y |
Illuminated |
IP65 |
2c |
Rectangular (3-Side Barrier) |
Solder Terminal/Tab Terminal |
Momentary |
16.2 |
Silver Contact |
0.5～3.2 |
AC/DC24 |
Yellow |
How to Order
Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About IDEC
IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.
Ordering & Shipping
- Genuine IDEC product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
