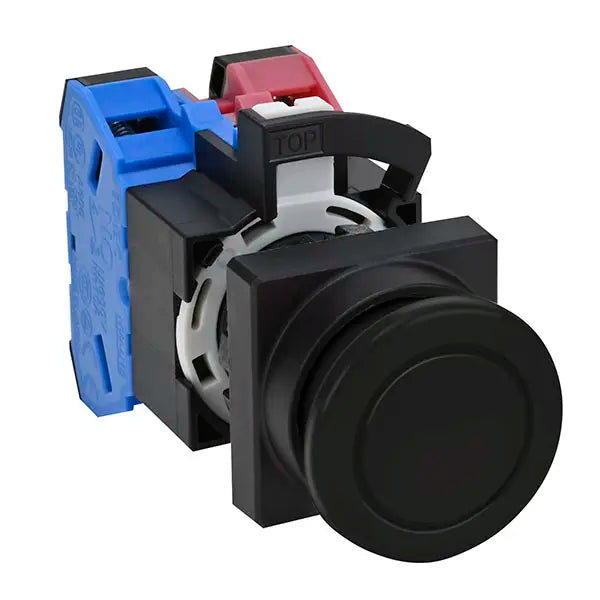

IDEC Ø22 HW Series Pushbutton Switch, Round Medium, HW3B

Description

IDEC HW3B — Ø22 HW Series Pushbutton Switch, Round Medium, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

  • Genuine IDEC control and signaling device
  • Select by mounting hole size, shape, color, contacts and LED voltage
  • Full range of guards, nameplates and replacement parts

Specifications

Part No. Type Protection Rating Contact Configuration Button Shape Terminal Type Button Color Operation Mounting Hole Diameter (Ømm)
HW3B-A301B Non-Illuminated IP65 1b Round (Medium) Screw Terminal Black Maintained 22
HW3B-A301G Non-Illuminated IP65 1b Round (Medium) Screw Terminal Green Maintained 22
HW3B-A301R Non-Illuminated IP65 1b Round (Medium) Screw Terminal Red Maintained 22
HW3B-A301S Non-Illuminated IP65 1b Round (Medium) Screw Terminal Blue Maintained 22
HW3B-A301W Non-Illuminated IP65 1b Round (Medium) Screw Terminal White Maintained 22
HW3B-A301Y Non-Illuminated IP65 1b Round (Medium) Screw Terminal Yellow Maintained 22
HW3B-A302B Non-Illuminated IP65 2b Round (Medium) Screw Terminal Black Maintained 22
HW3B-A302G Non-Illuminated IP65 2b Round (Medium) Screw Terminal Green Maintained 22
HW3B-A302R Non-Illuminated IP65 2b Round (Medium) Screw Terminal Red Maintained 22
HW3B-A302S Non-Illuminated IP65 2b Round (Medium) Screw Terminal Blue Maintained 22
HW3B-A302W Non-Illuminated IP65 2b Round (Medium) Screw Terminal White Maintained 22
HW3B-A302Y Non-Illuminated IP65 2b Round (Medium) Screw Terminal Yellow Maintained 22
HW3B-A310B Non-Illuminated IP65 1a Round (Medium) Screw Terminal Black Maintained 22
HW3B-A310G Non-Illuminated IP65 1a Round (Medium) Screw Terminal Green Maintained 22
HW3B-A310R Non-Illuminated IP65 1a Round (Medium) Screw Terminal Red Maintained 22
HW3B-A310S Non-Illuminated IP65 1a Round (Medium) Screw Terminal Blue Maintained 22
HW3B-A310W Non-Illuminated IP65 1a Round (Medium) Screw Terminal White Maintained 22
HW3B-A310Y Non-Illuminated IP65 1a Round (Medium) Screw Terminal Yellow Maintained 22
HW3B-A311B Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Black Maintained 22
HW3B-A311G Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Green Maintained 22
HW3B-A311R Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Red Maintained 22
HW3B-A311S Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Blue Maintained 22
HW3B-A311W Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal White Maintained 22
HW3B-A311Y Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Yellow Maintained 22
HW3B-A320B Non-Illuminated IP65 2a Round (Medium) Screw Terminal Black Maintained 22
HW3B-A320G Non-Illuminated IP65 2a Round (Medium) Screw Terminal Green Maintained 22
HW3B-A320R Non-Illuminated IP65 2a Round (Medium) Screw Terminal Red Maintained 22
HW3B-A320S Non-Illuminated IP65 2a Round (Medium) Screw Terminal Blue Maintained 22
HW3B-A320W Non-Illuminated IP65 2a Round (Medium) Screw Terminal White Maintained 22
HW3B-A320Y Non-Illuminated IP65 2a Round (Medium) Screw Terminal Yellow Maintained 22
HW3B-A322B Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Black Maintained 22
HW3B-A322G Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Green Maintained 22
HW3B-A322R Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Red Maintained 22
HW3B-A322S Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Blue Maintained 22
HW3B-A322W Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal White Maintained 22
HW3B-A322Y Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Yellow Maintained 22
HW3B-M301B Non-Illuminated IP65 1b Round (Medium) Screw Terminal Black Momentary 22
HW3B-M301G Non-Illuminated IP65 1b Round (Medium) Screw Terminal Green Momentary 22
HW3B-M301R Non-Illuminated IP65 1b Round (Medium) Screw Terminal Red Momentary 22
HW3B-M301S Non-Illuminated IP65 1b Round (Medium) Screw Terminal Blue Momentary 22
HW3B-M301W Non-Illuminated IP65 1b Round (Medium) Screw Terminal White Momentary 22
HW3B-M301Y Non-Illuminated IP65 1b Round (Medium) Screw Terminal Yellow Momentary 22
HW3B-M302B Non-Illuminated IP65 2b Round (Medium) Screw Terminal Black Momentary 22
HW3B-M302G Non-Illuminated IP65 2b Round (Medium) Screw Terminal Green Momentary 22
HW3B-M302R Non-Illuminated IP65 2b Round (Medium) Screw Terminal Red Momentary 22
HW3B-M302S Non-Illuminated IP65 2b Round (Medium) Screw Terminal Blue Momentary 22
HW3B-M302W Non-Illuminated IP65 2b Round (Medium) Screw Terminal White Momentary 22
HW3B-M302Y Non-Illuminated IP65 2b Round (Medium) Screw Terminal Yellow Momentary 22
HW3B-M310B Non-Illuminated IP65 1a Round (Medium) Screw Terminal Black Momentary 22
HW3B-M310G Non-Illuminated IP65 1a Round (Medium) Screw Terminal Green Momentary 22
HW3B-M310R Non-Illuminated IP65 1a Round (Medium) Screw Terminal Red Momentary 22
HW3B-M310S Non-Illuminated IP65 1a Round (Medium) Screw Terminal Blue Momentary 22
HW3B-M310W Non-Illuminated IP65 1a Round (Medium) Screw Terminal White Momentary 22
HW3B-M310Y Non-Illuminated IP65 1a Round (Medium) Screw Terminal Yellow Momentary 22
HW3B-M311B Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Black Momentary 22
HW3B-M311G Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Green Momentary 22
HW3B-M311R Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Red Momentary 22
HW3B-M311S Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Blue Momentary 22
HW3B-M311W Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal White Momentary 22
HW3B-M311Y Non-Illuminated IP65 1a1b Round (Medium) Screw Terminal Yellow Momentary 22
HW3B-M320B Non-Illuminated IP65 2a Round (Medium) Screw Terminal Black Momentary 22
HW3B-M320G Non-Illuminated IP65 2a Round (Medium) Screw Terminal Green Momentary 22
HW3B-M320R Non-Illuminated IP65 2a Round (Medium) Screw Terminal Red Momentary 22
HW3B-M320S Non-Illuminated IP65 2a Round (Medium) Screw Terminal Blue Momentary 22
HW3B-M320W Non-Illuminated IP65 2a Round (Medium) Screw Terminal White Momentary 22
HW3B-M320Y Non-Illuminated IP65 2a Round (Medium) Screw Terminal Yellow Momentary 22
HW3B-M322B Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Black Momentary 22
HW3B-M322G Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Green Momentary 22
HW3B-M322R Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Red Momentary 22
HW3B-M322S Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Blue Momentary 22
HW3B-M322W Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal White Momentary 22
HW3B-M322Y Non-Illuminated IP65 2a2b Round (Medium) Screw Terminal Yellow Momentary 22

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
