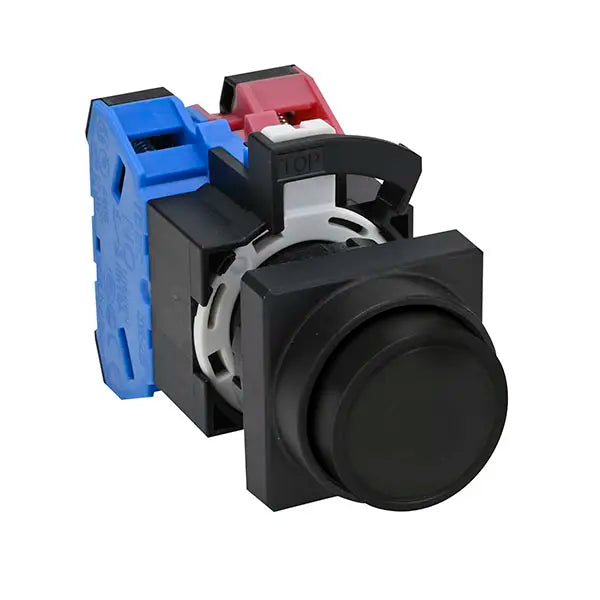

IDEC Ø22 HW Series Pushbutton Switch, Round Extended, HW3B

Description

IDEC HW3B — Ø22 HW Series Pushbutton Switch, Round Extended, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

  • Genuine IDEC control and signaling device
  • Select by mounting hole size, shape, color, contacts and LED voltage
  • Full range of guards, nameplates and replacement parts

Specifications

Part No. Type Protection Rating Contact Configuration Button Shape Terminal Type Button Color Operation Mounting Hole Diameter (Ømm)
HW3B-A201B Non-Illuminated IP65 1b Round (Extended) Screw Terminal Black Maintained 22
HW3B-A201G Non-Illuminated IP65 1b Round (Extended) Screw Terminal Green Maintained 22
HW3B-A201R Non-Illuminated IP65 1b Round (Extended) Screw Terminal Red Maintained 22
HW3B-A201S Non-Illuminated IP65 1b Round (Extended) Screw Terminal Blue Maintained 22
HW3B-A201W Non-Illuminated IP65 1b Round (Extended) Screw Terminal White Maintained 22
HW3B-A201Y Non-Illuminated IP65 1b Round (Extended) Screw Terminal Yellow Maintained 22
HW3B-A202B Non-Illuminated IP65 2b Round (Extended) Screw Terminal Black Maintained 22
HW3B-A202G Non-Illuminated IP65 2b Round (Extended) Screw Terminal Green Maintained 22
HW3B-A202R Non-Illuminated IP65 2b Round (Extended) Screw Terminal Red Maintained 22
HW3B-A202S Non-Illuminated IP65 2b Round (Extended) Screw Terminal Blue Maintained 22
HW3B-A202W Non-Illuminated IP65 2b Round (Extended) Screw Terminal White Maintained 22
HW3B-A202Y Non-Illuminated IP65 2b Round (Extended) Screw Terminal Yellow Maintained 22
HW3B-A210B Non-Illuminated IP65 1a Round (Extended) Screw Terminal Black Maintained 22
HW3B-A210G Non-Illuminated IP65 1a Round (Extended) Screw Terminal Green Maintained 22
HW3B-A210R Non-Illuminated IP65 1a Round (Extended) Screw Terminal Red Maintained 22
HW3B-A210S Non-Illuminated IP65 1a Round (Extended) Screw Terminal Blue Maintained 22
HW3B-A210W Non-Illuminated IP65 1a Round (Extended) Screw Terminal White Maintained 22
HW3B-A210Y Non-Illuminated IP65 1a Round (Extended) Screw Terminal Yellow Maintained 22
HW3B-A211B Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Black Maintained 22
HW3B-A211G Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Green Maintained 22
HW3B-A211R Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Red Maintained 22
HW3B-A211S Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Blue Maintained 22
HW3B-A211W Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal White Maintained 22
HW3B-A211Y Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Yellow Maintained 22
HW3B-A220B Non-Illuminated IP65 2a Round (Extended) Screw Terminal Black Maintained 22
HW3B-A220G Non-Illuminated IP65 2a Round (Extended) Screw Terminal Green Maintained 22
HW3B-A220R Non-Illuminated IP65 2a Round (Extended) Screw Terminal Red Maintained 22
HW3B-A220S Non-Illuminated IP65 2a Round (Extended) Screw Terminal Blue Maintained 22
HW3B-A220W Non-Illuminated IP65 2a Round (Extended) Screw Terminal White Maintained 22
HW3B-A220Y Non-Illuminated IP65 2a Round (Extended) Screw Terminal Yellow Maintained 22
HW3B-A222B Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Black Maintained 22
HW3B-A222G Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Green Maintained 22
HW3B-A222R Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Red Maintained 22
HW3B-A222S Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Blue Maintained 22
HW3B-A222W Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal White Maintained 22
HW3B-A222Y Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Yellow Maintained 22
HW3B-M201B Non-Illuminated IP65 1b Round (Extended) Screw Terminal Black Momentary 22
HW3B-M201G Non-Illuminated IP65 1b Round (Extended) Screw Terminal Green Momentary 22
HW3B-M201R Non-Illuminated IP65 1b Round (Extended) Screw Terminal Red Momentary 22
HW3B-M201S Non-Illuminated IP65 1b Round (Extended) Screw Terminal Blue Momentary 22
HW3B-M201W Non-Illuminated IP65 1b Round (Extended) Screw Terminal White Momentary 22
HW3B-M201Y Non-Illuminated IP65 1b Round (Extended) Screw Terminal Yellow Momentary 22
HW3B-M202B Non-Illuminated IP65 2b Round (Extended) Screw Terminal Black Momentary 22
HW3B-M202G Non-Illuminated IP65 2b Round (Extended) Screw Terminal Green Momentary 22
HW3B-M202R Non-Illuminated IP65 2b Round (Extended) Screw Terminal Red Momentary 22
HW3B-M202S Non-Illuminated IP65 2b Round (Extended) Screw Terminal Blue Momentary 22
HW3B-M202W Non-Illuminated IP65 2b Round (Extended) Screw Terminal White Momentary 22
HW3B-M202Y Non-Illuminated IP65 2b Round (Extended) Screw Terminal Yellow Momentary 22
HW3B-M210B Non-Illuminated IP65 1a Round (Extended) Screw Terminal Black Momentary 22
HW3B-M210G Non-Illuminated IP65 1a Round (Extended) Screw Terminal Green Momentary 22
HW3B-M210R Non-Illuminated IP65 1a Round (Extended) Screw Terminal Red Momentary 22
HW3B-M210S Non-Illuminated IP65 1a Round (Extended) Screw Terminal Blue Momentary 22
HW3B-M210W Non-Illuminated IP65 1a Round (Extended) Screw Terminal White Momentary 22
HW3B-M210Y Non-Illuminated IP65 1a Round (Extended) Screw Terminal Yellow Momentary 22
HW3B-M211B Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Black Momentary 22
HW3B-M211G Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Green Momentary 22
HW3B-M211R Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Red Momentary 22
HW3B-M211S Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Blue Momentary 22
HW3B-M211W Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal White Momentary 22
HW3B-M211Y Non-Illuminated IP65 1a1b Round (Extended) Screw Terminal Yellow Momentary 22
HW3B-M220B Non-Illuminated IP65 2a Round (Extended) Screw Terminal Black Momentary 22
HW3B-M220G Non-Illuminated IP65 2a Round (Extended) Screw Terminal Green Momentary 22
HW3B-M220R Non-Illuminated IP65 2a Round (Extended) Screw Terminal Red Momentary 22
HW3B-M220S Non-Illuminated IP65 2a Round (Extended) Screw Terminal Blue Momentary 22
HW3B-M220W Non-Illuminated IP65 2a Round (Extended) Screw Terminal White Momentary 22
HW3B-M220Y Non-Illuminated IP65 2a Round (Extended) Screw Terminal Yellow Momentary 22
HW3B-M222B Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Black Momentary 22
HW3B-M222G Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Green Momentary 22
HW3B-M222R Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Red Momentary 22
HW3B-M222S Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Blue Momentary 22
HW3B-M222W Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal White Momentary 22
HW3B-M222Y Non-Illuminated IP65 2a2b Round (Extended) Screw Terminal Yellow Momentary 22

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
