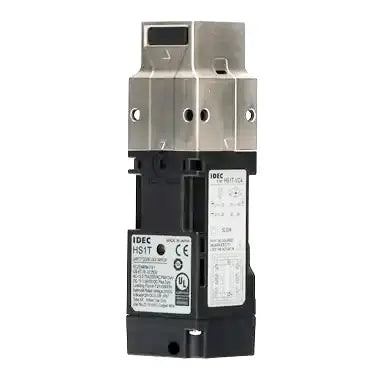

IDEC HS1T Solenoid Interlock Safety Switch

Description

IDEC HS — HS1T Solenoid Interlock Safety Switch, genuine IDEC product.

Overview

IDEC safety components, including interlock switches, solenoid-locking safety switches, safety relay modules and intrinsically safe relay barriers for machine guarding.

Key Features

  • Genuine IDEC safety product
  • Designed for machine safety applications
  • Select by actuator, contacts, solenoid voltage and cable/connector type

Specifications

Part No. Weight (g) Type Protection Rating Contact Configuration Insulation Voltage (V) Operating Force Relative Humidity Operating Ambient Temperature (℃) Vibration Resistance (Durability) Storage Temperature Range (℃)
HS1T-DD44ZM-G Approx. 450 4-contact, redundant safety type IP67(IEC60529)Type 4X Indoor Use Only Main Circuit: 1NC+1NC, 1NC+1NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VA44ZLM-G Approx. 450 4-contact, with rear lock-release pushbutton IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NC, 1NO / Lock Monitor: 1NC, 1NO 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VA44ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NC, 1NO / Lock Monitor: 1NC, 1NO 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VA7Y4ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NC, 1NO / Lock Monitor: 1NC, 1NO 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VC44ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 2NC / Lock Monitor: 1NC, 1NO 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VD44ZLM-G Approx. 450 4-contact, with rear lock-release pushbutton IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 2NC / Lock Monitor: 2NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VD44ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 2NC / Lock Monitor: 2NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VD7Y4ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 2NC / Lock Monitor: 2NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VF7Y4ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 3NC / Lock Monitor: 1NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VG7Y4ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 2NC, 1NO / Lock Monitor: 1NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VH44ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NC / Lock Monitor: 3NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VJ44ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NC / Lock Monitor: 2NC, 1NO 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VW44ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NO / Lock Monitor: 3NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-VX44ZM-G Approx. 450 4-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NO / Lock Monitor: 2NC, 1NO 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-XD44ZM-G Approx. 450 2-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NC / Lock Monitor: 1NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-XD7Y4ZM-G Approx. 450 2-contact type IP67(IEC60529)Type 4X Indoor Use Only Door Monitor: 1NC / Lock Monitor: 1NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-XH44ZLM-G Approx. 450 2-contact type, with rear lock-release pushbutton IP67(IEC60529)Type 4X Indoor Use Only Lock Monitoring Circuit: 2NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-XH44ZM-G Approx. 450 2-contact type IP67(IEC60529)Type 4X Indoor Use Only Lock Monitoring Circuit: 2NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS1T-XH7Y4ZM-G Approx. 450 2-contact type IP67(IEC60529)Type 4X Indoor Use Only Lock Monitoring Circuit: 2NC 250 (LED, solenoid-ground: 3V) Direct Opening: 120N 20~95%RH (no condensation) -25~55 (no freezing) 30Hz, single amplitude 1.5mm min.
HS9Z-A11T - Straight Type (with Cushion Rubber) - - - - - - -
HS9Z-A12T - L Type (with Cushion Rubber) - - - - - - -

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

IDEC HS — HS1T Solenoid Interlock Safety Switch, genuine IDEC product.OverviewIDEC safety components, including interlock switches, solenoid-locking safety switches, safety... Read more

SKU: HS1T-DD44ZM-G

$242.30 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
