Description

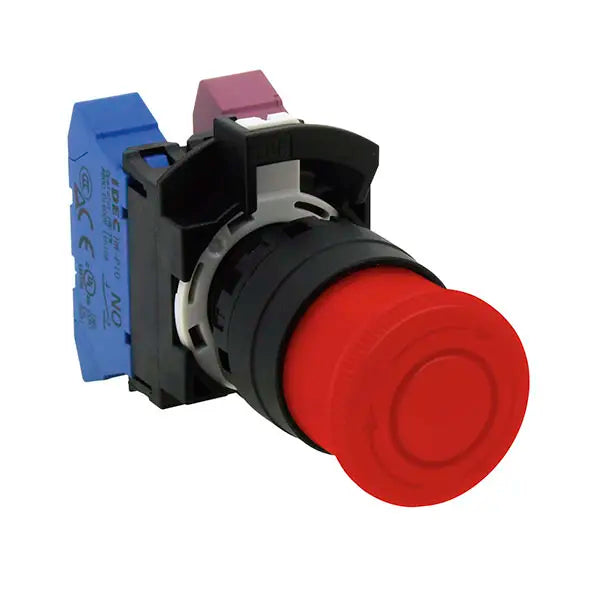

IDEC HW1B — HW Series Emergency Stop Pushbutton (Push-in Terminal Type), genuine IDEC product.
Overview
IDEC emergency stop pushbuttons and enabling switches (XA, XW, XN, X6, HW, HE series) provide safe machine stopping and operator enabling functions for machinery and control panels.
Key Features
- Genuine IDEC safety command device
- Direct-opening action contacts on emergency stop types
- Select by mounting hole size, button size, contacts and terminal type
Specifications
| Part No. |
Product Name |
Type |
Protection Rating |
Contact Configuration |
Button Shape |
Terminal Type |
Button Color |
Insulation Voltage (V) |
Operation |
Illumination Type |
Storage Temperature (℃) |
Insulation Resistance (MΩ) |
| HW1B-V3P01R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
1b |
Medium (Ø29) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V3P02R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
2b |
Medium (Ø29) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V3P03N2R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
3b |
Medium (Ø29) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V3P04R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
4b |
Medium (Ø29) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V3P11R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
1a1b |
Medium (Ø29) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V3P22R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
2a2b |
Medium (Ø29) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V3R-PS |
Operator Unit |
Unit Component |
IP65 |
- |
Medium (Ø29) |
- |
Red |
- |
Push-Lock Turn-Reset |
- |
-40~80 (no freezing) |
- |
| HW1B-V3Y-PS |
Operator Unit |
Unit Component |
IP65 |
- |
Medium (Ø29) |
- |
Yellow |
- |
Push-Lock Turn-Reset |
- |
-40~80 (no freezing) |
- |
| HW1B-V4P01R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
1b |
Large (Ø40) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V4P02R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
2b |
Large (Ø40) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V4P03N2R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
3b |
Large (Ø40) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V4P04R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
4b |
Large (Ø40) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V4P11R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
1a1b |
Large (Ø40) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V4P22R |
Emergency Stop Pushbutton Switch |
Complete Unit |
Terminal: IP20, Panel Front: IP65 |
2a2b |
Large (Ø40) |
Push-in Type |
Red |
600 |
Push-Lock Turn-Reset |
Non-Illuminated |
-40~80 (no freezing) |
100 min. (DC500V megger) |
| HW1B-V4R-PS |
Operator Unit |
Unit Component |
IP65 |
- |
Large (Ø40) |
- |
Red |
- |
Push-Lock Turn-Reset |
- |
-40~80 (no freezing) |
- |
| HW1B-V4Y-PS |
Operator Unit |
Unit Component |
IP65 |
- |
Large (Ø40) |
- |
Yellow |
- |
Push-Lock Turn-Reset |
- |
-40~80 (no freezing) |
- |
How to Order
Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
