Description

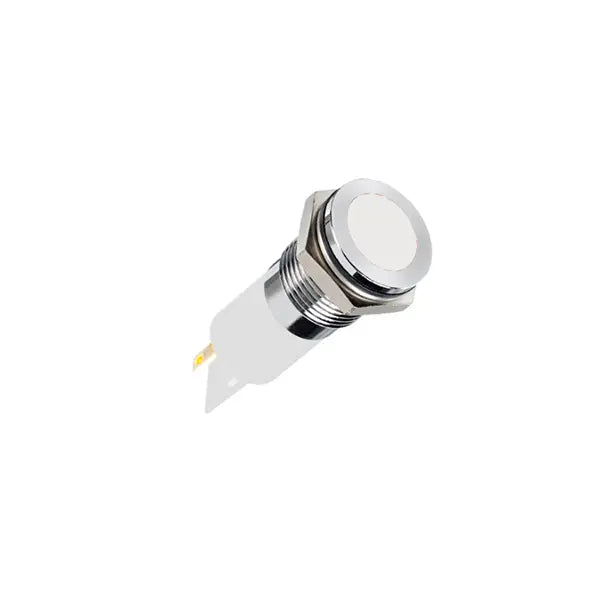

IDEC Q — Q Series LED Pilot Light, genuine IDEC product.
Overview
IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.
Key Features
- Genuine IDEC control and signaling device
- Select by mounting hole size, shape, color, contacts and LED voltage
- Full range of guards, nameplates and replacement parts
Specifications
| Part No. |
Material (Body) |
Voltage (V) |
Protection Rating |
Terminal Type |
Illumination Type |
Storage Temperature (℃) |
Operating Ambient Temperature (℃) |
Mounting Hole Diameter (Ømm) |
Operator Shape |
Operating Current (mA) |
Illumination Color |
Material (Bezel) |
| Q12F1CXXW24AE |
Polycarbonate |
AC/DC24 |
IP67 |
Solder Terminal/Faston Terminal |
LED |
-30~65 (no freezing) |
-30~65 (no freezing) |
12(0～0.15) |
Flush Type |
20 |
White |
Brass |
| Q22P5CXXW24AE |
Polycarbonate |
AC/DC24 |
IP67 |
Solder Terminal/Faston Terminal |
LED |
-30~65 (no freezing) |
-30~65 (no freezing) |
22(0～0.15) |
Round (Extended) |
20 |
White |
Brass |
| Q22Y5SZZRGB12E-CA |
Polycarbonate |
DC12 |
IP67 |
Epoxy Resin Lead Wire |
LED |
-40~85 (no freezing) |
-40~85 (no freezing) |
22(0～0.15) |
Trapezoid |
20 |
Red/Green/Blue |
Brass |
| Q22Y5SZZRGB24E-CA |
Polycarbonate |
DC24 |
IP67 |
Epoxy Resin Lead Wire |
LED |
-40~85 (no freezing) |
-40~85 (no freezing) |
22(0～0.15) |
Trapezoid |
20 |
Red/Green/Blue |
Brass |
| Q6F5CXXB24AE |
Polycarbonate |
AC/DC24 |
IP67 |
Epoxy Resin Lead Wire |
LED |
-40~85 (no freezing) |
-40~85 (no freezing) |
6(0～0.15) |
Flush Type |
20 |
Blue |
Brass |
| Q8F5CXXB24AE |
Polycarbonate |
AC/DC24 |
IP67 |
Epoxy Resin Lead Wire |
LED |
-40~85 (no freezing) |
-40~85 (no freezing) |
8(0～0.15) |
Flush Type |
20 |
Blue |
Brass |
| Q8R5BXXHO220E |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
How to Order
Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
