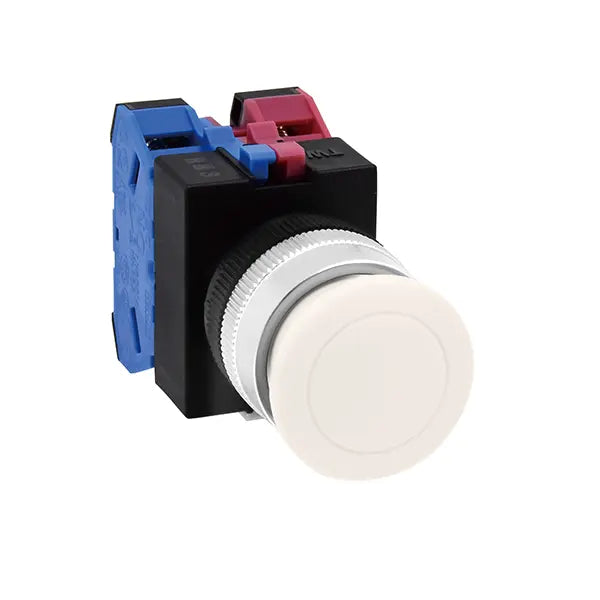

Name: IDEC TW Series (Part 2) - AOW301R-ZT3
Brand: IDEC
SKU: AOW301R-ZT3
Price: 48.45 USD

IDEC TW Series (Part 2) - AOW301R-ZT3

VendorIDEC

Description

IDEC A — TW Series, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

Genuine IDEC control and signaling device
Select by mounting hole size, shape, color, contacts and LED voltage
Full range of guards, nameplates and replacement parts

Specifications

Part No.	Compliant	Material	Material (Body)	Product Name	External Dimensions (mm)	Protection Rating	Contact Configuration	Terminal Type	Insulation Voltage (V)	Notch Angle (°)	Number of Notches	Operation
AOW301R-ZT3	-	-	-	Pushbutton Switch	-	IP65	1b	M3.5 Screw Terminal	600	-	-	Maintained
AOW301S	-	-	-	Pushbutton Switch	-	IP65	1b	M3.5 Screw Terminal	600	-	-	Maintained
AOW301Y	-	-	-	Pushbutton Switch	-	IP65	1b	M3.5 Screw Terminal	600	-	-	Maintained
AOW311R-MAU	-	-	-	Pushbutton Switch	-	IP65	1a1b	M3.5 Screw Terminal	600	-	-	Maintained
AOW311Y-ZT2	-	-	-	Pushbutton Switch	-	IP65	1a1b	M3.5 Screw Terminal	600	-	-	Maintained
AOW410B-ZT2	-	-	-	Pushbutton Switch	-	IP65	1a	M3.5 Screw Terminal	600	-	-	Maintained
AOW410R-ZT3	-	-	-	Pushbutton Switch	-	IP65	1a	M3.5 Screw Terminal	600	-	-	Maintained
AOW411R-ZT3	-	-	-	Pushbutton Switch	-	IP65	1a1b	M3.5 Screw Terminal	600	-	-	Maintained
APQW11LD-A-KPN05	For Ø22 TW Square Flush Unit Pilot Light	-	AS resin	Lens	□24.7×H12.3	-	-	-	-	-	-	-
APQW11LD-C-KPN05	For Ø22 TW Square Flush Unit Pilot Light	-	AS resin	Lens	□24.7×H12.3	-	-	-	-	-	-	-
APQW11LD-G-KPN05	For Ø22 TW Square Flush Unit Pilot Light	-	AS resin	Lens	□24.7×H12.3	-	-	-	-	-	-	-
APQW11LD-R-KPN05	For Ø22 TW Square Flush Unit Pilot Light	-	AS resin	Lens	□24.7×H12.3	-	-	-	-	-	-	-
APQW11LD-S-KPN05	For Ø22 TW Square Flush Unit Pilot Light	-	AS resin	Lens	□24.7×H12.3	-	-	-	-	-	-	-
APQW11LD-Y-KPN05	For Ø22 TW Square Flush Unit Pilot Light	-	AS resin	Lens	□24.7×H12.3	-	-	-	-	-	-	-
APQW1BPN05	For Ø22 TW Square Flush (UPQW) Pilot Light	-	Acrylic Resin	Nameplate	□22×H2.6	-	-	-	-	-	-	-
APW11LD-A-KPN05	For Ø22 TW Series Square Unit (Marking Type) Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW11LD-C-KPN05	For Ø22 TW Series Square Unit (Marking Type) Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW11LD-G-KPN05	For Ø22 TW Series Square Unit (Marking Type) Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW11LD-R-KPN05	For Ø22 TW Series Square Unit (Marking Type) Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW11LD-S-KPN05	For Ø22 TW Series Square Unit (Marking Type) Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW11LD-Y-KPN05	For Ø22 TW Series Square Unit (Marking Type) Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW122DA	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW122DA-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW122DG-ZT2	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW122DG-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW122DPW-ZT2	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW122DR-ZT2	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW122DR-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW122DY	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1386DA	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1386DPW	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1386DR	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW146DPW	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW146DR	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1486DPW	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1486DR	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1486DS	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1486DY	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1B22DG	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1B22DR-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1B386DA	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1B386DPW	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1B46DA	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1B46DPW	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW1LD-A-KPN05	For Ø22 TW Series Square Unit Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW1LD-G-KPN05	For Ø22 TW Series Square Unit Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW1LD-R-KPN05	For Ø22 TW Series Square Unit Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW1LD-S-KPN05	For Ø22 TW Series Square Unit Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW1LD-W-KPN05	For Ø22 TW Series Square Unit Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW1LD-Y-KPN05	For Ø22 TW Series Square Unit Pilot Light	-	AS resin	Lens	□23.6×H12.7	-	-	-	-	-	-	-
APW211DA-ZT2	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW211DG-ZT2	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DA-ZT2	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DA-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DG-ZP	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DG-ZT2	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DG-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DPW-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DR-ZP	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DR-ZT2	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DR-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DY-ZP	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW222DY-ZT3	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW226DR	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW2386DA	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW2386DG	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW2386DPW	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW2386DS	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW2386DY	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW246DPW	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW246DS	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW246DY	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW2486DG	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW2486DPW	-	-	-	Pilot Light (LED)	-	IP65	-	M3.5 Screw Terminal	600	-	-	-
APW2LD-A-KPN05	For Ø22 TW Series Extended Unit Pilot Light	-	AS resin	Lens	□23.6×H20	-	-	-	-	-	-	-
APW2LD-G-KPN05	For Ø22 TW Series Extended Unit Pilot Light	-	AS resin	Lens	□23.6×H20	-	-	-	-	-	-	-
APW2LD-R-KPN05	For Ø22 TW Series Extended Unit Pilot Light	-	AS resin	Lens	□23.6×H20	-	-	-	-	-	-	-
APW2LD-S-KPN05	For Ø22 TW Series Extended Unit Pilot Light	-	AS resin	Lens	□23.6×H20	-	-	-	-	-	-	-
APW2LD-W-KPN05	For Ø22 TW Series Extended Unit Pilot Light	-	AS resin	Lens	□23.6×H20	-	-	-	-	-	-	-
APW2LD-Y-KPN05	For Ø22 TW Series Extended Unit Pilot Light	-	AS resin	Lens	□23.6×H20	-	-	-	-	-	-	-
ASLW211111DR-MAU	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a1b	M3.5 Screw Terminal	600	90	2	Spring Return from Right
ASLW21111DR-MAU	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a1b	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW212210DG	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Spring Return from Right
ASLW212210DR	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Spring Return from Right
ASLW212222DR	-	-	-	Illuminated Selector Switch (LED)	-	IP54	2a2b	M3.5 Screw Terminal	600	90	2	Spring Return from Right
ASLW22202DPW	-	-	-	Illuminated Selector Switch (LED)	-	IP54	2b	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22210DG-MAU	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22210DG-ZP	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22210DPW	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22210DR	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22210DR-MAU	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22210DS-ZP	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22210DY	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22211DG	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a1b	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22211DS-MAU	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a1b	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22220DG-MAU	-	-	-	Illuminated Selector Switch (LED)	-	IP54	2a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22220DR-MAU	-	-	-	Illuminated Selector Switch (LED)	-	IP54	2a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW22240DPW	-	-	-	Illuminated Selector Switch (LED)	-	IP54	4a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW26640DY	-	-	-	Illuminated Selector Switch (LED)	-	IP54	4a	M3.5 Screw Terminal	600	90	2	Maintained (Manual)
ASLW31111DS-303	-	-	-	Illuminated Selector Switch (LED)	-	IP54	1a1b	M3.5 Screw Terminal	600	45	3	Maintained (Manual)

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

Genuine IDEC product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
