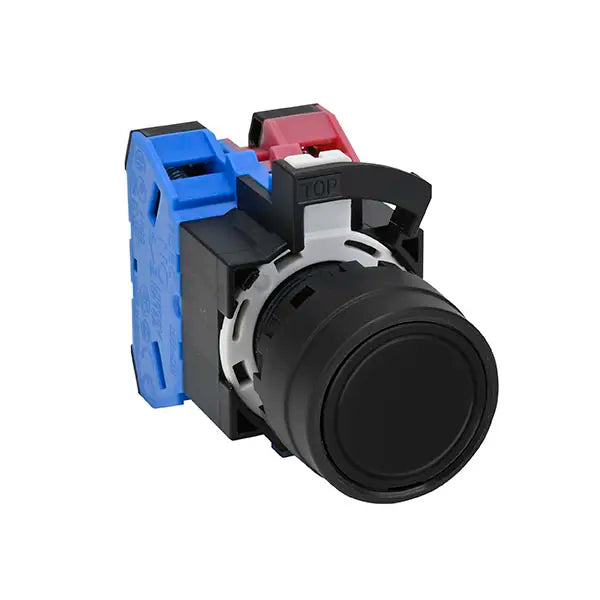

IDEC Ø22 HW Series Pushbutton Switch, Flush, HW1B

Description

IDEC HW1B — Ø22 HW Series Pushbutton Switch, Flush, genuine IDEC product.

Overview

IDEC control and signaling devices, including pushbuttons, illuminated pushbuttons, selector and key switches, pilot lights, buzzers, control boxes and maintenance parts for Ø8 to Ø30 panel mounting.

Key Features

  • Genuine IDEC control and signaling device
  • Select by mounting hole size, shape, color, contacts and LED voltage
  • Full range of guards, nameplates and replacement parts

Specifications

Part No. Material (Ring) Terminal Type Protection Rating Operation Type Button Shape Operating Ambient Humidity Operating Ambient Temperature (℃) Storage Temperature (℃) Contact Configuration Mounting Hole Diameter (Ømm) Button Color Terminal Screw Contact Material
HW1B-A110B Screw Terminal IP65 Maintained Non-Illuminated Round (Flush) 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1a 22.0 Black Silver Contact
HW1B-A110G Resin Screw Terminal Maintained 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1a 22.0 Green M3.5 Silver Contact
HW1B-M101B Resin IP65 Non-Illuminated Round (Flush) 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1b 22.0 Black M3.5 Silver Contact
HW1B-M101G Resin Screw Terminal IP65 Momentary Non-Illuminated 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1b Green M3.5 Silver Contact
HW1B-M101R Resin Momentary Non-Illuminated Round (Flush) 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1b 22.0 M3.5 Silver Contact
HW1B-M101S Resin Screw Terminal IP65 Momentary Round (Flush) 45 ~ 85 % RH (no condensation) -40 ~ 80 (no freezing) 22.0 Blue M3.5 Silver Contact
HW1B-M101Y Resin IP65 Non-Illuminated Round (Flush) 45 ~ 85 % RH (no condensation) -40 ~ 80 (no freezing) 1b 22.0 Yellow M3.5 Silver Contact
HW1B-M110B Screw Terminal IP65 Momentary Non-Illuminated 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1a Black M3.5 Silver Contact
HW1B-M110G Screw Terminal IP65 Momentary Non-Illuminated 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1a 22.0 Green M3.5 Silver Contact
HW1B-M110R Resin Screw Terminal IP65 Momentary Round (Flush) 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 22.0 Red Silver Contact
HW1B-M110S Screw Terminal Momentary Non-Illuminated Round (Flush) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1a 22.0 Blue M3.5 Silver Contact
HW1B-M110W Resin IP65 Momentary Round (Flush) 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 1a 22.0 White M3.5
HW1B-M110Y Resin Screw Terminal IP65 Non-Illuminated Round (Flush) 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) 1a Yellow M3.5 Silver Contact
HW1B-M111B Screw Terminal IP65 Momentary Non-Illuminated Round (Flush) 45 ~ 85 % RH (no condensation) 1a1b 22.0 Black M3.5 Silver Contact
HW1B-M111G Resin IP65 Momentary Non-Illuminated Round (Flush) 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 22.0 M3.5 Silver Contact
HW1B-M111R Resin IP65 Non-Illuminated Round (Flush) 45 ~ 85 % RH (no condensation) -40 ~ 80 (no freezing) 1a1b 22.0 Red M3.5 Silver Contact
HW1B-M111Y Resin Screw Terminal IP65 Momentary Non-Illuminated -40 ~ 80 (no freezing) 1a1b 22.0 Yellow M3.5 Silver Contact
HW1B-M120G Resin Screw Terminal IP65 Momentary Round (Flush) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 2a Green M3.5 Silver Contact
HW1B-M122R Screw Terminal IP65 Momentary Round (Flush) 45 ~ 85 % RH (no condensation) -25 ~ 60 (no freezing) -40 ~ 80 (no freezing) 2a2b 22.0 Red M3.5 Silver Contact

How to Order

Select the exact part number from the options. IDEC part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About IDEC

IDEC Corporation is a Japanese manufacturer of industrial automation and safety products, known for its control and signaling devices (pushbuttons, pilot lights, emergency stop switches), relays, terminal blocks, circuit protectors, safety components, PLCs and operator interfaces.

Ordering & Shipping

  • Genuine IDEC product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

IDEC HW1B — Ø22 HW Series Pushbutton Switch, Flush, genuine IDEC product.OverviewIDEC control and signaling devices, including pushbuttons, illuminated pushbuttons,... Read more

SKU: HW1B-A110B

$16.15 Excl. VAT
