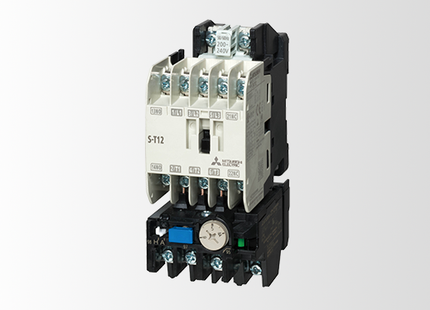

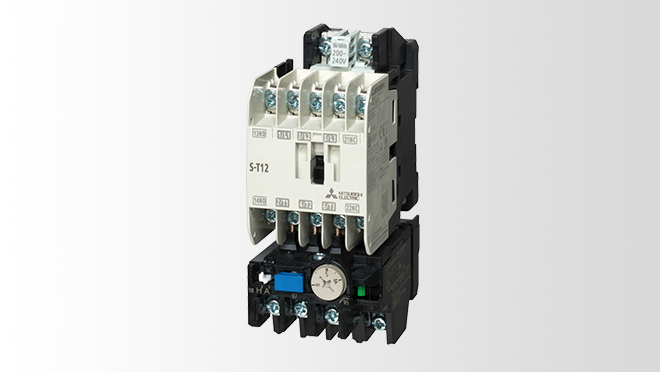

MITSUBISHI ELECTRIC Magnetic Starter MSO-T Series (Part 10)

VendorMITSUBISHI ELECTRIC

Description

MITSUBISHI ELECTRIC MSO-T — Magnetic Starter MSO-T Series, genuine MITSUBISHI ELECTRIC product.

Overview

The MSO-T Series magnetic starter from Mitsubishi Electric combines a compact S-T contactor with a TH-T thermal overload relay in an open-type assembly. The contactor switches the motor while the overload relay trips it if current stays above the set level, protecting windings from burnout. Small frames like the MSO-T10 serve fractional and small motors on fans, pumps and conveyors.

Key Features

Contactor and thermal overload relay pre-assembled
Heater setting matched to motor current
Open type for mounting inside panels
Auxiliary contact options available

Specifications

Part No.	Remarks	Mounting Method	Insulation Voltage (V)	Switching Frequency (ops/h)	Mechanical Durability	Thermal Current (A)	Electrical Durability	Mode
MSO-T21 0.5A 400V AC48V	1PCDFBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.75KW 200V AC24V	1PCDUAK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.75KW 200V AC48V	1PCDUBK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.75KW 400V AC200V	1PCDPDK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.75KW 400V AC24V	1PCDPAK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.75KW 400V AC48V	1PCDPBK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.7A 200V AC200V	1PCDGDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.7A 200V AC24V	1PCDGAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.7A 200V AC48V		Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.7A 400V AC200V	1PCDHDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.7A 400V AC24V	1PCDHAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.7A 400V AC48V	1PCDHBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.9A 200V AC200V	1PCDJDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.9A 200V AC24V	1PCDJAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.9A 200V AC48V	1PCDJBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.9A 400V AC200V	1PCDKDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.9A 400V AC24V	1PCDKAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 0.9A 400V AC48V	1PCDKBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.3A 200V AC200V	1PCDLDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.3A 200V AC24V	1PCDLAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.3A 200V AC48V	1PCDLBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.3A 400V AC200V	1PCDMDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.3A 400V AC24V	1PCDMAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.3A 400V AC48V	1PCDMBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.5KW 200V AC24V	1PCDYAK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.5KW 200V AC48V	1PCDYBK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.5KW 400V AC200V	1PCDVDK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.5KW 400V AC24V	1PCDVAK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.5KW 400V AC48V	1PCDVBK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.7A 200V AC200V	1PCDNDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.7A 200V AC24V	1PCDNAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.7A 200V AC48V	1PCDNBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.7A 400V AC200V	1PCDPDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.7A 400V AC24V	1PCDPAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1.7A 400V AC48V	1PCDPBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 11A 200V AC24V	1PCD3AA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 11A 200V AC48V	1PCD3BA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 11A 400V AC200V	1PCD4DA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 11A 400V AC24V	1PCD4AA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 11A 400V AC48V	1PCD4BA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 15A 200V AC24V	1PCD5AA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 15A 200V AC48V	1PCD5BA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 15A 400V AC200V	1PCD6DA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 15A 400V AC24V	1PCD6AA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 15A 400V AC48V	1PCD6BA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1KW 200V AC200V	1PCDWDK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1KW 200V AC24V	1PCDWAK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1KW 200V AC48V	1PCDWBK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1KW 400V AC200V	1PCDTDK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1KW 400V AC24V	1PCDTAK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 1KW 400V AC48V	1PCDTBK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.1A 200V AC200V	1PCDQDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.1A 200V AC24V	1PCDQAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.1A 200V AC48V	1PCDQBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.1A 400V AC200V	1PCDRDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.1A 400V AC24V	1PCDRAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.1A 400V AC48V	1PCDRBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.2KW 200V AC24V	1PCD1AK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.2KW 200V AC48V	1PCD1BK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.2KW 400V AC200V	1PCDXDK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.2KW 400V AC24V	1PCDXAK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.2KW 400V AC48V	1PCDXBK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.5A 200V AC200V	1PCDSDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.5A 200V AC24V	1PCDSAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.5A 200V AC48V	1PCDSBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.5A 400V AC200V	1PCDTDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.5A 400V AC24V	1PCDTAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 2.5A 400V AC48V	1PCDTBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.6A 200V AC200V	1PC041A	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.6A 200V AC24V	1PCDUAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.6A 200V AC48V	1PCDUBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.6A 400V AC200V	1PCDVDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.6A 400V AC24V	1PCDVAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.6A 400V AC48V	1PCDVBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.7KW 200V AC24V	1PCD5AK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.7KW 200V AC48V	1PCD5BK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.7KW 400V AC200V	1PCDZDK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.7KW 400V AC24V	1PCDZAK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 3.7KW 400V AC48V	1PCDZBK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.0A 200V AC200V	1PCDWDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.0A 200V AC24V	1PCDWAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.0A 200V AC48V	1PCDWBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.0A 400V AC200V	1PCDXDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.0A 400V AC24V	1PCDXAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.0A 400V AC48V	1PCDXBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.5KW 400V AC200V	1PCD4DK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.5KW 400V AC24V	1PCD4AK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 5.5KW 400V AC48V	1PCD4BK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 6.6A 200V AC200V	1PC042A	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 6.6A 200V AC24V	1PCDYAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 6.6A 200V AC48V	1PCDYBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 6.6A 400V AC200V	1PCDZDA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 6.6A 400V AC24V	1PCDZAA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 6.6A 400V AC48V	1PCDZBA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 7.5KW 400V AC200V	1PCD6DK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 7.5KW 400V AC24V	1PCD6AK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 7.5KW 400V AC48V	1PCD6BK	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 9.0A 200V AC200V	1PC043A	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 9.0A 200V AC24V	1PCD1AA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)
MSO-T21 9.0A 200V AC48V	1PCD1BA	Screw, DIN rail	690	[AC-3] 1800	10 million operations	[Main contact] 32, [Auxiliary contact] 10	[AC-3 (domestic rating)] 2 million operations	[Thermal relay protection] 2-element (overload/locked-rotor protection)

How to Order

Specify motor current or kW, supply voltage, coil voltage and auxiliary contact (for example 1B). Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.

Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.

About MITSUBISHI ELECTRIC

Mitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.

Ordering & Shipping

Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution
Ships worldwide from South Korea by FedEx International Priority Express
Lead time varies by model; please inquire for exact delivery
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
