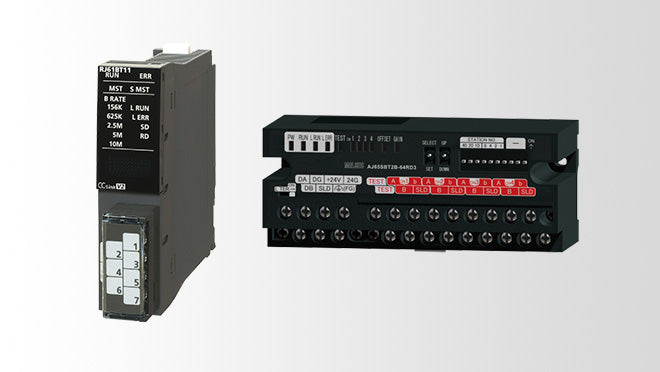

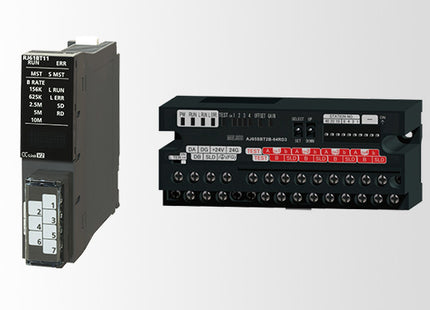

The AJ65SBTB Series screw terminal block type output unit from MITSUBISHI ELECTRIC is a CC-Link remote I/O station with transistor outputs. It is installed near actuators to reduce wiring back to the PLC. Screw terminals make field wiring straightforward for solenoid valves, lamps and relays.
| Part No. |
Type |
View |
No. of Outputs |
Protection Rating |
Response Time |
Current Consumption (mA) |
Insulation Type |
Rated Load Voltage (V) |
Max. Load Current (A) |
Output Type |
Remote Terminal Specification |
CC-Link Version |
| AJ65SBTB1-16T |
Screw terminal block type |
Output: LED |
16 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
50 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 3.6 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB1-16T1 |
Screw terminal block type |
Output: LED |
16 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
50 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 3.6 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB1-16TE |
Screw terminal block type |
Output: LED |
16 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
50 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.1, 1 common: 1.6 |
Transistor output (source) |
Remote I/O unit |
1.1 |
| AJ65SBTB1-32T |
Screw terminal block type |
Output: LED |
32 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
65 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 4.8 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB1-32TE1 |
Screw terminal block type |
Output: LED |
32 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
65 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 4.8 |
Transistor output (source) |
Remote I/O unit |
1.1 |
| AJ65SBTB1-8T |
Screw terminal block type |
Output: LED |
8 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
35 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 2.4 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB1-8T1 |
Screw terminal block type |
Output: LED |
8 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
35 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 2.4 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB1-8TE |
Screw terminal block type |
Output: LED |
8 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
35 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.1, 1 common: 0.8 |
Transistor output (source) |
Remote I/O unit |
1.1 |
| AJ65SBTB1B-16TE1 |
Screw terminal block type |
Output: LED |
16 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
50 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 4 |
Transistor output (source) |
Remote I/O unit |
1.1 |
| AJ65SBTB2-16T |
Screw terminal block type |
Output: LED |
16 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
55 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 3.6 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB2-16T1 |
Screw terminal block type |
Output: LED |
16 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
55 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 3.6 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB2-8T |
Screw terminal block type |
Output: LED |
8 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
45 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 2.4 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB2-8T1 |
Screw terminal block type |
Output: LED |
8 points |
IP2X |
OFF→ON: 0.5ms or less, ON→OFF: 1.5ms or less |
45 |
(Output) photocoupler isolation |
DC12/24 |
1 point: 0.5, 1 common: 2.4 |
Transistor output (sink) |
Remote I/O unit |
1.1 |
| AJ65SBTB2N-16R |
Screw terminal block type |
Output: LED |
16 points |
IP1X |
OFF→ON: 10ms or less, ON→OFF: 12ms or less |
120 |
(Output) relay isolation |
DC24、AC240 |
1 point: 2, 1 common: 8 |
Relay output |
Remote I/O unit |
1.1 |
| AJ65SBTB2N-8R |
Screw terminal block type |
Output: LED |
8 points |
IP1X |
OFF→ON: 10ms or less, ON→OFF: 12ms or less |
85 |
(Output) relay isolation |
DC24、AC240 |
1 point: 2, 1 common: 4 |
Relay output |
Remote I/O unit |
1.1 |
Confirm number of output points, output type and voltage. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.
