Description

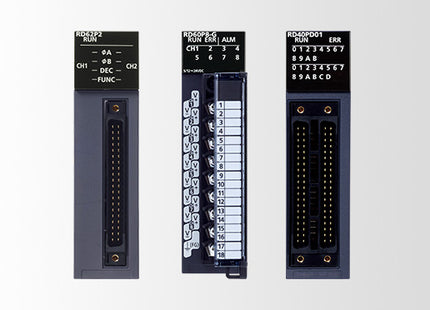

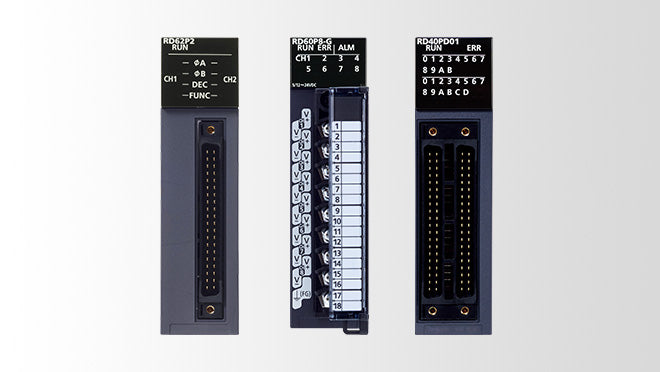

MITSUBISHI ELECTRIC RD62 — High-Speed Counter Unit, genuine MITSUBISHI ELECTRIC product.
Overview
This high-speed counter unit from Mitsubishi Electric counts fast pulse signals from encoders and sensors that standard inputs cannot track. CC-Link remote versions and L Series modules are included. It is used for length measurement, position detection and speed monitoring on machines. Preset and comparison functions allow outputs to switch at set counts.
Key Features
- Counts high-frequency pulse inputs
- Two-channel counting
- Differential or DC input versions
- CC-Link remote or L Series modules
Specifications
| Part No. |
Mass (kg) |
Measurement Items |
No. of Channels |
Current Consumption (A) |
Dimensions (H×W×D) (mm) |
Wiring Method |
External Input |
Compatible Connector |
Counting Range |
Measurement Points (points) |
Occupied I/O Points |
| RD62D2 |
0.12 |
Pulse width (ON width |
OFF width |
rising ~ rising |
falling ~ falling) |
2 channels |
0.17 (DC5V internal) |
106 base unit mounting section 98mm)×27.8×110 |
40-pin connector |
Preset, function start, digital filter |
A6CON1, A6CON2, A6CON4 (sold separately) |
| RD62P2 |
0.11 |
Pulse width (ON width |
OFF width |
rising ~ rising |
falling ~ falling) |
2 channels |
0.11 (DC5V internal) |
106 base unit mounting section 98mm)×27.8×110 |
40-pin connector |
Preset, function start, digital filter |
A6CON1, A6CON2, A6CON4 (sold separately) |
| RD62P2E |
0.12 |
Pulse width (ON width |
OFF width |
rising ~ rising |
falling ~ falling) |
2 channels |
0.20 (DC5V internal) |
106 base unit mounting section 98mm)×27.8×110 |
40-pin connector |
Preset, function start, digital filter |
A6CON1, A6CON2, A6CON4 (sold separately) |
How to Order
Check the input type (DC or differential), counting speed and the system bus (CC-Link or L Series). Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.
About MITSUBISHI ELECTRIC
Mitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.
Ordering & Shipping
- Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
