Description
MITSUBISHI ELECTRIC FX5-4DA-ADP — Analog Output Expansion Adapter (D/A Conversion), genuine MITSUBISHI ELECTRIC product.
Overview
The MITSUBISHI ELECTRIC FX5-4DA-ADP is an analog output expansion adapter for MELSEC iQ-F Series compact PLCs. It converts digital values from the program into voltage or current signals for inverters, valves and recorders. It attaches to the side of the CPU module without using an expansion slot, saving space on small machines.
Key Features
- Four analog output channels
- Voltage and current output
- Attaches to FX5 CPU side
Specifications
| Part No. |
Mass (kg) |
Withstand Voltage |
Compatible Unit Type |
Output Voltage (V) |
Output Current (A) |
No. of Outputs |
Input |
Connection Type |
Conversion Speed |
| FX5-4DA-ADP |
Approx. 0.1 |
Between all terminals and ground terminal: AC500V for 1 minute |
FX5U, FX5UC, supported from first production |
[Analog] DC-10~+10 (external load resistance 1k~1MΩ) |
[Analog] DC0~0.02 (external load resistance 0~500Ω) |
4 points (4 channels) |
[Digital] 14-bit binary |
European-type terminal block |
Max 950μs (data updated every operation cycle) |
How to Order
Confirm the CPU model and output ranges. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.

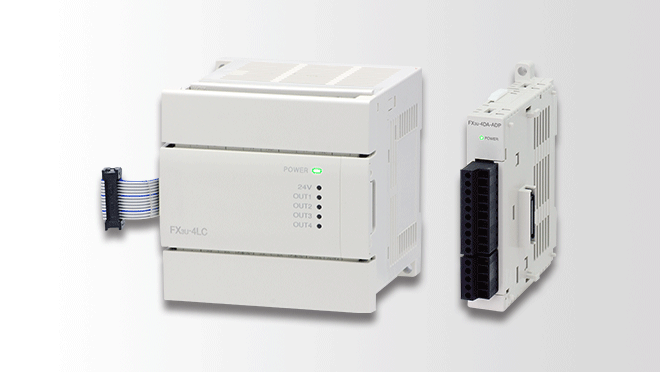

Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.
