Description

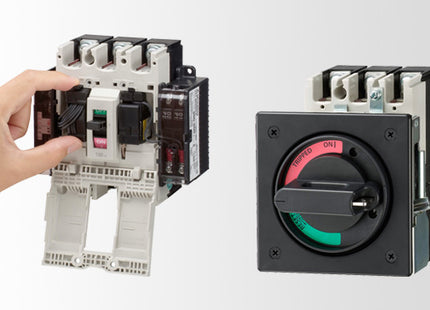

MITSUBISHI ELECTRIC AX-05SMU — Auxiliary Switch, genuine MITSUBISHI ELECTRIC product.
Overview

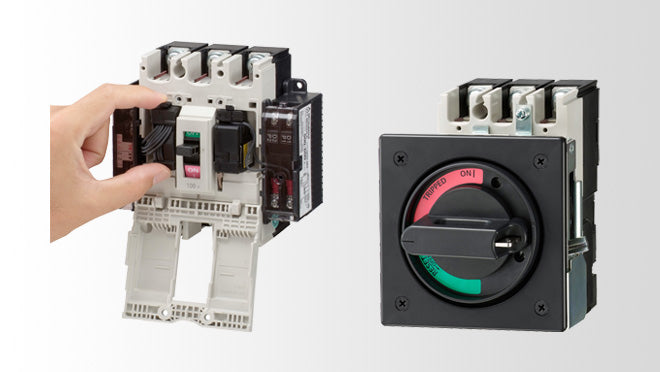

The AX-05SMU is an auxiliary switch from Mitsubishi Electric for molded case and earth leakage circuit breakers. Fitted inside the breaker, it provides contacts that change state with the breaker's main contacts, signaling ON/OFF status to PLCs, indicators or interlocks. It is used in switchboards that need remote breaker status monitoring.
Key Features
- Signals breaker ON/OFF status
- Internal mounting in the breaker
- Supports interlock and indication circuits
- Matched to breaker frame
Specifications
| Part No. |
Mass (kg) |
Contact Configuration |
Connection |
Dimension a (mm) |
Dimension b (mm) |
Dimension c (mm) |
Dimension ca (mm) |
Terminal Position |
| AX-05SMU |
0.05 |
1c |
Terminal screw M3.5 |
9 |
92 |
44 |
70 |
Load side |
How to Order
Confirm the breaker frame and contact configuration. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.
About MITSUBISHI ELECTRIC
Mitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.
Ordering & Shipping
- Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
