Description
MITSUBISHI ELECTRIC NV125-SV 4P — Earth Leakage Circuit Breaker NV-S Class (General Purpose), genuine MITSUBISHI ELECTRIC product.
Overview
The MITSUBISHI ELECTRIC NV-S class general-purpose earth leakage circuit breaker combines overload, short-circuit and ground fault protection in one device. The S class offers standard breaking capacity suited to most industrial and commercial distribution circuits. It is used in switchboards, distribution panels and machine control panels.
Key Features
- Overcurrent and earth leakage protection combined
- Standard breaking capacity class
- Selectable sensitivity on many models
Specifications
| Part No. |
Specification |
Rated Voltage (V) |
Rated Current (A) |
Connection Method |
Phase/Wire System |
Rated Impulse Withstand Voltage (kV) |
Rated Sensitivity Current (mA) |
Earth Leakage Indication Method |
Dimension a (mm) |
Dimension b (mm) |
Dimension c (mm) |
| NV125-SV 4P 100A 200-440V 1.2.500MA |
- |
AC200-440 |
100 |
Surface type (F), rear type (B), flush type (FP), plug-in type (PM) |
3Ø4W |
6 |
100/200/500 switchable |
Mechanical button |
120 |
130 |
68 |
| NV125-SV 4P 75A 200-440V 1.2.500MA |
- |
AC200-440 |
75 |
Surface type (F), rear type (B), flush type (FP), plug-in type (PM) |
3Ø4W |
6 |
100/200/500 switchable |
Mechanical button |
120 |
130 |
68 |
How to Order
Confirm the frame, number of poles, rated current, voltage and sensitivity current. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.

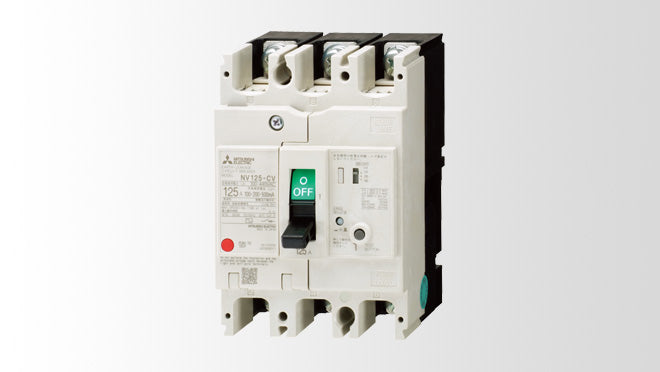

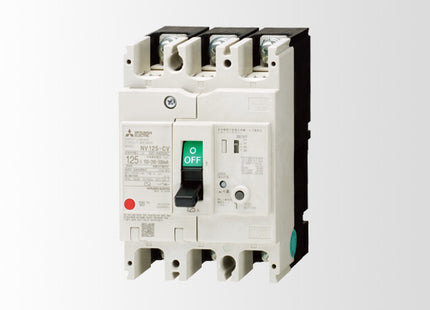

Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.
