Description
MITSUBISHI ELECTRIC DSN800-HDW — Molded Case Switch DSN800-HDW, genuine MITSUBISHI ELECTRIC product.
Overview
The DSN800-HDW is a Mitsubishi Electric molded case switch in the 800A frame rated for DC circuits up to 750V. It switches and isolates high-voltage DC lines, such as photovoltaic arrays, battery storage and DC distribution systems, where arc interruption is more demanding than in AC circuits.
Key Features
- 800A frame for DC circuits
- Rated for high DC voltage
- Switching and isolation function
- For photovoltaic and battery systems
Specifications
| Part No. |
No. of Poles |
RoHS Directive (10 Substances) |
| DSN800-HDW 3P 800A DC750V |
3 |
Compliant |
| DSN800-HDW 3P 800A DC750V B |
3 |
Compliant |
| DSN800-HDW 4P 800A DC1000V |
4 |
Compliant |
| DSN800-HDW 4P 800A DC1000V B |
4 |
Compliant |
How to Order
Confirm DC voltage, rated current, number of poles and polarity wiring. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.

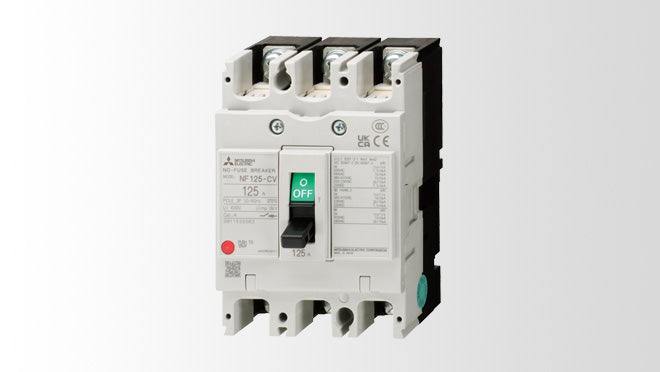

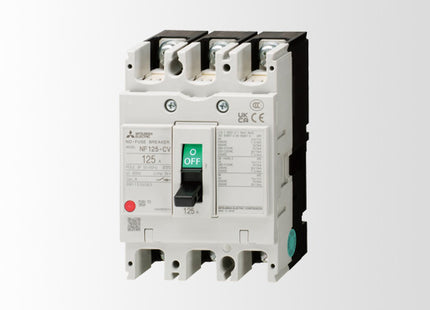

Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.
About MITSUBISHI ELECTRIC
Mitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.
Ordering & Shipping
- Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
- High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.
