Description

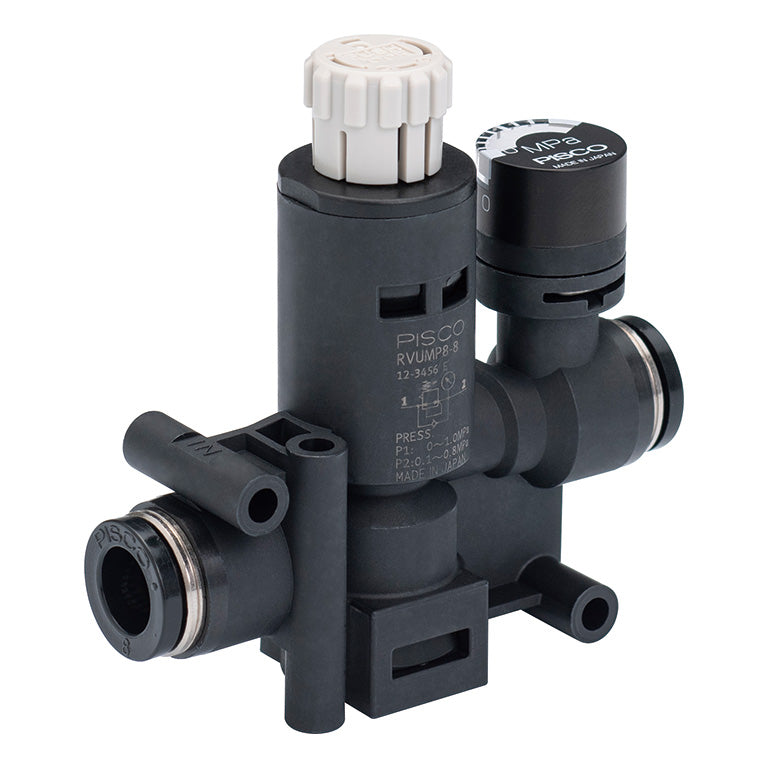

PISCO RVUMP — Compact Regulator Push Lock Type Union with Gauge, genuine PISCO product.
Overview
PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.
Key Features
- Genuine PISCO flow control component
- Select by tube OD, thread and flow direction
- Compact design
Specifications
| Part No. |
Shape |
Color |
Operating Pressure Range (MPa) |
Operating Temperature Range (˚C) |
Compatible Tube O.D. |
Accuracy |
Fluid |
Operating Pressure Range |
Set Pressure Range (MPa) |
Display Pressure Range |
Display Pressure Range (MPa) |
Set Pressure Range |
| RVUMP1/4-1/4 |
Union with Gauge |
Release Ring: White |
|
0~60 (no freezing) |
(1)1/4、(2)1/4 |
Gauge: ±5% (F.S) |
Air |
0～145psi |
|
0～116psi |
|
14.5～116psi |
| RVUMP1/4-5/32 |
Union with Gauge |
Release Ring: White |
|
0~60 (no freezing) |
(1)1/4、(2)5/32 |
Gauge: ±5% (F.S) |
Air |
0～145psi |
|
0～116psi |
|
14.5～116psi |
| RVUMP4-4 |
Union with Gauge |
|
0～1.0 |
0~60 (no freezing) |
(1)4、(2)4 |
Gauge: ±5% (F.S) |
Air |
|
0.1～0.8 |
|
0～0.8 |
|
| RVUMP5/16-1/4 |
Union with Gauge |
Release Ring: White |
|
0~60 (no freezing) |
(1)5/16、(2)1/4 |
Gauge: ±5% (F.S) |
Air |
0～145psi |
|
0～116psi |
|
14.5～116psi |
| RVUMP5/16-5/16 |
Union with Gauge |
Release Ring: White |
|
0~60 (no freezing) |
(1)5/16、(2)5/16 |
Gauge: ±5% (F.S) |
Air |
0～145psi |
|
0～116psi |
|
14.5～116psi |
| RVUMP5/32-5/32 |
Union with Gauge |
Release Ring: White |
|
0~60 (no freezing) |
(1)5/32、(2)5/32 |
Gauge: ±5% (F.S) |
Air |
0～145psi |
|
0～116psi |
|
14.5～116psi |
| RVUMP6-4 |
Union with Gauge |
|
0～1.0 |
0~60 (no freezing) |
(1)6、(2)4 |
Gauge: ±5% (F.S) |
Air |
|
0.1～0.8 |
|
0～0.8 |
|
| RVUMP6-6 |
Union with Gauge |
|
0～1.0 |
0~60 (no freezing) |
(1)6、(2)6 |
Gauge: ±5% (F.S) |
Air |
|
0.1～0.8 |
|
0～0.8 |
|
| RVUMP8-6 |
Union with Gauge |
|
0～1.0 |
0~60 (no freezing) |
(1)8、(2)6 |
Gauge: ±5% (F.S) |
Air |
|
0.1～0.8 |
|
0～0.8 |
|
| RVUMP8-8 |
Union with Gauge |
|
0～1.0 |
0~60 (no freezing) |
(1)8、(2)8 |
Gauge: ±5% (F.S) |
Air |
|
0.1～0.8 |
|
0～0.8 |
|
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
