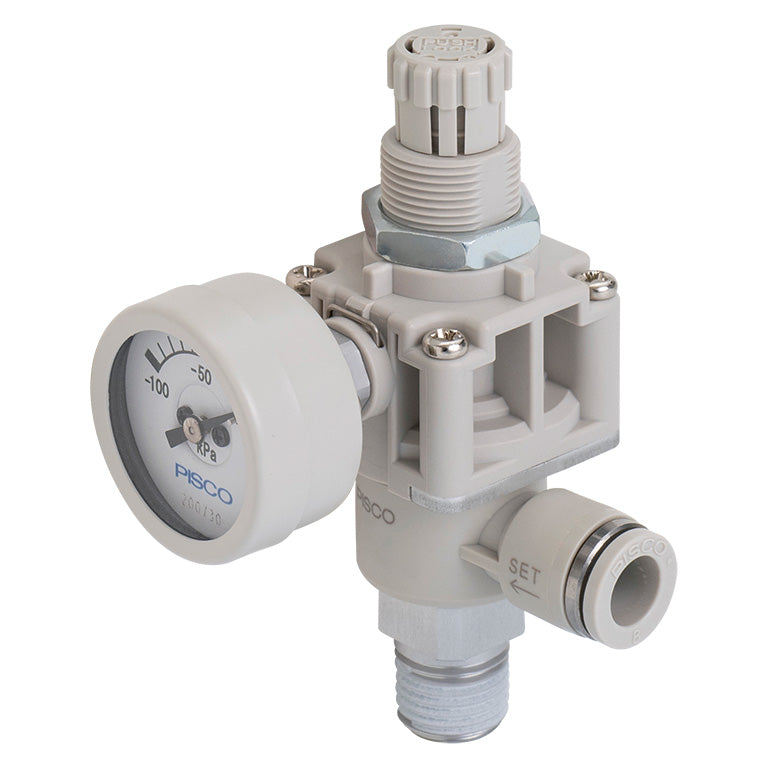

PISCO Vacuum Regulator Push Lock Type, RVZ

Description

PISCO RVZ — Vacuum Regulator Push Lock Type, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

  • Genuine PISCO vacuum component
  • Select by pad diameter, material and mounting
  • Wide range of buffers and fittings

Specifications

Part No. Shape Tube O.D. (Ø) Operating Temperature Range (˚C) Control Direction Bracket Max. Suction Flow (L/min) Fluid Operating Pressure Range (kPa) Compatible Thread Size RoHS Directive (10 Substances) Pressure Display
RVZ6AG Type A Ø6 0~40 (no freezing) Fitting→Thread None 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
RVZ6AGB Type A Ø6 0~40 (no freezing) Fitting→Thread Yes 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
RVZ6AM Type A Ø6 0~50 (no freezing) Fitting→Thread None 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ6AMB Type A Ø6 0~50 (no freezing) Fitting→Thread Yes 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ6AV5 Type A Ø6 0~50 (no freezing) Fitting→Thread None 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
RVZ6AV5B Type A Ø6 0~50 (no freezing) Fitting→Thread Yes 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
RVZ6BG Type B Ø6 0~40 (no freezing) Thread→Fitting None 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
RVZ6BGB Type B Ø6 0~40 (no freezing) Thread→Fitting Yes 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
RVZ6BM Type B Ø6 0~50 (no freezing) Thread→Fitting None 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ6BMB Type B Ø6 0~50 (no freezing) Thread→Fitting Yes 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ6BV5 Type B Ø6 0~50 (no freezing) Thread→Fitting None 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
RVZ6BV5B Type B Ø6 0~50 (no freezing) Thread→Fitting Yes 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
RVZ6UG Union Type Ø6 0~40 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～0 Compatibility Ø30mm Vacuum Gauge
RVZ6UM Union Type Ø6 0~50 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～100 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ6UV5 Union Type Ø6 0~50 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～100 Compatibility Pressure Sensor with Dual Digital Display
RVZ8AG Type A Ø8 0~40 (no freezing) Fitting→Thread None 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
RVZ8AGB Type A Ø8 0~40 (no freezing) Fitting→Thread Yes 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
RVZ8AM Type A Ø8 0~50 (no freezing) Fitting→Thread None 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ8AMB Type A Ø8 0~50 (no freezing) Fitting→Thread Yes 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ8AV5 Type A Ø8 0~50 (no freezing) Fitting→Thread None 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
RVZ8AV5B Type A Ø8 0~50 (no freezing) Fitting→Thread Yes 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
RVZ8BG Type B Ø8 0~40 (no freezing) Thread→Fitting None 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
RVZ8BGB Type B Ø8 0~40 (no freezing) Thread→Fitting Yes 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
RVZ8BM Type B Ø8 0~50 (no freezing) Thread→Fitting None 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ8BMB Type B Ø8 0~50 (no freezing) Thread→Fitting Yes 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ8BV5 Type B Ø8 0~50 (no freezing) Thread→Fitting None 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
RVZ8BV5B Type B Ø8 0~50 (no freezing) Thread→Fitting Yes 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
RVZ8UG Union Type Ø8 0~40 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～0 Compatibility Ø30mm Vacuum Gauge
RVZ8UM Union Type Ø8 0~50 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～100 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
RVZ8UV5 Union Type Ø8 0~50 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～100 Compatibility Pressure Sensor with Dual Digital Display

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

PISCO RVZ — Vacuum Regulator Push Lock Type, genuine PISCO product.OverviewPISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories... Read more

SKU: RVZ6AG

$133.07 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    PISCO RVZ — Vacuum Regulator Push Lock Type, genuine PISCO product.

    Overview

    PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

    Key Features

    • Genuine PISCO vacuum component
    • Select by pad diameter, material and mounting
    • Wide range of buffers and fittings

    Specifications

    Part No. Shape Tube O.D. (Ø) Operating Temperature Range (˚C) Control Direction Bracket Max. Suction Flow (L/min) Fluid Operating Pressure Range (kPa) Compatible Thread Size RoHS Directive (10 Substances) Pressure Display
    RVZ6AG Type A Ø6 0~40 (no freezing) Fitting→Thread None 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
    RVZ6AGB Type A Ø6 0~40 (no freezing) Fitting→Thread Yes 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
    RVZ6AM Type A Ø6 0~50 (no freezing) Fitting→Thread None 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ6AMB Type A Ø6 0~50 (no freezing) Fitting→Thread Yes 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ6AV5 Type A Ø6 0~50 (no freezing) Fitting→Thread None 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
    RVZ6AV5B Type A Ø6 0~50 (no freezing) Fitting→Thread Yes 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
    RVZ6BG Type B Ø6 0~40 (no freezing) Thread→Fitting None 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
    RVZ6BGB Type B Ø6 0~40 (no freezing) Thread→Fitting Yes 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
    RVZ6BM Type B Ø6 0~50 (no freezing) Thread→Fitting None 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ6BMB Type B Ø6 0~50 (no freezing) Thread→Fitting Yes 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ6BV5 Type B Ø6 0~50 (no freezing) Thread→Fitting None 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
    RVZ6BV5B Type B Ø6 0~50 (no freezing) Thread→Fitting Yes 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
    RVZ6UG Union Type Ø6 0~40 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～0 Compatibility Ø30mm Vacuum Gauge
    RVZ6UM Union Type Ø6 0~50 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～100 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ6UV5 Union Type Ø6 0~50 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～100 Compatibility Pressure Sensor with Dual Digital Display
    RVZ8AG Type A Ø8 0~40 (no freezing) Fitting→Thread None 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
    RVZ8AGB Type A Ø8 0~40 (no freezing) Fitting→Thread Yes 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
    RVZ8AM Type A Ø8 0~50 (no freezing) Fitting→Thread None 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ8AMB Type A Ø8 0~50 (no freezing) Fitting→Thread Yes 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ8AV5 Type A Ø8 0~50 (no freezing) Fitting→Thread None 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
    RVZ8AV5B Type A Ø8 0~50 (no freezing) Fitting→Thread Yes 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
    RVZ8BG Type B Ø8 0~40 (no freezing) Thread→Fitting None 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
    RVZ8BGB Type B Ø8 0~40 (no freezing) Thread→Fitting Yes 30 Air -100～0 R1/4 Compatibility Ø30mm Vacuum Gauge
    RVZ8BM Type B Ø8 0~50 (no freezing) Thread→Fitting None 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ8BMB Type B Ø8 0~50 (no freezing) Thread→Fitting Yes 30 Air -100～100 R1/4 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ8BV5 Type B Ø8 0~50 (no freezing) Thread→Fitting None 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
    RVZ8BV5B Type B Ø8 0~50 (no freezing) Thread→Fitting Yes 30 Air -100～100 R1/4 Compatibility Pressure Sensor with Dual Digital Display
    RVZ8UG Union Type Ø8 0~40 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～0 Compatibility Ø30mm Vacuum Gauge
    RVZ8UM Union Type Ø8 0~50 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～100 Compatibility No Pressure Display (M5×0.8 Female Thread Spec)
    RVZ8UV5 Union Type Ø8 0~50 (no freezing) Fitting (Bottom)→Fitting (Top) None 30 Air -100～100 Compatibility Pressure Sensor with Dual Digital Display

    How to Order

    Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

    About PISCO

    PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

    Ordering & Shipping

    • Genuine PISCO product sourced through Korean distribution
    • Lead time varies by model; most items ship within 2-3 weeks
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
