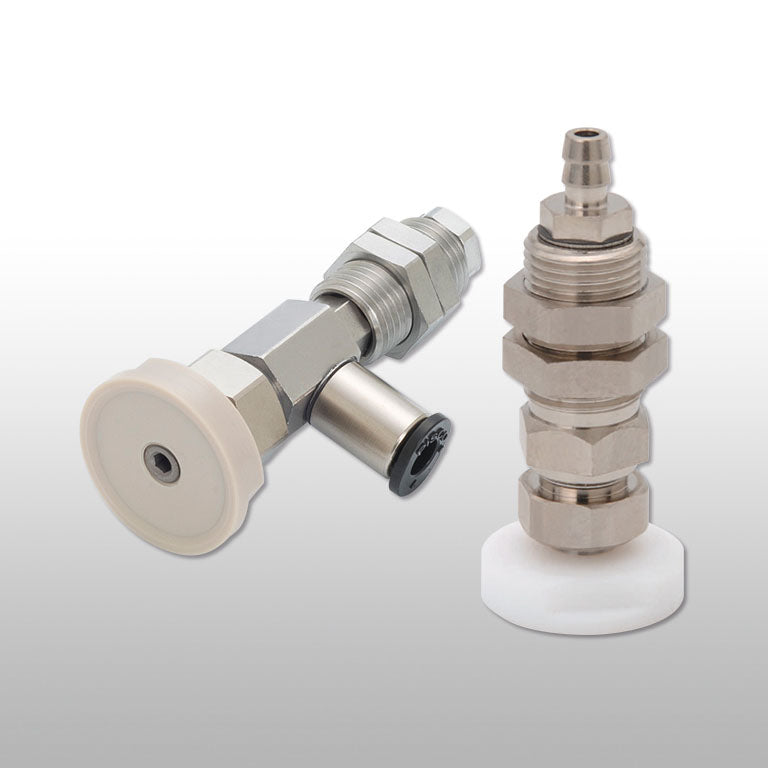

PISCO Vacuum Pad Mark-Free Type Fixed Type Port Top, VPA

Description

PISCO VPA — Vacuum Pad Mark-Free Type Fixed Type Port Top, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

  • Genuine PISCO vacuum component
  • Select by pad diameter, material and mounting
  • Wide range of buffers and fittings

Specifications

Part No. Option Operating Temperature Range (˚C) O.D. × I.D. (Ømm) Fluid Pad Size (mm) Holder Surface Resistance (Ω) Operating Vacuum Pressure (kPa) Pad Dia. (Ømm) Port Direction Material (Pad) Pad Shape Fitting
VPA10QK-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 10 Top PEEK Mark-Free Type Push-to-Connect Fitting
VPA10QK-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 10 Top PEEK Mark-Free Type Push-to-Connect Fitting
VPA10QKE-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type 10^7 or less 0～-100 10 Top Conductive PEEK Mark-Free Type Push-to-Connect Fitting
VPA10QKE-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type 10^7 or less 0～-100 10 Top Conductive PEEK Mark-Free Type Push-to-Connect Fitting
VPA10QM-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 10 Top POM Mark-Free Type Push-to-Connect Fitting
VPA10QM-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 10 Top POM Mark-Free Type Push-to-Connect Fitting
VPA20QK-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 20 Top PEEK Mark-Free Type Push-to-Connect Fitting
VPA20QK-6J-ECV Drop Prevention Valve 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 20 Top PEEK Mark-Free Type
VPA20QK-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 20 Top PEEK Mark-Free Type Push-to-Connect Fitting
VPA20QKE-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type 10^7 or less 0～-100 20 Top Conductive PEEK Mark-Free Type Push-to-Connect Fitting
VPA20QKE-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type 10^7 or less 0～-100 20 Top Conductive PEEK Mark-Free Type Push-to-Connect Fitting
VPA20QM-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 20 Top POM Mark-Free Type Push-to-Connect Fitting
VPA20QM-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 20 Top POM Mark-Free Type Push-to-Connect Fitting
VPA30QK-6B 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 30 Top PEEK Mark-Free Type Barb Fitting
VPA30QK-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 30 Top PEEK Mark-Free Type Push-to-Connect Fitting
VPA30QK-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 30 Top PEEK Mark-Free Type Push-to-Connect Fitting
VPA30QKE-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type 10^7 or less 0～-100 30 Top Conductive PEEK Mark-Free Type Push-to-Connect Fitting
VPA30QKE-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type 10^7 or less 0～-100 30 Top Conductive PEEK Mark-Free Type Push-to-Connect Fitting
VPA30QM-6J 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 30 Top POM Mark-Free Type Push-to-Connect Fitting
VPA30QM-6J-S3 0～60 6×4 Air Ø10～Ø30 Fixed Type - 0～-100 30 Top POM Mark-Free Type Push-to-Connect Fitting

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
