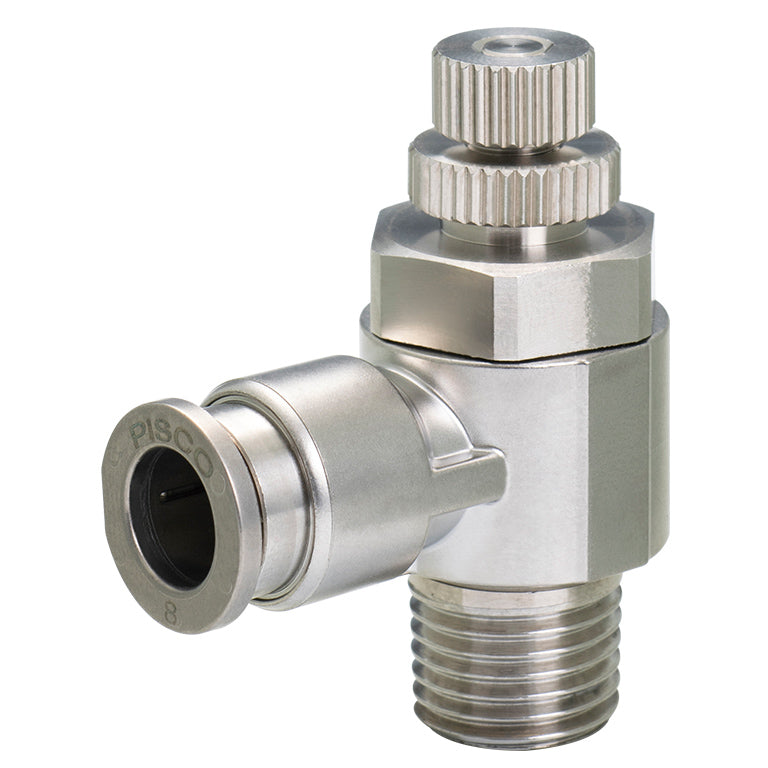

PISCO Throttle Valve SUS316, SSJNC

Description

PISCO SSJNC — Throttle Valve SUS316, genuine PISCO product.

Overview

PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.

Key Features

  • Genuine PISCO flow control component
  • Select by tube OD, thread and flow direction
  • Compact design

Specifications

Part No. Shape Tube O.D. (Ø) Seal Operating Temperature Range (˚C) Max. Operating Pressure (MPa) Thread Type Connection Thread Fluid Operating Vacuum Pressure (kPa) RoHS Directive (10 Substances) Grease
SSJNC10-02 Elbow 10 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/4 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC10-02-TP Elbow 10 Threaded Part: Yes -5~150 (no freezing) 1.0 R (R)PT1/4 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC10-02-X Elbow 10 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/4 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC10-03 Elbow 10 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT3/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC10-03-TP Elbow 10 Threaded Part: Yes -5~150 (no freezing) 1.0 R (R)PT3/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC10-03-X Elbow 10 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT3/8 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC12-03 Elbow 12 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT3/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC12-03-TP Elbow 12 Threaded Part: Yes -5~150 (no freezing) 1.0 R (R)PT3/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC12-03-X Elbow 12 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT3/8 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC12-04 Elbow 12 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/2 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC12-04-X Elbow 12 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/2 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC16-04 Elbow 16 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/2 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC16-04-X Elbow 16 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/2 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC4-01 Elbow 4 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC4-01-TP Elbow 4 Threaded Part: Yes -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC4-01-X Elbow 4 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC6-01 Elbow 6 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC6-01-TP Elbow 6 Threaded Part: Yes -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC6-01-X Elbow 6 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC6-01-X-TP Elbow 6 Threaded Part: Yes -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC8-01 Elbow 8 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC8-01-TP Elbow 8 Threaded Part: Yes -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC8-01-X Elbow 8 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/8 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)
SSJNC8-02 Elbow 8 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/4 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC8-02-TP Elbow 8 Threaded Part: Yes -5~150 (no freezing) 1.0 R (R)PT1/4 Air, Water, Other Chemicals, etc. -100 Compatibility Oil-Free (fluorine coating on seal rubber)
SSJNC8-02-X Elbow 8 Threaded Part: None -5~150 (no freezing) 1.0 R (R)PT1/4 Air, Water, Other Chemicals, etc. -100 Compatibility Fluorine Grease (applied to seal rubber)

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
