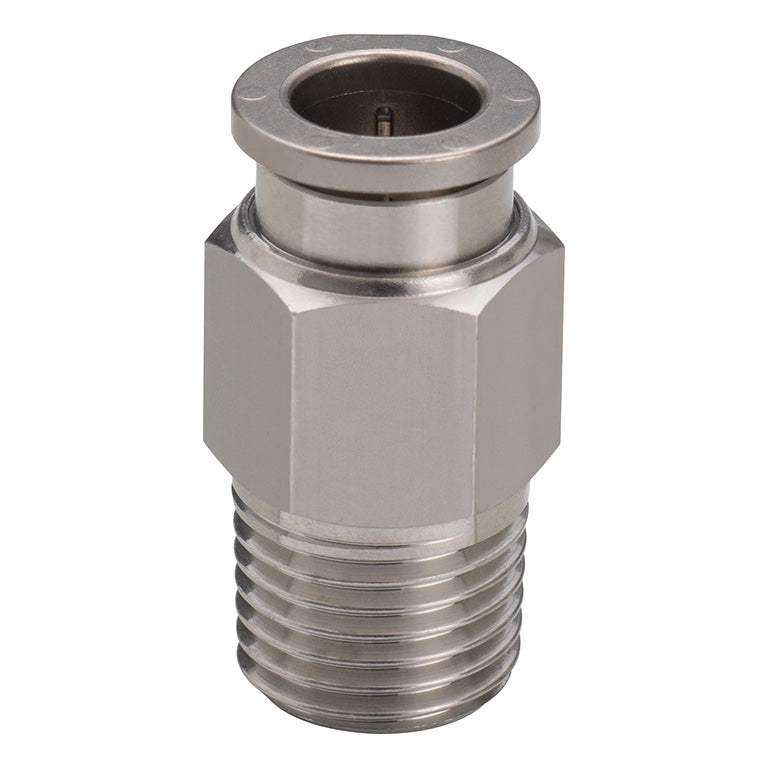

PISCO Stainless SUS316 Fitting Straight, SSPC

Description

PISCO SSPC — Stainless SUS316 Fitting Straight, genuine PISCO product.

Overview

PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.

Key Features

  • Genuine PISCO fitting
  • Select by tube OD and connection thread (R, Rc, G, M, UNF)
  • Fast one-touch tube connection

Specifications

Part No. TRUSCO No. Option Shape Material Connection Size Mass (g) Size (L, mm) Overall Length (mm) Tube O.D. (Ø) Dimension H (mm) Material (Seal) Operating Temperature Range (˚C) Hex Width Across Flats (mm) Dimension A (mm) Orifice Dia. (Ømm) Max. Operating Pressure (MPa) Surface Treatment (Thread) Dimension B (mm) Fluid Dimension C (mm) Tube O.D. (Ømm) Fluid Temperature (℃) Dimension R Compatible Tube O.D. D (Ømm)
SSPC10-02 Straight SUS316 22 22.8 17 FKM 11 8.5 28.8 19.7 10 R1/4
SSPC10-02-TP Threaded Part: Seal Tape Spec Straight SUS316 22 22.8 17 FKM 11 8.5 28.8 19.7 10
SSPC10-02-X Fluorine Grease Spec Straight SUS316 22 22.8 17 FKM 11 8.5 28.8 19.7 10
SSPC10-02-X-TP Fluorine Grease Spec, Threaded Part: Seal Tape Spec Straight SUS316 22 22.8 17 FKM 11 8.5 28.8 19.7 10
SSPC10-03 Straight SUS316 27 22 17 FKM 12 8.5 28.3 19.7 10 R3/8
SSPC10-03-TP Threaded Part: Seal Tape Spec Straight SUS316 27 22 17 FKM 12 8.5 28.3 19.7 10
SSPC10-03-X Fluorine Grease Spec Straight SUS316 27 22 17 FKM 12 8.5 28.3 19.7 10
SSPC10-03-X-TP Fluorine Grease Spec, Threaded Part: Seal Tape Spec Straight SUS316 27 22 17 FKM 12 8.5 28.3 19.7 10
SSPC12-03 Straight SUS316 36 24.9 21 FKM 12 11 31.2 23.3 12 R3/8
SSPC12-03-TP Threaded Part: Seal Tape Spec Straight SUS316 36 24.9 21 FKM 12 11 31.2 23.3 12
SSPC12-03-X Fluorine Grease Spec Straight SUS316 36 24.9 21 FKM 12 11 31.2 23.3 12
SSPC12-04 Straight SUS316 50 25.5 21 FKM 15 11 33.7 23.3 12 R1/2
SSPC12-04-TP Threaded Part: Seal Tape Spec Straight SUS316 50 25.5 21 FKM 15 11 33.7 23.3 12
SSPC12-04-X Fluorine Grease Spec Straight SUS316 50 25.5 21 FKM 15 11 33.7 23.3 12
SSPC12-04-X-TP Fluorine Grease Spec, Threaded Part: Seal Tape Spec Straight SUS316 50 25.5 21 FKM 15 11 33.7 23.3 12
SSPC16-04 249-2862 Metal Body: Stainless (SUS316), Seal Rubber: Fluororubber (FKM) R1/2 39.6 16 -5~150 (no freezing) 24 1.0 SUS316 Air, Water (conditional), Other Chemicals, etc. (conditional) -5~150 (no freezing) 16
SSPC16-04-TP Threaded Part: Seal Tape Spec Straight SUS316 63 31.4 24 FKM 15 13 39.6 24 16
SSPC16-04-X Fluorine Grease Spec Straight SUS316 63 31.4 24 FKM 15 13 39.6 24 16
SSPC16-04-X-TP Fluorine Grease Spec, Threaded Part: Seal Tape Spec Straight SUS316 63 31.4 24 FKM 15 13 39.6 24 16
SSPC4-01 Straight SUS316 6.8 13.8 10 FKM 8 3 17.8 14.9 4 R1/8
SSPC4-01-TP Threaded Part: Seal Tape Spec Straight SUS316 6.8 13.8 10 FKM 8 3 17.8 14.9 4
SSPC4-01-X Fluorine Grease Spec Straight SUS316 6.8 13.8 10 FKM 8 3 17.8 14.9 4
SSPC4-01-X-TP Fluorine Grease Spec, Threaded Part: Seal Tape Spec Straight SUS316 6.8 13.8 10 FKM 8 3 17.8 14.9 4
SSPC4-M5 Straight SUS316 7 17 10 FKM 3 2.4 20 14.9 4 M5×0.8
SSPC4-M5-X Fluorine Grease Spec Straight SUS316 7 17 10 FKM 3 2.4 20 14.9 4
SSPC6-01 249-2857 Metal Body: Stainless (SUS316), Seal Rubber: Fluororubber (FKM) R1/8 21.9 6 -5~150 (no freezing) 12 1.0 SUS316 Air, Water (conditional), Other Chemicals, etc. (conditional) -5~150 (no freezing) 6
SSPC6-01-TP Threaded Part: Seal Tape Spec Straight SUS316 9.8 17.9 12 FKM 8 4.6 21.9 16.8 6
SSPC6-01-X Fluorine Grease Spec Straight SUS316 9.8 17.9 12 FKM 8 4.6 21.9 16.8 6
SSPC6-01-X-TP Fluorine Grease Spec, Threaded Part: Seal Tape Spec Straight SUS316 9.8 17.9 12 FKM 8 4.6 21.9 16.8 6
SSPC6-02 Straight SUS316 18 18.8 14 FKM 11 5 24.9 16.8 6 R1/4
SSPC6-02-TP Threaded Part: Seal Tape Spec Straight SUS316 18 18.8 14 FKM 11 5 24.9 16.8 6
SSPC6-02-X Fluorine Grease Spec Straight SUS316 18 18.8 14 FKM 11 5 24.9 16.8 6
SSPC6-02-X-TP Fluorine Grease Spec, Threaded Part: Seal Tape Spec Straight SUS316 18 18.8 14 FKM 11 5 24.9 16.8 6
SSPC6-M5 Straight SUS316 11 19.8 12 FKM 3 2.4 22.8 16.8 6 M5×0.8
SSPC6-M5-X Fluorine Grease Spec Straight SUS316 11 19.8 12 FKM 3 2.4 22.8 16.8 6
SSPC8-01 Straight SUS316 14 21.8 14 FKM 8 6 25.8 17.8 8 R1/8
SSPC8-01-TP Threaded Part: Seal Tape Spec Straight SUS316 14 21.8 14 FKM 8 6 25.8 17.8 8
SSPC8-01-X Fluorine Grease Spec Straight SUS316 14 21.8 14 FKM 8 6 25.8 17.8 8
SSPC8-01-X-TP Fluorine Grease Spec, Threaded Part: Seal Tape Spec Straight SUS316 14 21.8 14 FKM 8 6 25.8 17.8 8
SSPC8-02 Straight SUS316 20 22.8 14 FKM 11 6 28.8 17.8 8 R1/4
SSPC8-02-TP Threaded Part: Seal Tape Spec Straight SUS316 20 22.8 14 FKM 11 6 28.8 17.8 8
SSPC8-02-X Fluorine Grease Spec Straight SUS316 20 22.8 14 FKM 11 6 28.8 17.8 8

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
