PISCO Stainless SUS316 Fitting Elbow, SSPL

Description

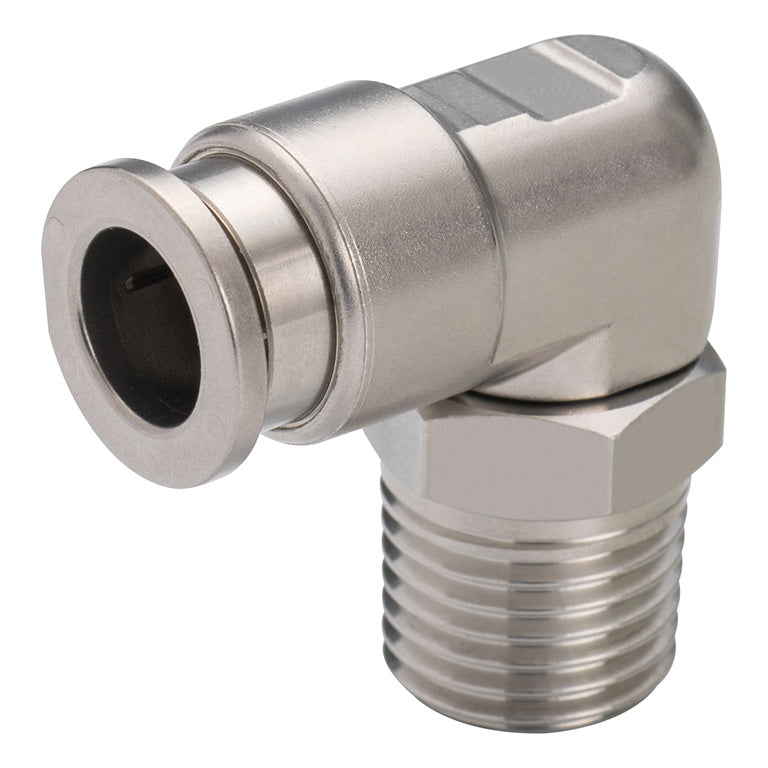

PISCO SSPL — Stainless SUS316 Fitting Elbow, genuine PISCO product.

Overview

PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.

Key Features

  • Genuine PISCO fitting
  • Select by tube OD and connection thread (R, Rc, G, M, UNF)
  • Fast one-touch tube connection

Specifications

Part No. Material Option Shape Mass (g) Size (L, mm) Dimension H (mm) Material (Seal) Dimension A (mm) Orifice Dia. (Ømm) Dimension E (mm) Dimension B (mm) Dimension C (mm) Tube O.D. (Ømm)
SSPL10-02 SUS316 Elbow 34 26.9 14 FKM 11 8 24.8 24.5 19.7 10
SSPL10-02-TP SUS316 Threaded Part: Seal Tape Spec Elbow 34 26.9 14 FKM 11 8 24.8 24.5 19.7
SSPL10-02-X SUS316 Fluorine Grease Spec Elbow 34 26.9 14 FKM 11 8 24.8 24.5 19.7
SSPL10-02-X-TP SUS316 Fluorine Grease Spec, Threaded Part: Seal Tape Spec Elbow 34 26.9 14 FKM 11 8 24.8 24.5 19.7
SSPL10-03 SUS316 Elbow 44 30.1 17 FKM 12 8 24.8 28 19.7 10
SSPL10-03-TP SUS316 Threaded Part: Seal Tape Spec Elbow 44 30.1 17 FKM 12 8 24.8 28 19.7
SSPL10-03-X SUS316 Fluorine Grease Spec Elbow 44 30.1 17 FKM 12 8 24.8 28 19.7
SSPL10-03-X-TP SUS316 Fluorine Grease Spec, Threaded Part: Seal Tape Spec Elbow 44 30.1 17 FKM 12 8 24.8 28 19.7
SSPL12-03 SUS316 Elbow 59 33.1 17 FKM 12 10 29.4 29.5 23.3 12
SSPL12-03-TP SUS316 Threaded Part: Seal Tape Spec Elbow 59 33.1 17 FKM 12 10 29.4 29.5 23.3
SSPL12-03-X SUS316 Fluorine Grease Spec Elbow 59 33.1 17 FKM 12 10 29.4 29.5 23.3
SSPL12-03-X-TP SUS316 Fluorine Grease Spec, Threaded Part: Seal Tape Spec Elbow 59 33.1 17 FKM 12 10 29.4 29.5 23.3
SSPL12-04 SUS316 Elbow 74 34.7 21 FKM 15 10 29.4 33 29.3 12
SSPL12-04-TP SUS316 Threaded Part: Seal Tape Spec Elbow 74 34.7 21 FKM 15 10 29.4 33 29.3
SSPL12-04-X SUS316 Fluorine Grease Spec Elbow 74 34.7 21 FKM 15 10 29.4 33 29.3
SSPL16-04 SUS316 Elbow 88 38.7 21 FKM 15 13 32.3 35 24 16
SSPL16-04-TP SUS316 Threaded Part: Seal Tape Spec Elbow 88 38.7 21 FKM 15 13 32.3 35 24
SSPL16-04-X SUS316 Fluorine Grease Spec Elbow 88 38.7 21 FKM 15 13 32.3 35 24
SSPL4-01 SUS316 Elbow 13 17.9 10 FKM 8 2.5 18.1 17 14.9 4
SSPL4-01-TP SUS316 Threaded Part: Seal Tape Spec Elbow 13 17.9 10 FKM 8 2.5 18.1 17 14.9
SSPL4-01-X SUS316 Fluorine Grease Spec Elbow 13 17.9 10 FKM 8 2.5 18.1 17 14.9
SSPL4-01-X-TP SUS316 Fluorine Grease Spec, Threaded Part: Seal Tape Spec Elbow 13 17.9 10 FKM 8 2.5 18.1 17 14.9
SSPL4-M5 SUS316 Elbow 12 17.7 8 FKM 3 2.4 19 15.8 14.9 4
SSPL4-M5-X SUS316 Fluorine Grease Spec Elbow 12 17.7 8 FKM 3 2.4 19 15.8 14.9
SSPL6-01 SUS316 Elbow 16 19.9 10 FKM 8 4 19.7 18 16.8 6
SSPL6-01-TP SUS316 Threaded Part: Seal Tape Spec Elbow 16 19.9 10 FKM 8 4 19.7 18 16.8
SSPL6-01-X SUS316 Fluorine Grease Spec Elbow 16 19.9 10 FKM 8 4 19.7 18 16.8
SSPL6-01-X-TP SUS316 Fluorine Grease Spec, Threaded Part: Seal Tape Spec Elbow 16 19.9 10 FKM 8 4 19.7 18 16.8
SSPL6-02 SUS316 Elbow 23 21.9 14 FKM 11 4 19.7 22 16.8 6
SSPL6-02-TP SUS316 Threaded Part: Seal Tape Spec Elbow 23 21.9 14 FKM 11 4 19.7 22 16.8
SSPL6-02-X SUS316 Fluorine Grease Spec Elbow 23 21.9 14 FKM 11 4 19.7 22 16.8
SSPL6-02-X-TP SUS316 Fluorine Grease Spec, Threaded Part: Seal Tape Spec Elbow 23 21.9 14 FKM 11 4 19.7 22 16.8
SSPL6-M5 SUS316 Elbow 14 20.1 8 FKM 3 2.4 20.1 17.2 16.8 6
SSPL6-M5-X SUS316 Fluorine Grease Spec Elbow 14 20.1 8 FKM 3 2.4 20.1 17.2 16.8
SSPL8-01 SUS316 Elbow 22 22.9 12 FKM 8 5 21.7 20 17.8 8
SSPL8-01-TP SUS316 Threaded Part: Seal Tape Spec Elbow 22 22.9 12 FKM 8 5 21.7 20 17.8
SSPL8-01-X SUS316 Fluorine Grease Spec Elbow 22 22.9 12 FKM 8 5 21.7 20 17.8
SSPL8-01-X-TP SUS316 Fluorine Grease Spec, Threaded Part: Seal Tape Spec Elbow 22 22.9 12 FKM 8 5 21.7 20 17.8
SSPL8-02 SUS316 Elbow 28 23.9 14 FKM 11 6 21.7 23.1 17.8 8
SSPL8-02-TP SUS316 Threaded Part: Seal Tape Spec Elbow 28 23.9 14 FKM 11 6 21.7 23.1 17.8
SSPL8-02-X SUS316 Fluorine Grease Spec Elbow 28 23.9 14 FKM 11 6 21.7 23.1 17.8
SSPL8-02-X-TP SUS316 Fluorine Grease Spec, Threaded Part: Seal Tape Spec Elbow 28 23.9 14 FKM 11 6 21.7 23.1 17.8
