PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
| Part No. |
Shape |
Material (Body) |
Tube O.D. (Ø) |
Operating Temperature Range (˚C) |
Dimension l (mm) |
Max. Operating Pressure (MPa) |
Dimension A (mm) |
Orifice Dia. (Ømm) |
Dimension B (mm) |
Dimension C (mm) |
Fluid |
Operating Vacuum Pressure |
| SPPC10-02SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
10 |
0～80 (no freezing) |
23.8 |
1.0(at0～20℃) |
11 |
8.5 |
29.8 |
Tube End: 20.7 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC10-03SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
10 |
0～80 (no freezing) |
23 |
1.0(at0～20℃) |
12 |
8.5 |
29.3 |
Tube End: 20.7 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC12-03SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
12 |
0～80 (no freezing) |
25.6 |
1.0(at0～20℃) |
12 |
11 |
31.9 |
Tube End: 23.3 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC12-04SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
12 |
0～80 (no freezing) |
25.7 |
1.0(at0～20℃) |
15 |
11 |
33.9 |
Tube End: 23.3 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC4-01SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
4 |
0～80 (no freezing) |
17 |
1.0(at0～20℃) |
8 |
3 |
21 |
Tube End: 14.9 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC4-02SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
4 |
0～80 (no freezing) |
15 |
1.0(at0～20℃) |
11 |
3 |
21 |
Tube End: 14.9 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC4-M3SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
4 |
0～80 (no freezing) |
17.6 |
1.0(at0～20℃) |
2.5 |
1.2 |
20.1 |
Tube End: 14.9 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC4-M5SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
4 |
0～80 (no freezing) |
17 |
1.0(at0～20℃) |
3 |
1.8 |
20 |
Tube End: 14.9 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC6-01SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
6 |
0～80 (no freezing) |
18.6 |
1.0(at0～20℃) |
8 |
4.6 |
22.6 |
Tube End: 17 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC6-02SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
6 |
0～80 (no freezing) |
18.5 |
1.0(at0～20℃) |
11 |
4.6 |
24.6 |
Tube End: 17 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC6-03SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
6 |
0～80 (no freezing) |
17.2 |
1.0(at0～20℃) |
12 |
4.6 |
23.6 |
Tube End: 17 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC6-M5SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
6 |
0～80 (no freezing) |
19.1 |
1.0(at0～20℃) |
3 |
1.8 |
22.1 |
Tube End: 17 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC8-01SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
8 |
0～80 (no freezing) |
23.9 |
1.0(at0～20℃) |
8 |
6 |
27.9 |
Tube End: 18.2 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |

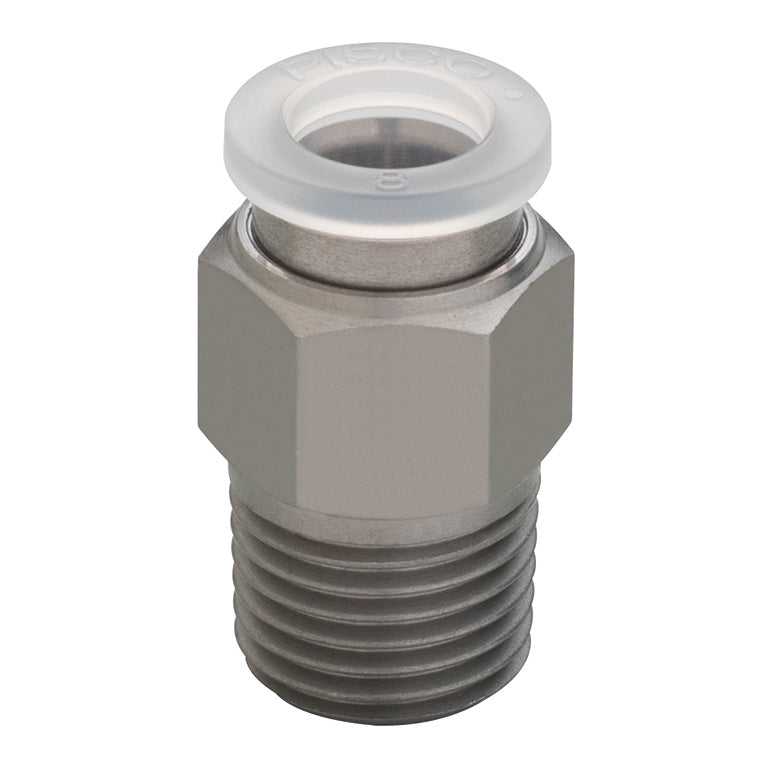

| SPPC8-02SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
8 |
0～80 (no freezing) |
20.6 |
1.0(at0～20℃) |
11 |
7 |
26.6 |
Tube End: 18.2 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
| SPPC8-03SP |
Straight |
Threaded Part: Corrosion-Resistant SUS303 Equivalent |
8 |
0～80 (no freezing) |
17.6 |
1.0(at0～20℃) |
12 |
7 |
23.9 |
Tube End: 18.2 |
Air, Water, Other Chemicals, etc. (conditional*1) |
-100kPa |
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
