Description

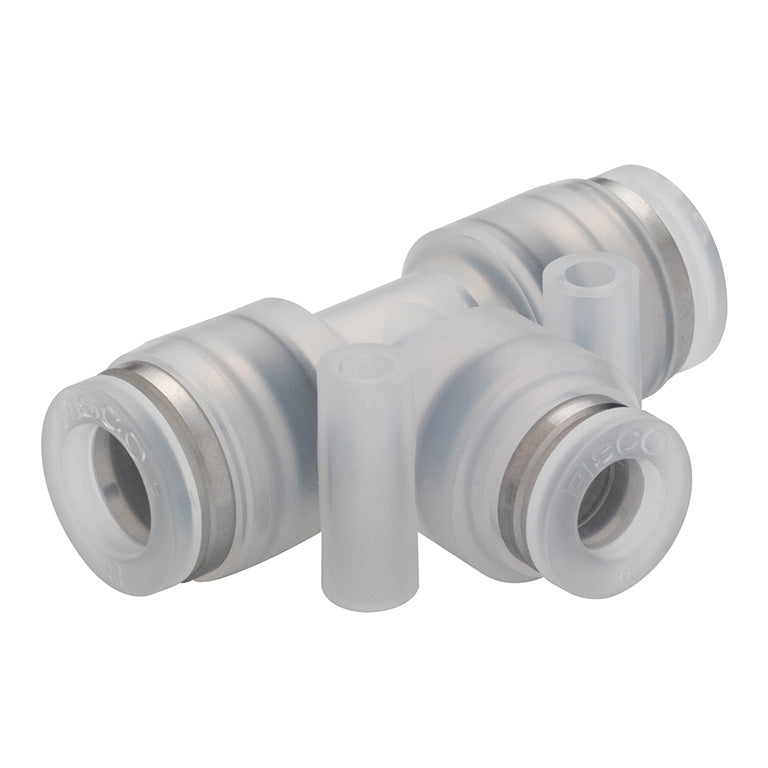

PISCO SPPEG — Tube Fitting PP / Corrosion-Resistant SUS303 Equivalent Reducing Union Tee, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Shape |
Tube O.D. (Ø) |
Operating Temperature Range (˚C) |
Max. Operating Pressure (MPa) |
Orifice Dia. (Ømm) |
Dimension B (mm) |
Dimension T (mm) |
Dimension D (Ømm) |
Fluid |
Dimension E1 (mm) |
Dimension E2 (mm) |
Operating Vacuum Pressure |
| SPPEG10-8 |
Reducing Union Tee |
10 |
0～80 (no freezing) |
1.0(at0～20℃) |
6.2 |
24.9 |
18.2 |
4.2 |
Air, Water, Other Chemicals, etc. (conditional*1) |
50.4 |
25.2 |
-100kPa |
| SPPEG12-10 |
Reducing Union Tee |
12 |
0～80 (no freezing) |
1.0(at0～20℃) |
8.1 |
28 |
21.7 |
4.2 |
Air, Water, Other Chemicals, etc. (conditional*1) |
56.8 |
28.4 |
-100kPa |
| SPPEG6-4 |
Reducing Union Tee |
6 |
0～80 (no freezing) |
1.0(at0～20℃) |
2.8 |
19.5 |
13.5 |
3.2 |
Air, Water, Other Chemicals, etc. (conditional*1) |
40.1 |
20.05 |
-100kPa |
| SPPEG8-6 |
Reducing Union Tee |
8 |
0～80 (no freezing) |
1.0(at0～20℃) |
4.3 |
22.3 |
15.6 |
3.2 |
Air, Water, Other Chemicals, etc. (conditional*1) |
44.4 |
22.2 |
-100kPa |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
