PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
| Part No. |
Shape |
Cover |
Mass (g) |
Type |
Operating Temperature Range (˚C) |
Dimension l (mm) |
Max. Operating Pressure (MPa) |
Dimension A (mm) |
Connection Thread |
Orifice Dia. (Ømm) |
Dimension B (mm) |
Fluid |
| KCF10-01 |
Female Straight |
with Cover |
34 |
Spatter-Resistant Type |
0~100 (no freezing) |
11 |
1 |
7 |
Rc1/8 |
8 |
32.2 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF10-02 |
Female Straight |
with Cover |
37 |
Spatter-Resistant Type |
0~100 (no freezing) |
13 |
1 |
9.5 |
Rc1/4 |
8.5 |
35.2 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF10-03 |
Female Straight |
with Cover |
45 |
Spatter-Resistant Type |
0~100 (no freezing) |
14 |
1 |
10.5 |
Rc3/8 |
8.5 |
36.2 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF10-04 |
Female Straight |
with Cover |
54 |
Spatter-Resistant Type |
0~100 (no freezing) |
17 |
1 |
13 |
Rc1/2 |
9 |
39.2 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF12-02 |
Female Straight |
with Cover |
57 |
Spatter-Resistant Type |
0~100 (no freezing) |
13.5 |
1 |
9.5 |
Rc1/4 |
11 |
37.8 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF12-03 |
Female Straight |
with Cover |
59 |
Spatter-Resistant Type |
0~100 (no freezing) |
14 |
1 |
10.5 |
Rc3/8 |
11 |
39.3 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF12-04 |
Female Straight |
with Cover |
68 |
Spatter-Resistant Type |
0~100 (no freezing) |
17 |
1 |
13 |
Rc1/2 |
11 |
42.3 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF4-01 |
Female Straight |
with Cover |
16 |
Spatter-Resistant Type |
0~100 (no freezing) |
10 |
1 |
7 |
Rc1/8 |
3 |
26.6 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF4-M5 |
Female Straight |
with Cover |
10 |
Spatter-Resistant Type |
0~100 (no freezing) |
8 |
1 |
4.5 |
M5×0.8 |
3 |
24.1 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF6-01 |
Female Straight |
with Cover |
18 |
Spatter-Resistant Type |
0~100 (no freezing) |
10 |
1 |
7 |
Rc1/8 |
5 |
28.5 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF6-02 |
Female Straight |
with Cover |
24 |
Spatter-Resistant Type |
0~100 (no freezing) |
13 |
1 |
9.5 |
Rc1/4 |
5 |
31.5 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF6-M5 |
Female Straight |
with Cover |
13 |
Spatter-Resistant Type |
0~100 (no freezing) |
9 |
1 |
5 |
M5×0.8 |
4.1 |
24.5 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF8-01 |
Female Straight |
with Cover |
20 |
Spatter-Resistant Type |
0~100 (no freezing) |
10 |
1 |
7 |
Rc1/8 |
7 |
29.2 |
Air, Water (conditional), Heat Transfer Oil (conditional) |

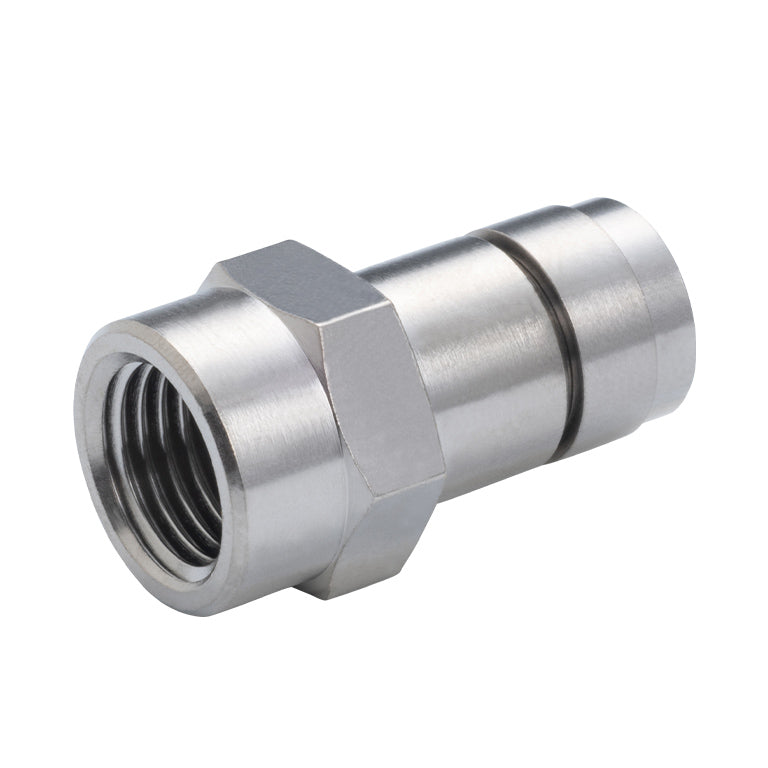

| KCF8-02 |
Female Straight |
with Cover |
26 |
Spatter-Resistant Type |
0~100 (no freezing) |
13 |
1 |
9.5 |
Rc1/4 |
7 |
32.2 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
| KCF8-03 |
Female Straight |
with Cover |
34 |
Spatter-Resistant Type |
0~100 (no freezing) |
14 |
1 |
10.5 |
Rc3/8 |
7 |
33.2 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
