Name: PISCO Vacuum Pad Metal Detector Type Fluorine Coating Pad Screw Set, VP20B (Part 2)
Brand: PISCO
SKU: VP20BDMSF3-FG-U10
Price: 20.76 USD

PISCO Vacuum Pad Metal Detector Type Fluorine Coating Pad Screw Set, VP20B (Part 2)

VendorPISCO

Description

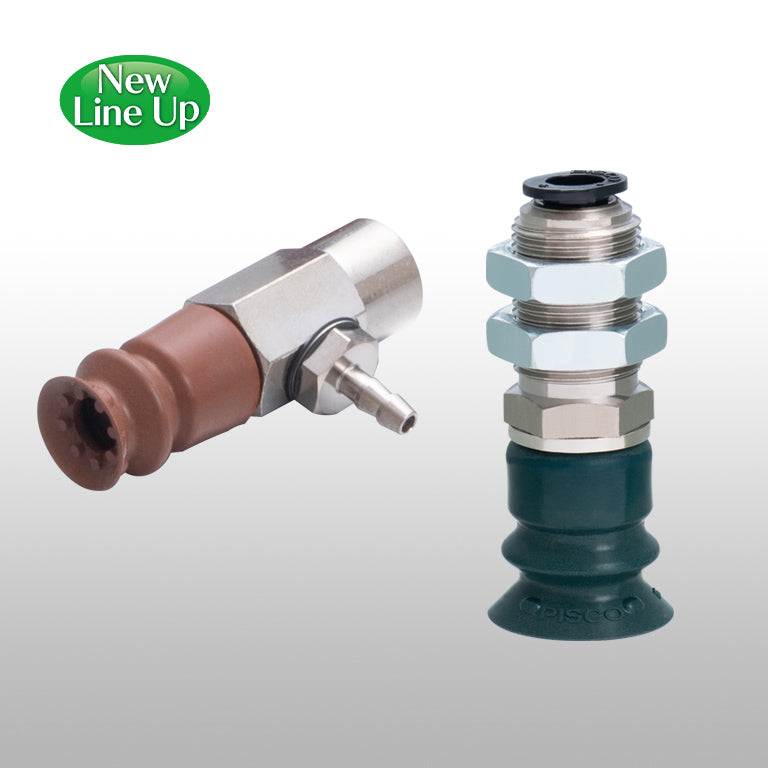

PISCO VP20B — Vacuum Pad Metal Detector Type Fluorine Coating Pad Screw Set, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

Genuine PISCO vacuum component
Select by pad diameter, material and mounting
Wide range of buffers and fittings

Specifications

Part No.	Material	Color	Surface Treatment	Identification	RoHS Directive (10 Substances)	Pad Dia. (Ømm)	Material (Pad)	Pad Shape	Hardness (°)	Connection Thread Size
VP20BDMSF3-FG-U10	Metal: Standard	Reddish Brown	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, without Ribs	Rubber: 30	NO.10-32UNF
VP20BDMSF3-FG-U10-S3	Metal: No copper-based metals in flow path	Reddish Brown	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, without Ribs	Rubber: 30	NO.10-32UNF
VP20BDMSF5-FG-M5	Metal: Standard	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, without Ribs	Rubber: 50	M6×1.0
VP20BDMSF5-FG-M5-S3	Metal: No copper-based metals in flow path	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, without Ribs	Rubber: 50	M5×0.8
VP20BDMSF5-FG-M6	Metal: Standard	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, without Ribs	Rubber: 50	M6×1.0
VP20BDMSF5-FG-M6-S3	Metal: No copper-based metals in flow path	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, without Ribs	Rubber: 50	M6×1.0
VP20BDMSF5-FG-U10	Metal: Standard	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, without Ribs	Rubber: 50	NO.10-32UNF
VP20BDMSF5-FG-U10-S3	Metal: No copper-based metals in flow path	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, without Ribs	Rubber: 50	NO.10-32UNF
VP20BDMSS3-FG-M5	Metal: Standard	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 30	M6×1.0
VP20BDMSS3-FG-M5-S3	Metal: No copper-based metals in flow path	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 30	M5×0.8
VP20BDMSS3-FG-M6	Metal: Standard	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 30	M6×1.0
VP20BDMSS3-FG-M6-S3	Metal: No copper-based metals in flow path	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 30	M6×1.0
VP20BDMSS3-FG-U10	Metal: Standard	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 30	NO.10-32UNF
VP20BDMSS3-FG-U10-S3	Metal: No copper-based metals in flow path	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 30	NO.10-32UNF
VP20BDMSS5-FG-M5	Metal: Standard	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 50	M6×1.0
VP20BDMSS5-FG-M5-S3	Metal: No copper-based metals in flow path	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 50	M5×0.8
VP20BDMSS5-FG-M6	Metal: Standard	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 50	M6×1.0
VP20BDMSS5-FG-M6-S3	Metal: No copper-based metals in flow path	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 50	M6×1.0
VP20BDMSS5-FG-U10	Metal: Standard	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 50	NO.10-32UNF
VP20BDMSS5-FG-U10-S3	Metal: No copper-based metals in flow path	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, without Ribs	Rubber: 50	NO.10-32UNF
VP20BEMSF3-FG-M5	Metal: Standard	Reddish Brown	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 30	M6×1.0
VP20BEMSF3-FG-M5-S3	Metal: No copper-based metals in flow path	Reddish Brown	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 30	M5×0.8
VP20BEMSF3-FG-M6	Metal: Standard	Reddish Brown	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 30	M6×1.0
VP20BEMSF3-FG-M6-S3	Metal: No copper-based metals in flow path	Reddish Brown	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 30	M6×1.0
VP20BEMSF3-FG-U10	Metal: Standard	Reddish Brown	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 30	NO.10-32UNF
VP20BEMSF3-FG-U10-S3	Metal: No copper-based metals in flow path	Reddish Brown	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 30	NO.10-32UNF
VP20BEMSF5-FG-M5	Metal: Standard	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 50	M6×1.0
VP20BEMSF5-FG-M5-S3	Metal: No copper-based metals in flow path	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 50	M5×0.8
VP20BEMSF5-FG-M6	Metal: Standard	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 50	M6×1.0
VP20BEMSF5-FG-M6-S3	Metal: No copper-based metals in flow path	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 50	M6×1.0
VP20BEMSF5-FG-U10	Metal: Standard	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 50	NO.10-32UNF
VP20BEMSF5-FG-U10-S3	Metal: No copper-based metals in flow path	Dark Green	Fluorine Coating	Display: SF	Compatibility	20	Metal-Detectable Silicone Iron Powder Spec	Bellows with Protrusions, with Ribs	Rubber: 50	NO.10-32UNF
VP20BEMSS3-FG-M5	Metal: Standard	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 30	M6×1.0
VP20BEMSS3-FG-M5-S3	Metal: No copper-based metals in flow path	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 30	M5×0.8
VP20BEMSS3-FG-M6	Metal: Standard	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 30	M6×1.0
VP20BEMSS3-FG-M6-S3	Metal: No copper-based metals in flow path	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 30	M6×1.0
VP20BEMSS3-FG-U10	Metal: Standard	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 30	NO.10-32UNF
VP20BEMSS3-FG-U10-S3	Metal: No copper-based metals in flow path	Brown	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 30	NO.10-32UNF
VP20BEMSS5-FG-M5	Metal: Standard	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 50	M6×1.0
VP20BEMSS5-FG-M5-S3	Metal: No copper-based metals in flow path	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 50	M5×0.8
VP20BEMSS5-FG-M6	Metal: Standard	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 50	M6×1.0
VP20BEMSS5-FG-M6-S3	Metal: No copper-based metals in flow path	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 50	M6×1.0
VP20BEMSS5-FG-U10	Metal: Standard	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 50	NO.10-32UNF
VP20BEMSS5-FG-U10-S3	Metal: No copper-based metals in flow path	Green	Fluorine Coating	Display: SS	Compatibility	20	Metal-Detectable Silicone SUS Spec	Bellows with Protrusions, with Ribs	Rubber: 50	NO.10-32UNF

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

Genuine PISCO product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
