Description

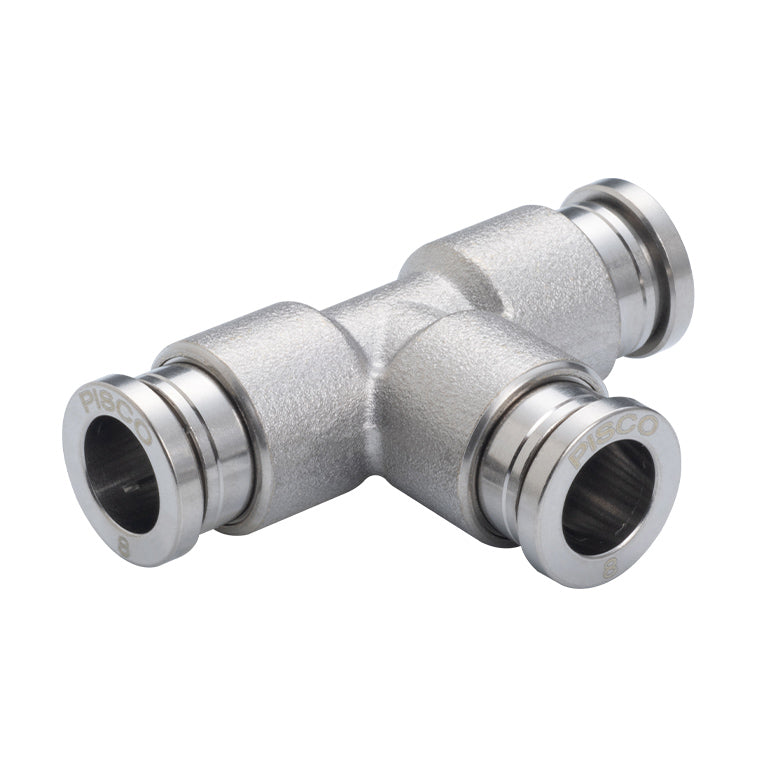

PISCO KE — Tube Fitting Brass Union Tee (without Cover), genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Material |
Shape |
Cover |
Mass (g) |
Type |
Operating Temperature Range (˚C) |
Max. Operating Pressure (MPa) |
Orifice Dia. (Ømm) |
Dimension B (mm) |
Dimension C (mm) |
Fluid |
Dimension E1 (mm) |
| KE1/2-1-F |
Seal Rubber: FKM |
Union Tee |
without Cover |
93 |
Spatter-Resistant Type |
0～150 (*conditional) (no freezing) |
1 |
9 |
30.1 |
Tube End: 23 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
60.2 |
| KE1/4-1-F |
Seal Rubber: FKM |
Union Tee |
without Cover |
26 |
Spatter-Resistant Type |
0～150 (*conditional) (no freezing) |
1 |
4 |
20.95 |
Tube End: 17.2 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
41.9 |
| KE3/8-1-F |
Seal Rubber: FKM |
Union Tee |
without Cover |
67 |
Spatter-Resistant Type |
0～150 (*conditional) (no freezing) |
1 |
8 |
27 |
Tube End: 20.9 |
Air, Water (conditional), Heat Transfer Oil (conditional) |
54 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
