Description

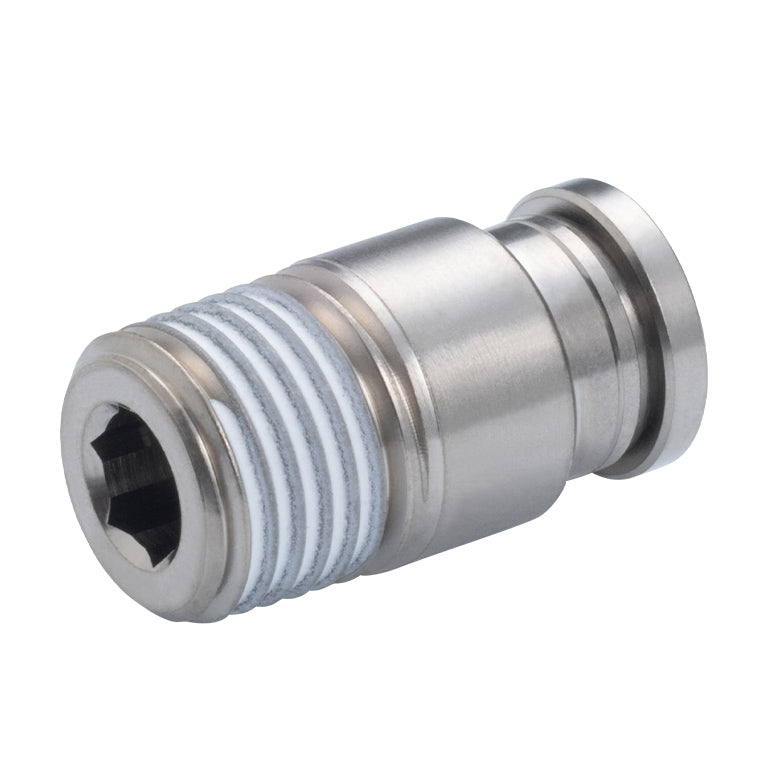

PISCO KOC — Tube Fitting Brass Hex Socket Straight (with Cover), genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Shape |
Cover |
Mass (g) |
Type |
Operating Temperature Range (˚C) |
Dimension l (mm) |
Max. Operating Pressure (MPa) |
Dimension A (mm) |
Connection Thread |
Orifice Dia. (Ømm) |
Dimension B (mm) |
Tube O.D. (Ømm) |
| KOC4-M6 |
Hex Socket Straight |
with Cover |
8 |
Spatter-Resistant Type |
0~100 (no freezing) |
19.6 |
1 |
3.8 |
M6×1 |
2.6 |
23.4 |
4×6 |
| KOC4-M6-F |
Hex Socket Straight |
with Cover |
8 |
Spatter-Resistant Type |
0～150 (*conditional) (no freezing) |
19.6 |
1 |
3.8 |
M6×1 |
2.6 |
23.4 |
4×6 |
| KOC4-M6P0.75 |
Hex Socket Straight |
with Cover |
8 |
Spatter-Resistant Type |
0~100 (no freezing) |
19.6 |
1 |
3.8 |
M6×0.75 |
2.6 |
23.4 |
4×6 |
| KOC4-M6P0.75-F |
Hex Socket Straight |
with Cover |
8 |
Spatter-Resistant Type |
0～150 (*conditional) (no freezing) |
19.6 |
1 |
3.8 |
M6×0.75 |
2.6 |
23.4 |
4×6 |
| KOC6-M6 |
Hex Socket Straight |
with Cover |
10 |
Spatter-Resistant Type |
0~100 (no freezing) |
21 |
1 |
3.8 |
M6×1 |
3.2 |
24.8 |
6×8 |
| KOC6-M6-F |
Hex Socket Straight |
with Cover |
10 |
Spatter-Resistant Type |
0～150 (*conditional) (no freezing) |
21 |
1 |
3.8 |
M6×1 |
3.2 |
24.8 |
6×8 |
| KOC6-M6P0.75 |
Hex Socket Straight |
with Cover |
10 |
Spatter-Resistant Type |
0~100 (no freezing) |
21 |
1 |
3.8 |
M6×0.75 |
3.2 |
24.8 |
6×8 |
| KOC6-M6P0.75-F |
Hex Socket Straight |
with Cover |
10 |
Spatter-Resistant Type |
0～150 (*conditional) (no freezing) |
21 |
1 |
3.8 |
M6×0.75 |
3.2 |
24.8 |
6×8 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
