Description

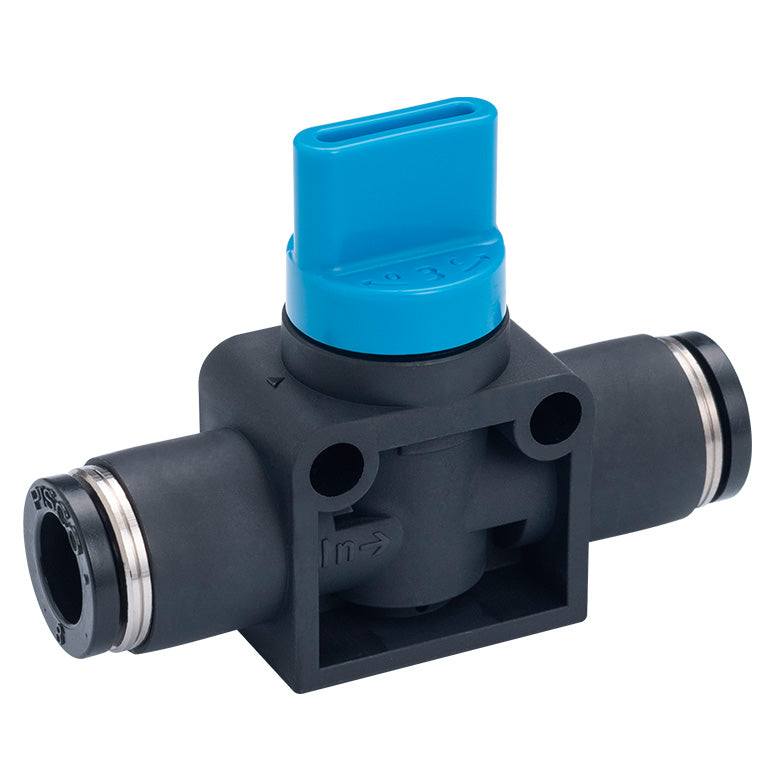

PISCO HV — Hand Valve Union Straight 3-Way Valve, genuine PISCO product.
Overview
PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.
Key Features
- Genuine PISCO flow control component
- Select by tube OD, thread and flow direction
- Compact design
Specifications
| Part No. |
Dimension B1 (mm) |
Fluid |
Dimension C2 (mm) |
Dimension P3 (Ømm) |
Dimension E1 (mm) |
Operating Pressure Range (MPa) |
Mass (g) |
Dimension E2 (mm) |
Dimension F1 (mm) |
Dimension B2 (mm) |
Dimension P1 (Ømm) |
Cross-Sectional Area (㎟) |
Color |
Dimension P2 (Ømm) |
Dimension F2 (mm) |
Operating Temperature Range (℃) |
Dimension C1 (mm) |
Shape |
Operating Vacuum Pressure (kPa) |
| HV1/4-1/4 |
|
Air |
17 |
|
|
0 ~ 0.9 |
|
40.5 |
|
26.4 |
12.5 |
8.1 |
|
|
|
0 ~ 60 |
17 |
|
|
| HV10-10 |
|
|
|
|
21 |
0 ~ 0.9 |
45 |
41 |
24 |
|
17.5 |
17.4 |
|
|
11 |
|
|
|
-100 |
| HV12-12 |
|
|
|
19.5 |
21 |
0 ~ 0.9 |
51 |
|
|
34.9 |
|
18.1 |
Standard Color (Resin Body Release Ring / Black Cap Lever / Blue) |
21 |
|
|
23.4 |
Union Straight |
-100 |
| HV4-4 |
25.8 |
|
14.9 |
|
|
0 ~ 0.9 |
|
|
18 |
25.8 |
|
|
Standard Color (Resin Body Release Ring / Black Cap Lever / Blue) |
10 |
|
0 ~ 60 |
14.9 |
|
|
| HV6-6 |
26.4 |
Air |
17 |
|
17 |
0 ~ 0.9 |
|
|
18 |
|
12.5 |
|
Standard Color (Resin Body Release Ring / Black Cap Lever / Blue) |
|
|
|
|
|
-100 |
| HV6-6W |
26.4 |
Air |
|
16.5 |
|
0 ~ 0.9 |
25 |
40.5 |
|
|
|
7.2 |
|
12.5 |
8 |
0 ~ 60 |
|
|
|
| HV8-8 |
27.7 |
|
|
|
17 |
|
28 |
40.5 |
|
|
|
8.7 |
Standard Color (Resin Body Release Ring / Black Cap Lever / Blue) |
15 |
8 |
|
|
|
|
| HV8-8W |
27.7 |
Air |
18.1 |
16.5 |
|
|
28 |
40.5 |
|
|
|
8.7 |
|
|
|
|
|
|
-100 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
