Description
PISCO PC — Mini Type Straight, genuine PISCO product.
Overview
Genuine PISCO product.
Key Features
- Genuine PISCO product
- Confirm the full part number against your existing part before ordering
Specifications
| Part No. |
Connection Thread |
Type |
Shape |
Operating Vacuum Pressure (kPa) |
Max. Operating Pressure (MPa) |
Dimension a (mm) |
Tube O.D. (mm) |
Width Across Flats H (mm) |
Connection Thread Type |
Color |
Packaging |
Dimension C (mm) |
Dimension B (mm) |
Dimension l (mm) |
Fluid |
Mass (g) |
Operating Temperature Range (℃) |
Cross-Sectional Area (㎟) |
Material (Metal Hood)/Finish |
| PC1/8-01M |
1/8 |
|
Straight |
|
1 |
8 |
|
10 |
|
|
Standard Packaging |
|
15.6 |
11.6 |
|
|
0 ~ 60 (no freezing) |
|
Brass (Electroless Nickel Plating) |
| PC3-01M-C |
1/8 |
|
Straight |
|
|
8 |
|
|
R |
Release Ring / Resin Body: Light Gray |
Clean Room Packaging |
|
|
11.6 |
Air |
6.7 |
|
2.9 |
Brass (Electroless Nickel Plating) |
| PC3-M3M |
M3X0.5 |
Mini Type |
|
-100 |
|
2.5 |
3 |
5.5 |
M |
|
|
|
13.1 |
10.6 |
|
|
0 ~ 60 (no freezing) |
|
Brass (Electroless Nickel Plating) |
| PC3-M5M |
|
Mini Type |
Straight |
|
|
3 |
3 |
8 |
M |
|
Standard Packaging |
10.9 |
15.6 |
|
|
3.4 |
|
3 |
Brass (Electroless Nickel Plating) |
| PC4-01M |
1/8 |
|
Straight |
-100 |
|
8 |
|
10 |
|
Release Ring / Resin Body: Black |
|
|
15.6 |
11.6 |
|
6.6 |
|
6.4 |
Brass (Electroless Nickel Plating) |
| PC4-01MC |
|
|
|
|
1 |
|
4 |
10 |
|
Release Ring / Resin Body: Light Gray |
Clean Room Packaging |
|
15.6 |
11.6 |
Air |
6.6 |
|
|
Brass (Electroless Nickel Plating) |
| PC4-M3M |
M3X0.5 |
Mini Type |
Straight |
-100 |
|
2.5 |
4 |
8 |
|
Release Ring / Resin Body: Black |
|
|
15.1 |
|
|
|
0 ~ 60 (no freezing) |
0.9 |
|
| PC4-M5M |
|
Mini Type |
Straight |
-100 |
1 |
3 |
4 |
8 |
|
Release Ring / Resin Body: Black |
|
|
|
|
|
3.2 |
0 ~ 60 (no freezing) |
3.8 |
Brass (Electroless Nickel Plating) |
| PC4-M6M |
|
Mini Type |
Straight |
|
|
|
4 |
8 |
M |
|
|
10.9 |
16.6 |
12.7 |
Air |
3.6 |
|
|
Brass (Electroless Nickel Plating) |
| PC4-M6MW |
|
Mini Type |
Straight |
-100 |
|
|
|
|
M |
Release Ring / Resin Body: Light Gray |
Standard Packaging |
|
|
12.7 |
|
3.6 |
|
6.3 |
Brass (Electroless Nickel Plating) |

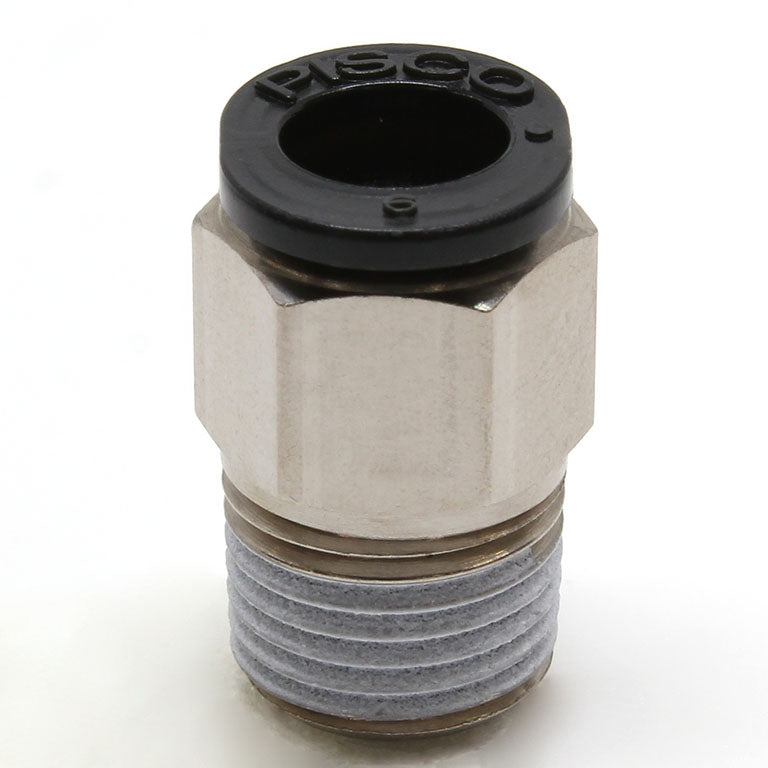

| PC6-01M |
1/8 |
|
|
-100 |
|
|
6 |
10 |
R |
Release Ring / Resin Body: Black |
|
11.7 |
|
|
Air |
6 |
|
6.3 |
Brass (Electroless Nickel Plating) |
| PC6-01MW |
1/8 |
Mini Type |
Straight |
|
1 |
8 |
|
|
R |
Release Ring / Resin Body: Light Gray |
|
|
17.6 |
|
|
6 |
|
6.3 |
|
| PC6-M5M |
M5X0.8 |
Mini Type |
Straight |
|
1 |
|
6 |
10 |
|
|
Standard Packaging |
|
|
14 |
|
|
|
3.6 |
Brass (Electroless Nickel Plating) |
| PC6-M6M |
|
Mini Type |
|
|
1 |
|
|
10 |
|
|
Standard Packaging |
11.7 |
18 |
14.1 |
Air |
4.8 |
|
6.3 |
|
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
