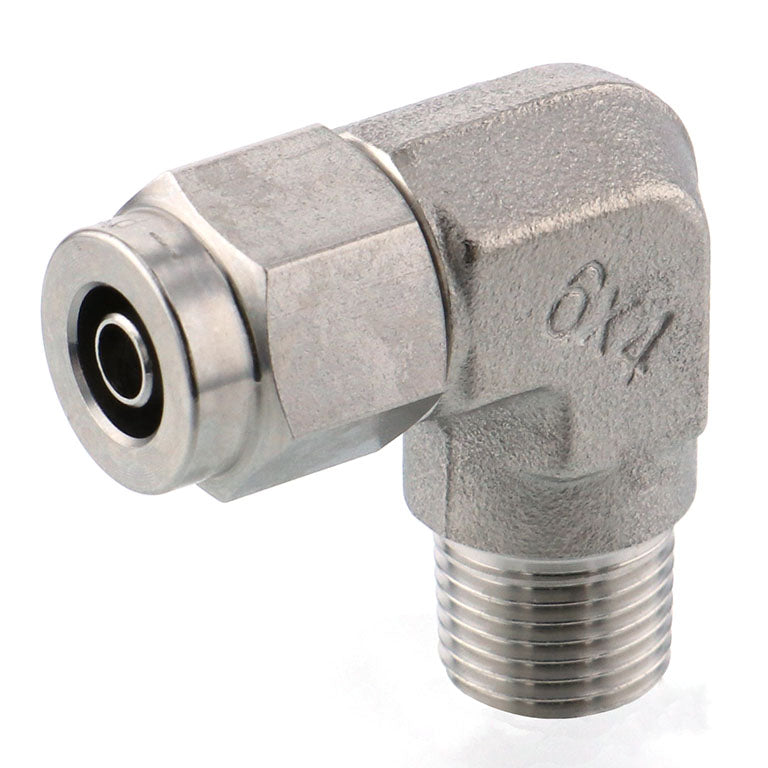

PISCO NSL — SUS316 Compression Fitting Elbow, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Connection Thread |
Max. Operating Pressure (MPa) |
Mass (g) |
Dimension E1 (mm) |
Dimension E2 (mm) |
Operating Temperature Range (℃) |
RoHS Regulation |
Seal |
Width Across Flats H1 (mm) |
Dimension B (mm) |
Dimension a (mm) |
Dimension C (mm) |
Orifice Dia. (Ømm) |
Dimension l1 (mm) |
Cross-Sectional Area (㎟) |
Dimension l2 (mm) |
Tube I.D. (Ømm) |
Dimension E3 (mm) |
Operating Vacuum Pressure (kPa) |
Tube O.D. (mm) |
Shape |
Material |
Connection Thread Type |
Fluid |
Width Across Flats H2 (mm) |
Type |
| NSL0420-01 |
1/8 |
Per tube max. operating pressure. |
|
|
|
|
|
|
10 |
|
8 |
|
1.4 |
|
0.7 |
21 |
|
|
|
4 |
Elbow |
|
R |
Air, Water, Other |
|
Corrosion-Resistant Type |
| NSL0640-01 |
1/8 |
|
28 |
27.9 |
|
Depends on tube specifications (no freezing). |
10 Substances Compliant |
|
|
|
|
6 |
|
|
5.5 |
21 |
|
|
|
6 |
|
SUS316 |
|
Air, Water, Other |
12 |
|
| NSL0640-02 |
1/4 |
Per tube max. operating pressure. |
|
30.1 |
|
Depends on tube specifications (no freezing). |
|
|
12 |
|
11 |
|
3 |
|
|
|
|
11.5 |
-100 |
|
Elbow |
SUS316 |
|
|
|
Corrosion-Resistant Type |
| NSL0860-02 |
1/4 |
Per tube max. operating pressure. |
59 |
34.8 |
25 |
|
10 Substances Compliant |
|
|
|
11 |
7 |
|
|
|
25 |
|
|
|
|
|
SUS316 |
|
Air, Water, Other |
17 |
|
| NSL1210-03 |
|
Per tube max. operating pressure. |
|
40 |
|
Depends on tube specifications (no freezing). |
|
|
19 |
|
12 |
9 |
|
33.6 |
|
29 |
|
|
-100 |
|
|
SUS316 |
R |
|
19 |
|
| NSL1290-03 |
3/8 |
|
91 |
|
29 |
|
|
|
19 |
|
12 |
|
|
|
30 |
29 |
9 |
16.5 |
|
12 |
Elbow |
|
|
|
|
|
| NSL1611-03 |
|
Per tube max. operating pressure. |
89 |
45.3 |
|
|
|
without Seal Tape |
|
|
14 |
9.5 |
|
38.9 |
53 |
32 |
11 |
|
|
|
Elbow |
|
|
|
23 |
|
| NSL1613-04 |
|
|
130 |
45.3 |
|
|
6 Substances Compliant |
|
|
45.3 |
17 |
9.5 |
11.5 |
|
|
|
13 |
18 |
|
16 |
|
SUS316 |
R |
|
|
|
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
