Description

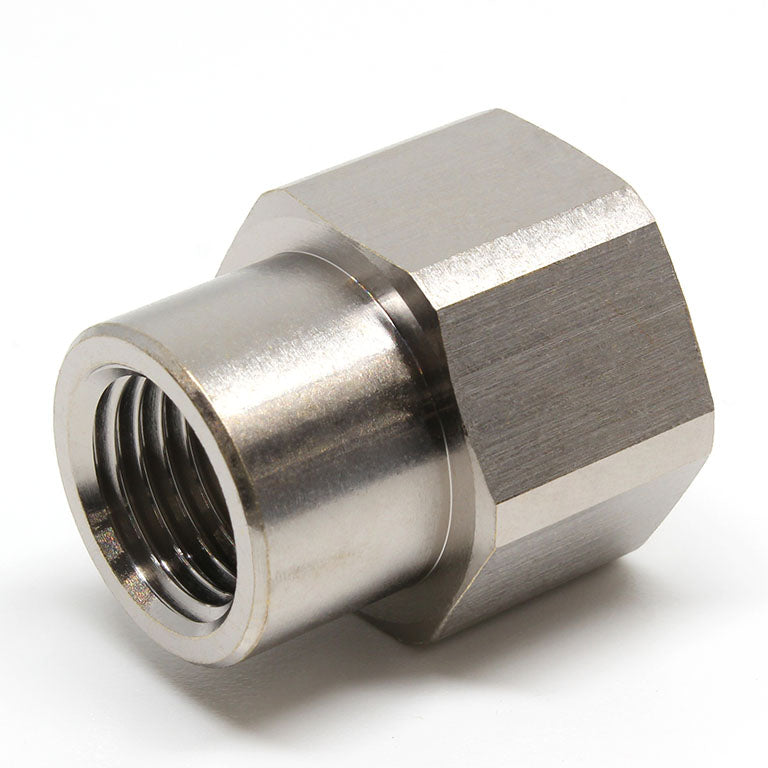

PISCO PFF0 — Reducing Socket, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Cross-Sectional Area (㎟) |
Shape |
Max. Operating Pressure (MPa) |
Operating Vacuum Pressure (kPa) |
Operating Temperature Range (℃) |
Connection Thread Type |
Dimension B (mm) |
Orifice Dia. (Ømm) |
Width Across Flats H (mm) |
Fluid |
Connection Thread |
Dimension A1 (mm) |
Size A2 (mm) |
Dimension P (Ømm) |
Type |
Mass (g) |
Dimension l (mm) |
Packaging |
| PFF01-M5 |
5.3 |
|
1 |
-100 |
|
RcXM |
|
4.2 |
|
Air, Water (conditional) |
|
8 |
5 |
|
Standard Type |
12 |
7 |
|
| PFF02-01 |
22.1 |
|
1 |
|
0 ~ 60 (no freezing) |
RcXRc |
|
6.5 |
|
|
1 / 4X1 / 8 |
11 |
|
14 |
Standard Type |
23 |
8 |
|
| PFF03-01 |
28.8 |
Reducing Socket |
1 |
|
0 ~ 60 (no freezing) |
|
22 |
|
21 |
Air, Water (conditional) |
|
12 |
|
14 |
Standard Type |
|
8 |
Standard Packaging |
| PFF03-02 |
|
Reducing Socket |
1 |
|
0 ~ 60 (no freezing) |
RcXRc |
25 |
|
21 |
Air, Water (conditional) |
3 / 8X1 / 4 |
12 |
|
17 |
|
|
11 |
Standard Packaging |
| PFF04-02 |
|
Reducing Socket |
1 |
-100 |
|
|
30 |
9 |
24 |
|
|
15 |
11 |
17 |
Standard Type |
51 |
11 |
|
| PFF04-03 |
89.8 |
Reducing Socket |
1 |
-100 |
0 ~ 60 (no freezing) |
|
33 |
12 |
24 |
|
|
|
|
21 |
|
|
14 |
Standard Packaging |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
