Description

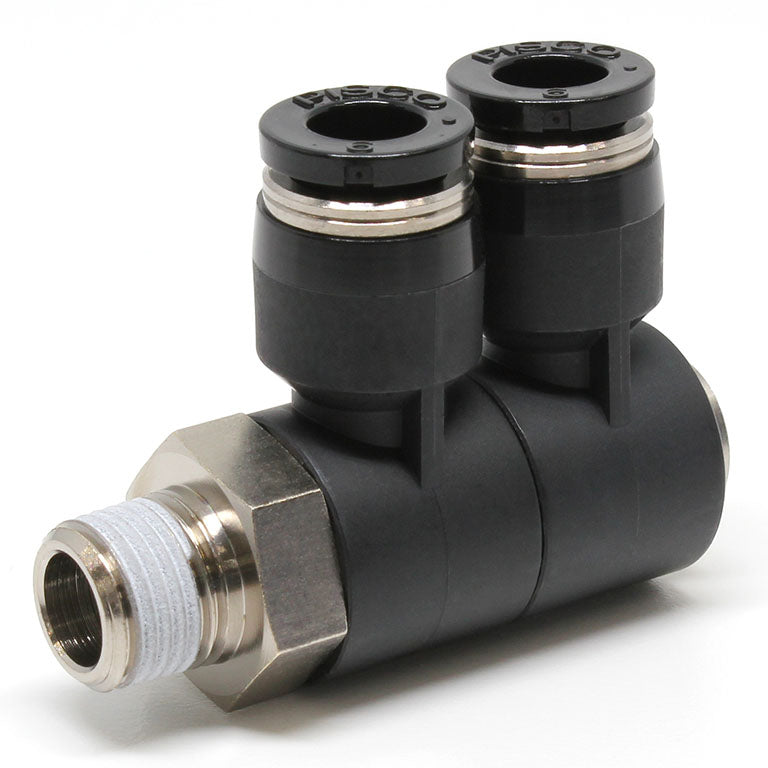

PISCO PHW — Double Universal Elbow, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Orifice Dia. (Ømm) |
Packaging |
Fluid |
Tube O.D. (mm) |
Max. Operating Pressure (MPa) |
Operating Temperature Range (℃) |
Type |
Color |
Connection Thread Type |
Mass (g) |
Shape |
Material |
Operating Vacuum Pressure (kPa) |
Connection Thread |
Material (Metal Hood)/Finish |
| PHW10-02 |
7.5 |
Standard Packaging |
|
10 |
1 |
|
Standard Type |
Release Ring / Resin Body: Black |
R |
|
Double Universal Elbow |
|
-100 |
1/4 |
Brass (Electroless Nickel Plating) |
| PHW10-03 |
7.5 |
|
Air, Water (conditional) |
10 |
|
0 ~ 60 (no freezing) |
Standard Type |
Release Ring / Resin Body: Black |
R |
83 |
Double Universal Elbow |
|
-100 |
3/8 |
|
| PHW6-01 |
4.1 |
Standard Packaging |
|
6 |
1 |
|
Standard Type |
Release Ring / Resin Body: Black |
R |
|
Double Universal Elbow |
|
-100 |
1/8 |
Brass (Electroless Nickel Plating) |
| PHW6-02 |
4.1 |
|
|
6 |
1 |
|
|
Release Ring / Resin Body: Black |
R |
34 |
Double Universal Elbow |
Release Ring / POM Resin Body / PBT |
-100 |
1/4 |
Brass (Electroless Nickel Plating) |
| PHW8-02 |
|
Standard Packaging |
Air, Water (conditional) |
8 |
1 |
0 ~ 60 (no freezing) |
Standard Type |
Release Ring / Resin Body: Black |
|
47 |
|
|
-100 |
1/4 |
Brass (Electroless Nickel Plating) |
| PHW8-04 |
6 |
Standard Packaging |
Air, Water (conditional) |
8 |
1 |
0 ~ 60 (no freezing) |
Standard Type |
Release Ring / Resin Body: Black |
|
87 |
|
|
|
1/2 |
Brass (Electroless Nickel Plating) |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
