Description

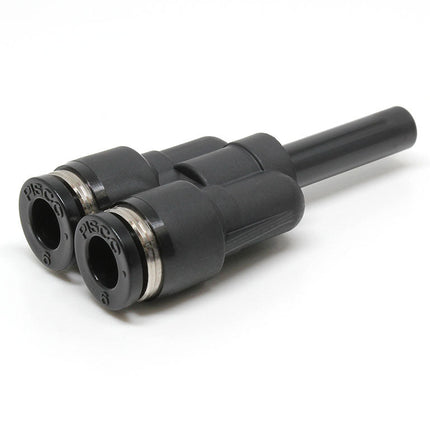

PISCO PYJ — Branch Union Y, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Fluid |
Dimension J (mm) |
Tube O.D. (mm) |
Orifice Dia. (Ømm) |
Dimension C (mm) |
Type |
Dimension P1 (Ømm) |
Mass (g) |
Operating Temperature Range (℃) |
Dimension D (Ømm) |
Dimension E (mm) |
Dimension F (mm) |
Packaging |
Cross-Sectional Area (㎟) |
Dimension P2 (Ømm) |
Color |
Operating Vacuum Pressure (kPa) |
Material (Metal Hood)/Finish |
Dimension B (mm) |
Shape |
| PYJ10 |
Air, Water (conditional) |
|
10 |
|
20.2 |
|
17.5 |
|
|
|
24 |
19.5 |
|
27 |
18 |
|
-100 |
|
63.2 |
Branch Union Y |
| PYJ12 |
Air, Water (conditional) |
|
|
|
23.4 |
Standard Type |
|
31 |
|
4.5 |
|
|
|
42 |
21.5 |
|
-100 |
|
71.3 |
Branch Union Y |
| PYJ6 |
Air, Water (conditional) |
|
6 |
3.9 |
17 |
|
|
|
0 ~ 60 (no freezing) |
|
|
|
Standard Packaging |
7.5 |
|
Release Ring / Resin Body: Black |
-100 |
Brass (Electroless Nickel Plating) |
|
Branch Union Y |
| PYJ8 |
|
14 |
8 |
5.9 |
18.1 |
Standard Type |
|
|
0 ~ 60 (no freezing) |
3.2 |
|
17.2 |
Standard Packaging |
|
13 |
Release Ring / Resin Body: Black |
|
|
|
Branch Union Y |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
