Description

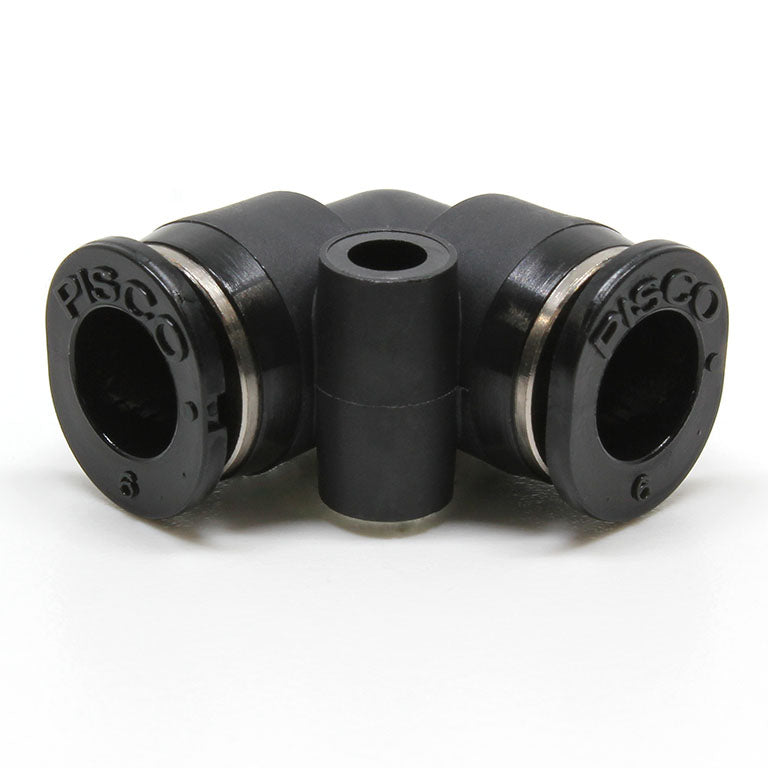

PISCO PV — Mini Type Union Elbow, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Mass (g) |
Dimension C (mm) |
Max. Operating Pressure (MPa) |
Dimension P (Ømm) |
RoHS Regulation |
Color |
Fluid |
Operating Temperature Range (℃) |
Cross-Sectional Area (㎟) |
Tube O.D. (mm) |
Type |
Dimension E (mm) |
Packaging |
Dimension F (mm) |
Operating Vacuum Pressure (kPa) |
| PV3M |
1.2 |
|
1 |
|
10 Substances Compliant |
Release Ring / Resin Body: Black |
Air |
|
|
3 |
Mini Type |
10.8 |
Standard Packaging |
4.5 |
-100 |
| PV4M |
2.3 |
11 |
|
8 |
|
Release Ring / Resin Body: Black |
Air |
0 ~ 60 (no freezing) |
|
|
Mini Type |
13.1 |
Standard Packaging |
5.6 |
-100 |
| PV6M |
|
11.6 |
1 |
10.5 |
|
Release Ring / Resin Body: Black |
|
|
9 |
6 |
Mini Type |
15 |
Standard Packaging |
6.6 |
-100 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
