Description
PISCO PSC — Stop Fitting Straight, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Dimension l (mm) |
Dimension a (mm) |
Type |
Dimension P (Ømm) |
Dimension B (mm) |
Max. Operating Pressure (MPa) |
Tube O.D. (mm) |
Cross-Sectional Area (㎟) |
Width Across Flats H (mm) |
Mass (g) |
Shape |
Connection Thread Type |
Fluid |
Operating Vacuum Pressure (kPa) |
Dimension C (mm) |
Operating Temperature Range (℃) |
Release Ring Dimension (mm) |
| PSC4-M5M |
25.4 |
3 |
Stop Valve Built-in Type |
8 |
28.4 |
|
4 |
|
8 |
|
Straight |
M |
|
-100 |
12.1 |
|
7.8X9.8 |

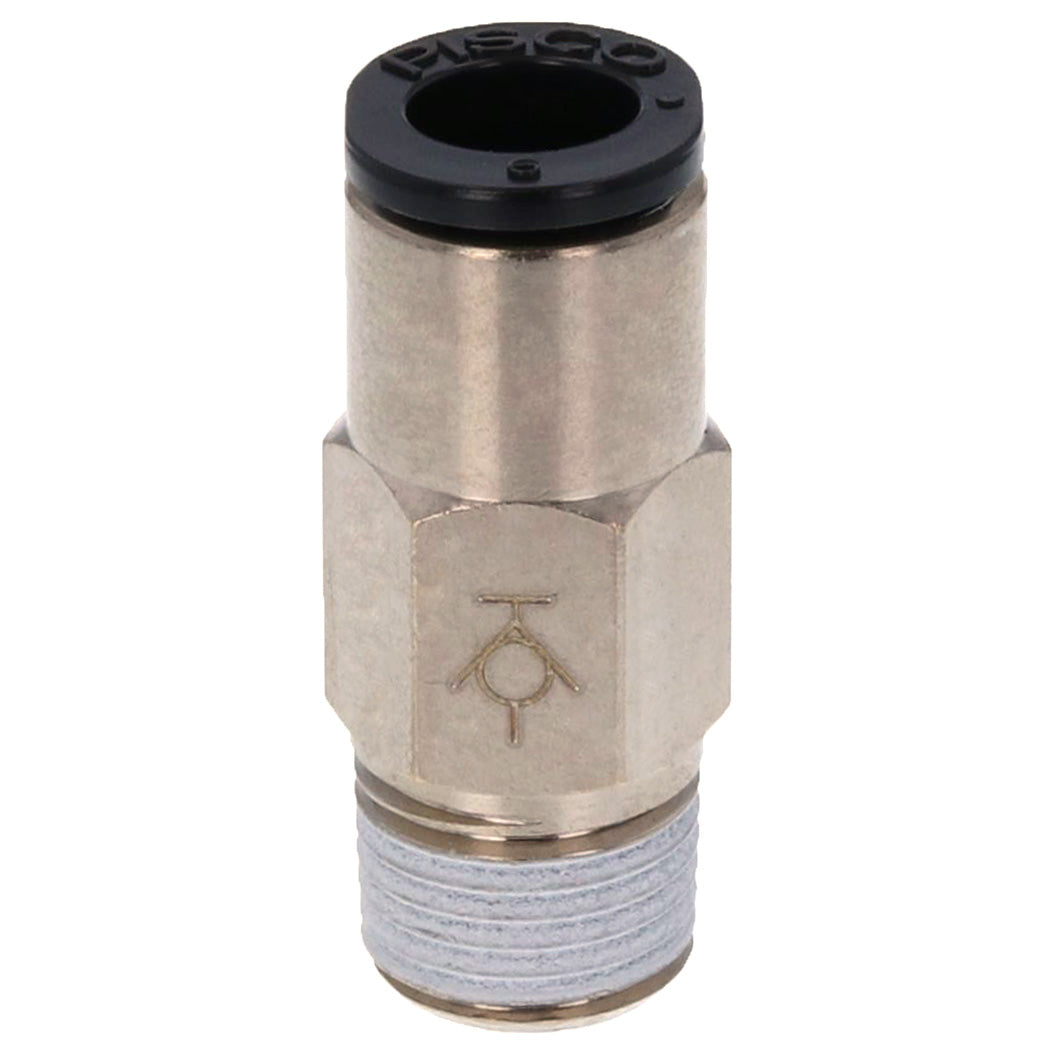

| PSC6-01M |
22.9 |
8 |
|
10 |
26.9 |
|
|
7.3 |
10 |
|
Straight |
R |
Air |
|
13.4 |
0 ~ 60 (no freezing) |
9.8X11.8 |
| PSC6-02M |
20.9 |
|
Stop Valve Built-in Type |
|
26.9 |
0.9 |
6 |
7.3 |
|
22 |
Straight |
R |
Air |
-100 |
|
|
9.8X11.8 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
