Description

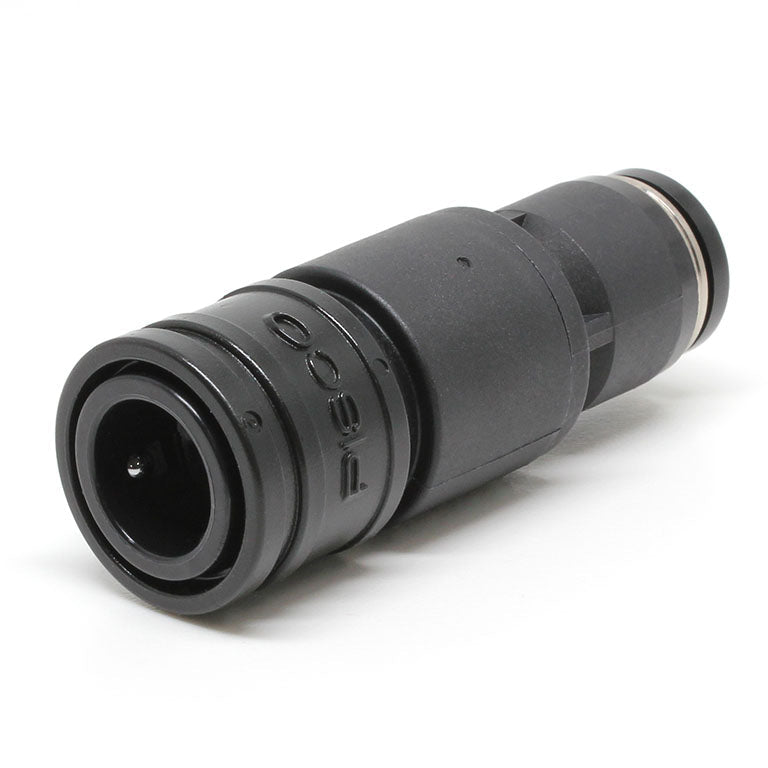

PISCO CPS15 — Light Coupling Socket Straight with Push-to-Connect Fitting, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Series |
Cross-Sectional Area (㎟) |
Dimension B (mm) |
Color |
Mass (g) |
Tube O.D. (mm) |
Max. Operating Pressure (MPa) |
Fluid |
Dimension C (mm) |
Type |
Operating Vacuum Pressure (kPa) |
Operating Temperature Range (℃) |
RoHS Regulation |
Shape |
| CPS15-10B |
15 Series |
18 |
54 |
Black |
17 |
10 |
|
Air |
20.2 |
Separable Type |
|
0 ~ 60 (no freezing) |
10 Substances Compliant |
Straight |
| CPS15-10W |
15 Series |
18.0 |
54 |
Light Gray |
17 |
10 |
|
Air |
20.2 |
Separable Type |
-100 |
0 ~ 60 (no freezing) |
|
|
| CPS15-6B |
15 Series |
|
49.8 |
Black |
13 |
6 |
0.9 |
|
16.8 |
Separable Type |
-100 |
0 ~ 60 (no freezing) |
|
Straight |
| CPS15-6W |
15 Series |
|
|
Light Gray |
13 |
6 |
0.9 |
Air |
16.8 |
Separable Type |
-100 |
0 ~ 60 (no freezing) |
|
Straight |
| CPS15-8B |
15 Series |
18 |
|
Black |
14 |
8 |
|
Air |
18.1 |
Separable Type |
-100 |
0 ~ 60 (no freezing) |
10 Substances Compliant |
Straight |
| CPS15-8W |
15 Series |
18.0 |
50.7 |
Light Gray |
14 |
8 |
|
Air |
18.1 |
Separable Type |
-100 |
|
|
Straight |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
