Description

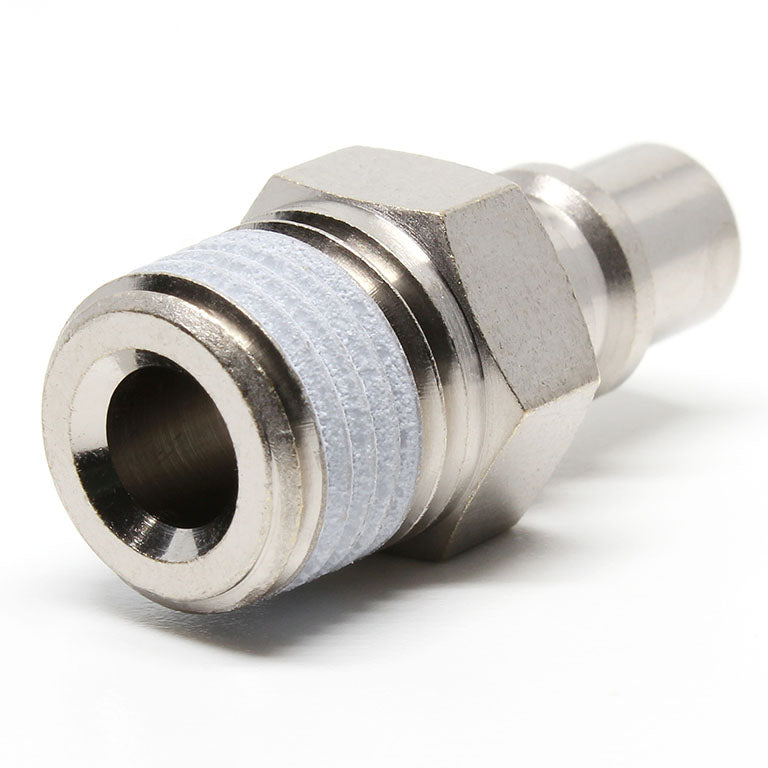

PISCO CPP15 — Light Coupling Plug Straight Screw Type, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Dimension a (mm) |
Dimension l (mm) |
Color |
Cross-Sectional Area (㎟) |
Shape |
Connection Thread |
Width Across Flats H (mm) |
Series |
Max. Operating Pressure (MPa) |
Dimension B (mm) |
Operating Temperature Range (℃) |
Fluid |
Type |
Operating Vacuum Pressure (kPa) |
Mass (g) |
Connection Thread Type |
| CPP15-01 |
8 |
25 |
|
23 |
Straight |
|
14 |
|
0.9 |
29 |
0 ~ 60 (no freezing) |
Air |
|
|
14 |
R |
| CPP15-02 |
|
26 |
|
|
Straight |
1/4 |
14 |
15 Series |
0.9 |
32 |
0 ~ 60 (no freezing) |
Air |
Separable Type Standard Type |
|
20 |
R |
| CPP15-03 |
12 |
26.7 |
Black |
23 |
Straight |
3/8 |
17 |
|
|
|
0 ~ 60 (no freezing) |
Air |
Separable Type Standard Type |
-100 |
33 |
|
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
