Description

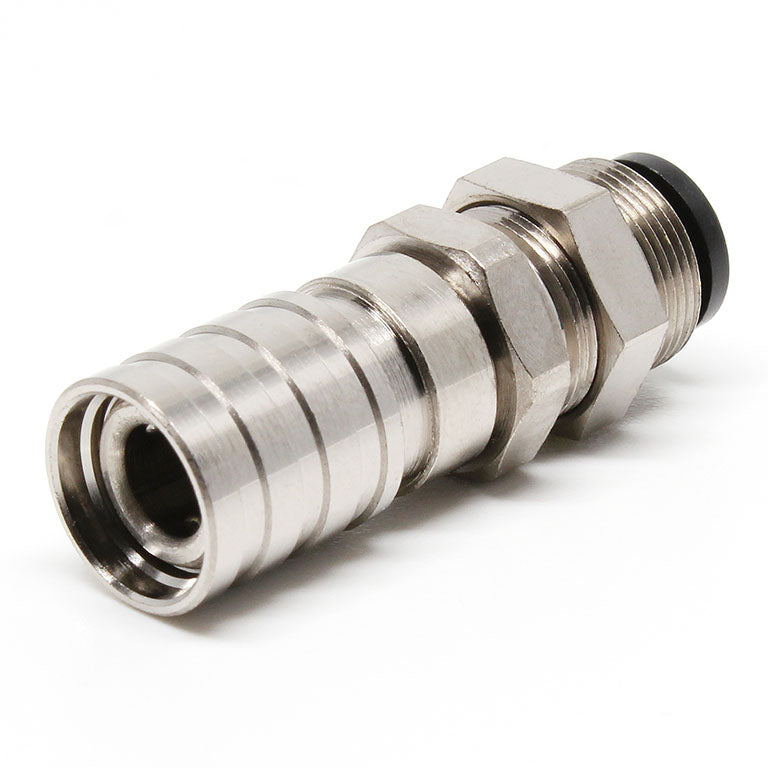

PISCO CPSE — Light Coupling Socket Bulkhead Straight with Push-to-Connect Fitting, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Series |
Dimension a (mm) |
Dimension B (mm) |
Operating Vacuum Pressure (kPa) |
Cross-Sectional Area (㎟) |
Dimension P (Ømm) |
Width Across Flats H (mm) |
Type |
Shape |
Mass (g) |
Fluid |
RoHS Regulation |
Tube O.D. (mm) |
Max. Operating Pressure (MPa) |
Size M (mm) |
Dimension g (mm) |
| CPSE3M-4 |
|
10.9 |
29.7 |
|
3.3 |
9.5 |
10 |
Separable Type |
Straight |
|
Air, Water (conditional) |
|
4 |
0.9 |
|
3 |
| CPSE7M-6 |
E3 · E7 Series |
|
|
-100 |
7.7 |
11.5 |
14 |
Separable Type |
Straight |
18 |
|
10 Substances Compliant |
|
0.9 |
M12X1 |
4 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
