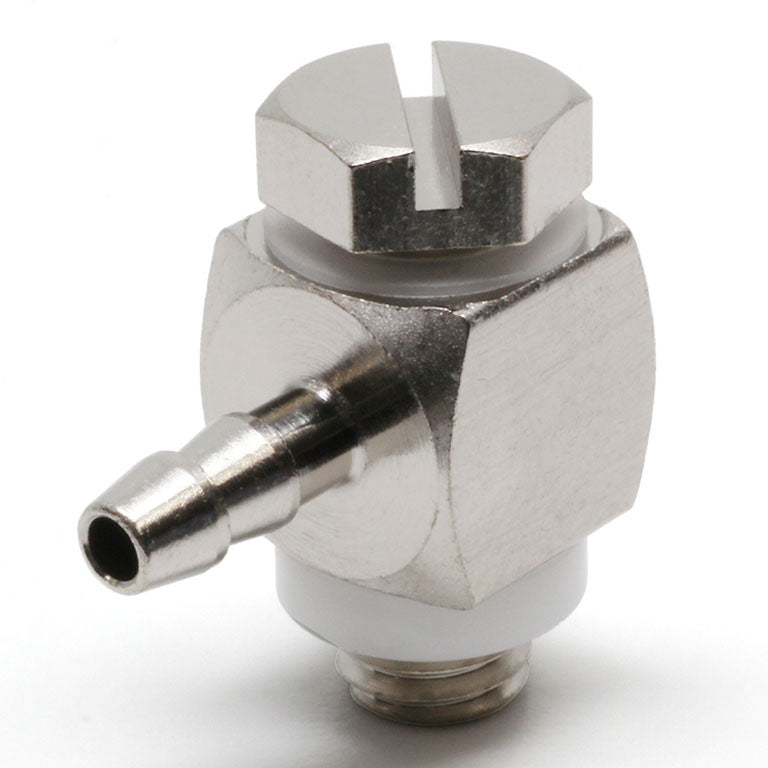

PISCO LH — Minimal Fitting Minimal Universal Elbow, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Dimension F (mm) |
Dimension l2 (mm) |
Cross-Sectional Area (㎟) |
Tube O.D. (mm) |
Max. Operating Pressure (MPa) |
Dimension a (mm) |
Dimension E (mm) |
Dimension l1 (mm) |
Operating Vacuum Pressure (kPa) |
Tube I.D. (Ømm) |
Operating Temperature Range (℃) |
Width Across Flats H (mm) |
Connection Thread |
Packaging |
Dimension C (mm) |
Material (Metal Hood)/Finish |
Fluid |
Type |
RoHS Regulation |
Shape |
Material (Gasket) |
Orifice Dia. (Ømm) |
| LH-0320-M3 |
|
4.2 |
0.5 |
|
0.5; 0.4 with Vacuum Tube (UD) |
2.4 |
|
9.1 |
|
2 |
0 ~ 50 (no freezing) |
5.5 |
M3X0.5 |
|
|
Brass (Electroless Nickel Plating) |
|
|
|
Universal Elbow |
|
1 |
| LH-0320-M5 |
8 |
|
0.8 |
3 |
|
|
10 |
12.6 |
-100 |
2 |
0 ~ 50 (no freezing) |
|
|
|
6 |
|
|
Barb Type |
10 Substances Compliant |
|
|
1.2 |
| LH-0425-M3 |
|
4.2 |
0.5 |
4 |
0.5; 0.4 with Vacuum Tube (UD) |
|
9.8 |
9.1 |
-100 |
2.5 |
|
5.5 |
|
Standard Packaging |
|
|
|
Barb Type |
|
|
POM |
|
| LH-0425-M5 |
|
5.9 |
1.2 |
|
0.5; 0.4 with Vacuum Tube (UD) |
|
11 |
12.6 |
|
|
|
7 |
|
Standard Packaging |
7 |
|
|
Barb Type |
10 Substances Compliant |
|
POM |
1.6 |
| LH-0640-M5 |
8 |
5.9 |
1.5 |
6 |
0.5; 0.4 with Vacuum Tube (UD) |
3.4 |
|
12.6 |
|
4 |
|
|
|
|
7 |
|
Air |
Barb Type |
|
|
POM |
|
